In traditional web applications, the client (browser) initiates the communication with the server by requesting a page. The server then processes the request and sends the HTML of the page to the client. In subsequent interactions with the page –e.g. the user navigates to a link or submits a form with data– a new request is sent to the server, and the flow starts again: the server processes the request and sends a new page to the browser in response to the new action requested by the client.
In Single-Page Applications (SPAs) the entire page is loaded in the browser after the initial request, but subsequent interactions take place through Ajax requests. This means that the browser has to update only the portion of the page that has changed; there is no need to reload the entire page. The SPA approach reduces the time taken by the application to respond to user actions, resulting in a more fluid experience.
The architecture of a SPA involves certain challenges that are not present in traditional web applications. However, emerging technologies like ASP.NET Web API, JavaScript frameworks like AngularJS and new styling features provided by CSS3 make it really easy to design and build SPAs.
In this hand-on lab, you will take advantage of those technologies to implement Geek Quiz, a trivia website based on the SPA concept. You will first implement the service layer with ASP.NET Web API to expose the required endpoints to retrieve the quiz questions and store the answers. Then, you will build a rich and responsive UI using AngularJS and CSS3 transformation effects.
In order to run the exercises in this hands-on lab, you will need to set up your environment first.
Open Windows Explorer and browse to the lab’s Source folder.
Right-click on Setup.cmd and select Run as administrator to launch the setup process that will configure your environment and install the Visual Studio code snippets for this lab.
If the User Account Control dialog box is shown, confirm the action to proceed.
[!NOTE] Make sure you have checked all the dependencies for this lab before running the setup.
### Using the Code Snippets
Throughout the lab document, you will be instructed to insert code blocks. For your convenience, most of this code is provided as Visual Studio Code Snippets, which you can access from within Visual Studio 2013 to avoid having to add it manually.
[!NOTE] Each exercise is accompanied by a starting solution located in the Begin folder of the exercise that allows you to follow each exercise independently of the others. Please be aware that the code snippets that are added during an exercise are missing from these starting solutions and may not work until you have completed the exercise. Inside the source code for an exercise, you will also find an End folder containing a Visual Studio solution with the code that results from completing the steps in the corresponding exercise. You can use these solutions as guidance if you need additional help as you work through this hands-on lab.
## Exercises
This hands-on lab includes the following exercises:
[!NOTE] When you first start Visual Studio, you must select one of the predefined settings collections. Each predefined collection is designed to match a particular development style and determines window layouts, editor behavior, IntelliSense code snippets, and dialog box options. The procedures in this lab describe the actions necessary to accomplish a given task in Visual Studio when using the General Development Settings collection. If you choose a different settings collection for your development environment, there may be differences in the steps that you should take into account.
### Exercise 1: Creating a Web API
One of the key parts of a SPA is the service layer. It is responsible for processing the Ajax calls sent by the UI and returning data in response to that call. The data retrieved should be presented in a machine-readable format in order to be parsed and consumed by the client.
The Web API framework is part of the ASP.NET Stack and is designed to make it easy to implement HTTP services, generally sending and receiving JSON- or XML-formatted data through a RESTful API. In this exercise you will create the Web site to host the Geek Quiz application and then implement the back-end service to expose and persist the quiz data using ASP.NET Web API.
#### Task 1 – Creating the Initial Project for Geek Quiz
In this task you will start creating a new ASP.NET MVC project with support for ASP.NET Web API based on the One ASP.NET project type that comes with Visual Studio. One ASP.NET unifies all ASP.NET technologies and gives you the option to mix and match them as desired. You will then add the Entity Framework’s model classes and the database initializator to insert the quiz questions.
Open Visual Studio Express 2013 for Web and select File | New Project… to start a new solution.
Creating a New ProjectCreating a New Project
In the New Project dialog box, select ASP.NET Web Application under the Visual C# | Web tab. Make sure .NET Framework 4.5 is selected, name it GeekQuiz, choose a Location and click OK.
Creating a new ASP.NET Web Application projectCreating a new ASP.NET Web Application project
In the New ASP.NET Project dialog box, select the MVC template and select the Web API option. Also, make sure that the Authentication option is set to Individual User Accounts. Click OK to continue.
Creating a new project with the MVC template, including Web API componentsCreating a new project with the MVC template, including Web API components
In Solution Explorer, right-click the Models folder of the GeekQuiz project and select Add | Existing Item….
Adding an existing itemAdding an existing item
In the Add Existing Item dialog box, navigate to the Source/Assets/Models folder and select all the files. Click Add.
Adding the model assets
Adding the model assets
[!NOTE] By adding these files, you are adding the data model, the Entity Framework’s database context and the database initializer for the Geek Quiz application.
Entity Framework (EF) is an object-relational mapper (ORM) that enables you to create data access applications by programming with a conceptual application model instead of programming directly using a relational storage schema. You can learn more about Entity Framework here.
The following is a description of the classes you just added:
TriviaOption: represents a single option associated with a quiz question
TriviaQuestion: represents a quiz question and exposes the associated options through the Options property
TriviaAnswer: represents the option selected by the user in response to a quiz question
TriviaContext: represents the Entity Framework’s database context of the Geek Quiz application. This class derives from DContext and exposes DbSet properties that represent collections of the entities described above.
TriviaDatabaseInitializer: the implementation of the Entity Framework initializer for the TriviaContext class which inherits from CreateDatabaseIfNotExists. The default behavior of this class is to create the database only if it does not exist, inserting the entities specified in the Seed method.
Open the Global.asax.cs file and add the following using statement.
Modify the Home controller to restrict access to authenticated users. To do this, open the HomeController.cs file inside the Controllers folder and add the Authorize attribute to the HomeController class definition.
[!NOTE] The Authorize filter checks to see if the user is authenticated. If the user is not authenticated, it returns HTTP status code 401 (Unauthorized) without invoking the action. You can apply the filter globally, at the controller level, or at the level of individual actions.
You will now customize the layout of the web pages and the branding. To do this, open the _Layout.cshtml file inside the Views | Shared folder and update the content of the <title> element by replacing My ASP.NET Application with Geek Quiz.
In the same file, update the navigation bar by removing the About and Contact links and renaming the Home link to Play. Additionally, rename the Application name link to Geek Quiz. The HTML for the navigation bar should look like the following code.
Update the footer of the layout page by replacing My ASP.NET Application with Geek Quiz. To do this, replace the content of the <footer> element with the following highlighted code.
#### Task 2 – Creating the TriviaController Web API
In the previous task, you created the initial structure of the Geek Quiz web application. You will now build a simple Web API service that interacts with the quiz data model and exposes the following actions:
GET /api/trivia: Retrieves the next question from the quiz list to be answered by the authenticated user.
POST /api/trivia: Stores the quiz answer specified by the authenticated user.
You will use the ASP.NET Scaffolding tools provided by Visual Studio to create the baseline for the Web API controller class.
Open the WebApiConfig.cs file inside the App_Start folder. This file defines the configuration of the Web API service, like how routes are mapped to Web API controller actions.
Add the following using statement at the beginning of the file.
Add the following highlighted code to the Register method to globally configure the formatter for the JSON data retrieved by the Web API action methods.
8: config.Formatters.JsonFormatter.SerializerSettings.ContractResolver = new CamelCasePropertyNamesContractResolver();
9:
10: // Web API routes
11: config.MapHttpAttributeRoutes();
12:
13: config.Routes.MapHttpRoute(
14: name: "DefaultApi",
15: routeTemplate: "api/{controller}/{id}",
16: defaults: new { id = RouteParameter.Optional }
17: );
18: }
19: }
[!NOTE] The CamelCasePropertyNamesContractResolver automatically converts property names to camel case, which is the general convention for property names in JavaScript.
In Solution Explorer, right-click the Controllers folder of the GeekQuiz project and select Add | New Scaffolded Item….
Creating a new scaffolded itemCreating a new scaffolded item
In the Add Scaffold dialog box, make sure that the Common node is selected in the left pane. Then, select the Web API 2 Controller - Empty template in the center pane and click Add.
Selecting the Web API 2 Controller Empty template
Selecting the Web API 2 Controller Empty template
[!NOTE] ASP.NET Scaffolding is a code generation framework for ASP.NET Web applications. Visual Studio 2013 includes pre-installed code generators for MVC and Web API projects. You should use scaffolding in your project when you want to quickly add code that interacts with data models in order to reduce the amount of time required to develop standard data operations.
The scaffolding process also ensures that all the required dependencies are installed in the project. For example, if you start with an empty ASP.NET project and then use scaffolding to add a Web API controller, the required Web API NuGet packages and references are added to your project automatically.
In the Add Controller dialog box, type TriviaController in the Controller name text box and click Add.
Adding the Trivia ControllerAdding the Trivia Controller
The TriviaController.cs file is then added to the Controllers folder of the GeekQuiz project, containing an empty TriviaController class. Add the following using statements at the beginning of the file.
3: private TriviaContext db = new TriviaContext();
4:
5: protectedoverridevoid Dispose(bool disposing)
6: {
7: if (disposing)
8: {
9: this.db.Dispose();
10: }
11:
12: base.Dispose(disposing);
13: }
14: }
[!NOTE] The Dispose method of TriviaController invokes the Dispose method of the TriviaContext instance, which ensures that all the resources used by the context object are released when the TriviaContext instance is disposed or garbage-collected. This includes closing all database connections opened by Entity Framework.
Add the following helper method at the end of the TriviaController class. This method retrieves the following quiz question from the database to be answered by the specified user.
Add the following Get action method to the TriviaController class. This action method calls the NextQuestionAsync helper method defined in the previous step to retrieve the next question for the authenticated user.
Add the following helper method at the end of the TriviaController class. This method stores the specified answer in the database and returns a Boolean value indicating whether or not the answer is correct.
6: var selectedOption = await this.db.TriviaOptions.FirstOrDefaultAsync(o => o.Id == answer.OptionId
7: && o.QuestionId == answer.QuestionId);
8:
9: return selectedOption.IsCorrect;
10: }
Add the following Post action method to the TriviaController class. This action method associates the answer to the authenticated user and calls the StoreAsync helper method. Then, it sends a response with the Boolean value returned by the helper method.
In this task you will verify that the Web API service you built in the previous task is working as expected. You will use the Internet Explorer F12 Developer Tools to capture the network traffic and inspect the full response from the Web API service.
[!NOTE] Make sure that Internet Explorer is selected in the Start button located on the Visual Studio toolbar.
Internet Explorer option
Press F5 to run the solution. The Log in page should appear in the browser.
[!NOTE] When the application starts, the default MVC route is triggered, which by default is mapped to the Index action of the HomeController class. Since HomeController is restricted to authenticated users (remember that you decorated that class with the Authorize attribute in Exercise 1) and there is no user authenticated yet, the application redirects the original request to the log in page.
Running the solutionRunning the solution
Click Register to create a new user.
Registering a new userRegistering a new user
In the Register page, enter a User name and Password, and then click Register.
Register pageRegister page
The application registers the new account and the user is authenticated and redirected back to the home page.
User is authenticatedUser is authenticated
In the browser, press F12 to open the Developer Tools panel. Press CTRL + 4 or click the Network icon, and then click the green arrow button to begin capturing network traffic.
Initiating Web API network captureInitiating Web API network capture
Append api/trivia to the URL in the browser’s address bar. You will now inspect the details of the response from the Get action method in TriviaController.

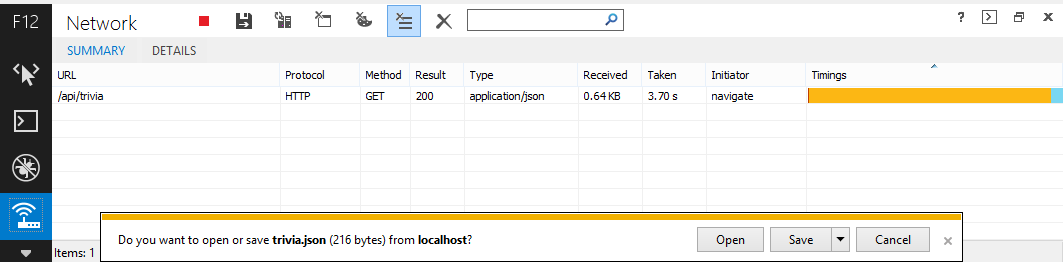

Retrieving the next question data through Web API
Retrieving the next question data through Web API
[!NOTE] Once the download finishes, you will be prompted to make an action with the downloaded file. Leave the dialog box open in order to be able to watch the response content through the Developers Tool window.
Now you will inspect the body of the response. To do this, click the Details tab and then click Response body. You can check that the downloaded data is an object with the properties options (which is a list of TriviaOption objects), id and title that correspond to the TriviaQuestion class.
Viewing the Web API Response BodyViewing Web API Response Body
Go back to Visual Studio and press SHIFT + F5 to stop debugging.
### Exercise 2: Creating the SPA Interface
In this exercise you will first build the web front-end portion of Geek Quiz, focusing on the Single-Page Application interaction using AngularJS. You will then enhance the user experience with CSS3 to perform rich animations and provide a visual effect of context switching when transitioning from one question to the next.
#### Task 1 – Creating the SPA Interface Using AngularJS
In this task you will use AngularJS to implement the client side of the Geek Quiz application. AngularJS is an open-source JavaScript framework that augments browser-based applications with Model-View-Controller (MVC) capability, facilitating both development and testing.
You will start by installing AngularJS from Visual Studio’s Package Manager Console. Then, you will create the controller to provide the behavior of the Geek Quiz app and the view to render the quiz questions and answers using the AngularJS template engine.
Open Visual Studio Express 2013 for Web and open the GeekQuiz.sln solution located in the Source/Ex2-CreatingASPAInterface/Begin folder. Alternatively, you can continue with the solution that you obtained in the previous exercise.
Open the Package Manager Console from Tools | Library Package Manager. Type the following command to install the AngularJS.Core NuGet package.
[!NOTE] The constructor function of the QuizCtrl controller expects an injectable parameter named scope * * .Theinitialstateofthescopeshouldbesetupintheconstructorfunctionbyattachingpropertiestothe * *scope object. The properties contain the view model, and will be accessible to the template when the controller is registered.
The QuizCtrl controller is defined inside a module named QuizApp. Modules are units of work that let you break your application into separate components. The main advantages of using modules is that the code is easier to understand and facilitates unit testing, reusability and maintainability.
You will now add behavior to the scope in order to react to events triggered from the view. Add the following code at the end of the QuizCtrl controller to define the nextQuestion function in the $scope object.
16: $scope.title = "Oops... something went wrong";
17: $scope.working = false;
18: });
19: };
20: };
[!NOTE] This function retrieves the next question from the Trivia Web API created in the previous exercise and attaches the question data to the $scope object.
Insert the following code at the end of the QuizCtrl controller to define the sendAnswer function in the $scope object.
12: $scope.title = "Oops... something went wrong";
13: $scope.working = false;
14: });
15: };
16: };
[!NOTE] This function sends the answer selected by the user to the Trivia Web API and stores the result –i.e. if the answer is correct or not– in the $scope object.
The nextQuestion and sendAnswer functions from above use the AngularJS http * * objecttoabstractthecommunicationwiththeWebAPIviatheXMLHttpRequestJavaScriptobjectfromthebrowser.AngularJSsupportsanotherservicethatbringsahigherlevelofabstractiontoperformCRUDoperationsagainstaresourcethroughRESTfulAPIs.TheAngularJS * *resource object has action methods which provide high-level behaviors without the need to interact with the http * * object.Considerusingthe * *resource object in scenarios that requires the CRUD model (fore information, see the $resource documentation).
The next step is to create the AngularJS template that defines the view for the quiz. To do this, open the Index.cshtml file inside the Views | Home folder and replace the content with the following code.
[!NOTE] The AngularJS template is a declarative specification that uses information from the model and the controller to transform static markup into the dynamic view that the user sees in the browser. The following are examples of AngularJS elements and element attributes that can be used in a template:
The ng-app directive tells AngularJS the DOM element that represents the root element of the application.
The ng-controller directive attaches a controller to the DOM at the point where the directive is declared.
The curly brace notation {{ }} denotes bindings to the scope properties defined in the controller.
The ng-click directive is used to invoke the functions defined in the scope in response to user clicks.
Open the Site.css file inside the Content folder and add the following highlighted styles at the end of the file to provide a look and feel for the quiz view.
In this task you will execute the solution using the new user interface you built with AngularJS to answer some of the quiz questions.
Press F5 to run the solution.
Register a new user account. To do this, follow the registration steps described in Exercise 1, Task 3.
[!NOTE] If you are using the solution from the previous exercise, you can log in with the user account you created before.
The Home page should appear, showing the first question of the quiz. Answer the question by clicking one of the options. This will trigger the sendAnswer function defined earlier, which sends the selected option to the Trivia Web API.
Answering a questionAnswering a question
After clicking one of the buttons, the answer should appear. Click Next Question to show the following question. This will trigger the nextQuestion function defined in the controller.
Requesting the next questionRequesting the next question
The next question should appear. Continue answering questions as many times as you want. After completing all the questions you should return to the first question.

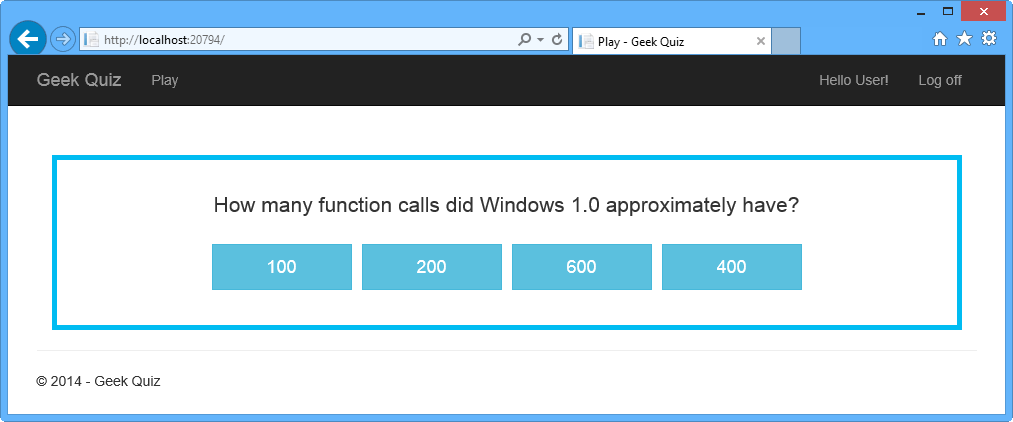

Another questionNext question
Go back to Visual Studio and press SHIFT + F5 to stop debugging.
#### Task 3 – Creating a Flip Animation Using CSS3
In this task you will use CSS3 properties to perform rich animations by adding a flip effect when a question is answered and when the next question is retrieved.
In Solution Explorer, right-click the Content folder of the GeekQuiz project and select Add | Existing Item….
Adding an existing item to the Content folderAdding an existing item to the Content folder
In the Add Existing Item dialog box, navigate to the Source/Assets folder and select Flip.css. Click Add.
Adding the Flip.css file from AssetsAdding the Flip.css file from Assets
Open the Flip.css file you just added and inspect its content.
Locate the flip transformation comment. The styles below that comment use the CSS perspective and rotateY transformations to generate a “card flip” effect.
Locate the hide back of pane during flip comment. The style below that comment hides the back-side of the faces when they are facing away from the viewer by setting the backface-visibility CSS property to hidden.
)
