Working with Computed Columns (VB)

by Scott Mitchell

Download Code or Download PDF

When creating a database table, Microsoft SQL Server allows you to define a computed column whose value is calculated from an expression that usually references other values in the same database record. Such values are read-only at the database, which requires special considerations when working with TableAdapters. In this tutorial we learn how to meet the challenges posed by computed columns.

Introduction

Microsoft SQL Server allows for computed columns, which are columns whose values are calculated from an expression that usually references the values from other columns in the same table. As an example, a time tracking data model might have a table named ServiceLog with columns including ServicePerformed, EmployeeID, Rate, and Duration, among others. While the amount due per service item (being the rate multiplied by the duration) could be calculated through a web page or other programmatic interface, it might be handy to include a column in the ServiceLog table named AmountDue that reported this information. This column could be created as a normal column, but it would need to be updated anytime the Rate or Duration column values changed. A better approach would be to make the AmountDue column a computed column using the expression Rate * Duration. Doing so would cause SQL Server to automatically calculate the AmountDue column value whenever it was referenced in a query.

Since a computed column s value is determined by an expression, such columns are read-only and therefore cannot have values assigned to them in INSERT or UPDATE statements. However, when computed columns are part of the main query for a TableAdapter that uses ad-hoc SQL statements, they are automatically included in the auto-generated INSERT and UPDATE statements. Consequently, the TableAdapter s INSERT and UPDATE queries and InsertCommand and UpdateCommand properties must be updated to remove references to any computed columns.

One challenge of using computed columns with a TableAdapter that uses ad-hoc SQL statements is that the TableAdapter s INSERT and UPDATE queries are automatically regenerated any time the TableAdapter Configuration wizard is completed. Therefore, the computed columns manually removed from the INSERT and UPDATE queries will reappear if the wizard is re-run. Although TableAdapters that use stored procedures don t suffer from this brittleness, they do have their own quirks that we will address in Step 3.

In this tutorial we will add a computed column to the Suppliers table in the Northwind database and then create a corresponding TableAdapter to work with this table and its computed column. We will have our TableAdapter use stored procedures instead of ad-hoc SQL statements so that our customizations aren t lost when the TableAdapter Configuration wizard is used.

Let s get started!

Step 1: Adding a Computed Column to theSuppliersTable

The Northwind database does not have any computed columns so we will need to add one ourselves. For this tutorial let s add a computed column to the Suppliers table called FullContactName that returns the contact s name, title, and the company they work for in the following format: ContactName (ContactTitle, CompanyName). This computed column might be used in reports when displaying information about suppliers.

Start by opening the Suppliers table definition by right-clicking on the Suppliers table in the Server Explorer and choosing Open Table Definition from the context-menu. This will display the columns of the table and their properties, such as their data type, whether they allow NULL s, and so forth. To add a computed column, start by typing in the name of the column into the table definition. Next, enter its expression into the (Formula) textbox under the Computed Column Specification section in the Column Properties window (see Figure 1). Name the computed column FullContactName and use the following expression:

[!code-sqlMain]

   1:  ContactName + ' (' + CASE WHEN ContactTitle IS NOT NULL THEN

   2:      ContactTitle + ', ' ELSE '' END + CompanyName + ')'

Note that strings can be concatenated in SQL using the + operator. The CASE statement can be used like a conditional in a traditional programming language. In the above expression the CASE statement can be read as: If ContactTitle is not NULL then output the ContactTitle value concatenated with a comma, otherwise emit nothing. For more on the usefulness of the CASE statement, see The Power of SQL CASE Statements.

[!NOTE] Instead of using a CASE statement here, we could have alternatively used ISNULL(ContactTitle, ''). ISNULL(checkExpression, replacementValue) returns checkExpression if it is non-NULL, otherwise it returns replacementValue. While either ISNULL or CASE will work in this instance, there are more intricate scenarios where the flexibility of the CASE statement cannot be matched by ISNULL.

After adding this computed column your screen should look like the screen shot in Figure 1.

Figure 1: Add a Computed Column Named FullContactName to the Suppliers Table (Click to view full-size image)

After naming the computed column and entering its expression, save the changes to the table by clicking the Save icon in the toolbar, by hitting Ctrl+S, or by going to the File menu and choosing Save Suppliers.

Saving the table should refresh the Server Explorer, including the just-added column in the Suppliers table s column list. Furthermore, the expression entered into the (Formula) textbox will automatically adjust to an equivalent expression that strips unnecessary whitespace, surrounds column names with brackets ([]), and includes parentheses to more explicitly show the order of operations:

[!code-sqlMain]

   1:  (((([ContactName]+' (')+case when [ContactTitle] IS NOT NULL

   2:      then [ContactTitle]+', ' else '' end)+[CompanyName])+')')

For more information on computed columns in Microsoft SQL Server, refer to the technical documentation. Also check out the How to: Specify Computed Columns for a step-by-step walkthrough of creating computed columns.

[!NOTE] By default, computed columns are not physically stored in the table but are instead recalculated each time they are referenced in a query. By checking the Is Persisted checkbox, however, you can instruct SQL Server to physically store the computed column in the table. Doing so allows an index to be created on the computed column, which can improve the performance of queries that use the computed column value in their WHERE clauses. See Creating Indexes on Computed Columns for more information.

Step 2: Viewing the Computed Column s Values

Before we start work on the Data Access Layer, let s take a minute to view the FullContactName values. From the Server Explorer, right-click on the Suppliers table name and choose New Query from the context-menu. This will bring up a Query window that prompts us to choose what tables to include in the query. Add the Suppliers table and click Close. Next, check the CompanyName, ContactName, ContactTitle, and FullContactName columns from the Suppliers table. Finally, click the red exclamation point icon in the Toolbar to execute the query and view the results.

As Figure 2 shows, the results include FullContactName, which lists the CompanyName, ContactName, and ContactTitle columns using the format ContactName (ContactTitle, CompanyName) .

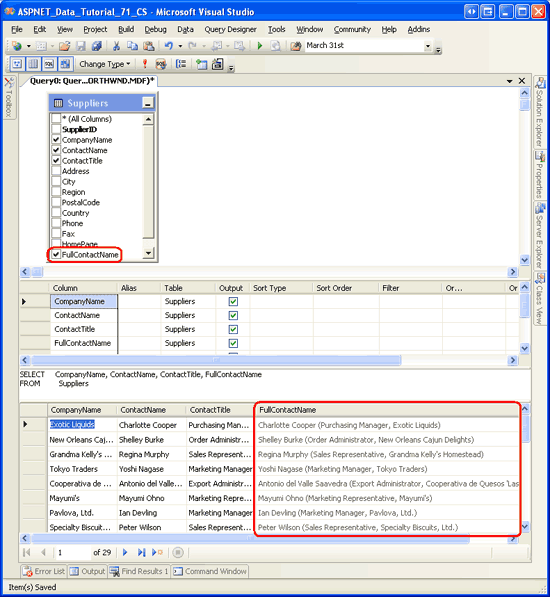

Figure 2: The FullContactName Uses the Format ContactName (ContactTitle, CompanyName) (Click to view full-size image)

Step 3: Adding theSuppliersTableAdapterto the Data Access Layer

In order to work with the supplier information in our application we need to first create a TableAdapter and DataTable in our DAL. Ideally, this would be accomplished using the same straightforward steps examined in earlier tutorials. However, working with computed columns introduces a few wrinkles that merit discussion.

If you are using a TableAdapter that uses ad-hoc SQL statements, you can simply include the computed column in the TableAdapter s main query via the TableAdapter Configuration wizard. This, however, will auto-generate INSERT and UPDATE statements that include the computed column. If you attempt to execute one of these methods, a SqlException with the message The column ColumnName cannot be modified because it is either a computed column or is the result of a UNION operator will be thrown. While the INSERT and UPDATE statement can be manually adjusted through the TableAdapter s InsertCommand and UpdateCommand properties, these customizations will be lost whenever the TableAdapter Configuration wizard is re-run.

Due to the brittleness of TableAdapters that use ad-hoc SQL statements, it is recommended that we use stored procedures when working with computed columns. If you are using existing stored procedures, simply configure the TableAdapter as discussed in the Using Existing Stored Procedures for the Typed DataSet s TableAdapters tutorial. If you have the TableAdapter wizard create the stored procedures for you, however, it is important to initially omit any computed columns from the main query. If you include a computed column in the main query, the TableAdapter Configuration wizard will inform you, upon completion, that it cannot create the corresponding stored procedures. In short, we need to initially configure the TableAdapter using a computed column-free main query and then manually update the corresponding stored procedure and the TableAdapter s SelectCommand to include the computed column. This approach is similar to the one used in the Updating the TableAdapter to UseJOINs tutorial.

For this tutorial, let s add a new TableAdapter and have it automatically create the stored procedures for us. Consequently, we will need to initially omit the FullContactName computed column from the main query.

Start by opening the NorthwindWithSprocs DataSet in the ~/App_Code/DAL folder. Right-click in the Designer and, from the context-menu, choose to add a new TableAdapter. This will launch the TableAdapter Configuration wizard. Specify the database to query data from (NORTHWNDConnectionString from Web.config) and click Next. Since we have not yet created any stored procedures for querying or modifying the Suppliers table, select the Create new stored procedures option so that the wizard will create them for us and click Next.

Figure 3: Choose the Create new stored procedures Option (Click to view full-size image)

The subsequent step prompts us for the main query. Enter the following query, which returns the SupplierID, CompanyName, ContactName, and ContactTitle columns for each supplier. Note that this query purposefully omits the computed column (FullContactName); we will update the corresponding stored procedure to include this column in Step 4.

[!code-sqlMain]

   1:  SELECT SupplierID, CompanyName, ContactName, ContactTitle

   2:  FROM Suppliers

After entering the main query and clicking Next, the wizard allows us to name the four stored procedures it will generate. Name these stored procedures Suppliers_Select, Suppliers_Insert, Suppliers_Update, and Suppliers_Delete, as Figure 4 illustrates.

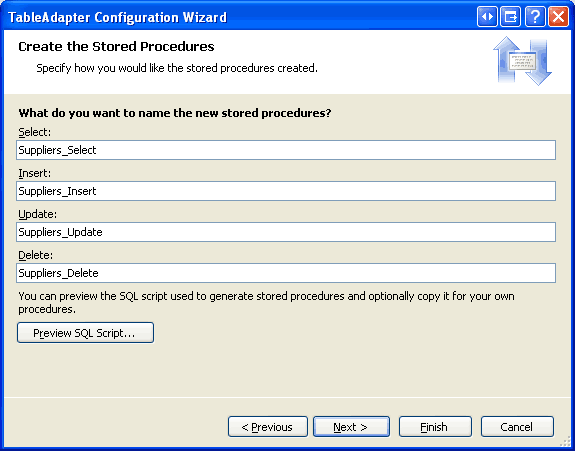

Figure 4: Customize the Names of the Auto-Generated Stored Procedures (Click to view full-size image)

The next wizard step allows us to name the TableAdapter s methods and specify the patterns used to access and update data. Leave all three checkboxes checked, but rename the GetData method to GetSuppliers. Click Finish to complete the wizard.

Figure 5: Rename the GetData Method to GetSuppliers (Click to view full-size image)

Upon clicking Finish, the wizard will create the four stored procedures and add the TableAdapter and corresponding DataTable to the Typed DataSet.

Step 4: Including the Computed Column in the TableAdapter s Main Query

We now need to update the TableAdapter and DataTable created in Step 3 to include the FullContactName computed column. This involves two steps:

1. Updating the Suppliers_Select stored procedure to return the FullContactName computed column, and
2. Updating the DataTable to include a corresponding FullContactName column.

Start by navigating to the Server Explorer and drilling down into the Stored Procedures folder. Open the Suppliers_Select stored procedure and update the SELECT query to include the FullContactName computed column:

[!code-sqlMain]

   1:  SELECT SupplierID, CompanyName, ContactName, ContactTitle, FullContactName

   2:  FROM Suppliers

Save the changes to the stored procedure by clicking the Save icon in the Toolbar, by hitting Ctrl+S, or by choosing the Save Suppliers_Select option from the File menu.

Next, return to the DataSet Designer, right-click on the SuppliersTableAdapter, and choose Configure from the context-menu. Note that the Suppliers_Select column now includes the FullContactName column in its Data Columns collection.

Figure 6: Run the TableAdapter s Configuration Wizard to Update the DataTable s Columns (Click to view full-size image)

Click Finish to complete the wizard. This will automatically add a corresponding column to the SuppliersDataTable. The TableAdapter wizard is smart enough to detect that the FullContactName column is a computed column and therefore read-only. Consequently, it sets the column s ReadOnly property to true. To verify this, select the column from the SuppliersDataTable and then go to the Properties window (see Figure 7). Note that the FullContactName column s DataType and MaxLength properties are also set accordingly.

Figure 7: The FullContactName Column is Marked as Read-Only (Click to view full-size image)

Step 5: Adding aGetSupplierBySupplierIDMethod to the TableAdapter

For this tutorial we will create an ASP.NET page that displays the suppliers in an updateable grid. In past tutorials we have updated a single record from the Business Logic Layer by retrieving that particular record from the DAL as a strongly-typed DataTable, updating its properties, and then sending the updated DataTable back to the DAL to propagate the changes to the database. To accomplish this first step - retrieving the record being updated from the DAL - we need to first add a GetSupplierBySupplierID(supplierID) method to the DAL.

Right-click on the SuppliersTableAdapter in the DataSet Design and choose the Add Query option from the context-menu. As we did in Step 3, let the wizard generate a new stored procedure for us by selecting the Create new stored procedure option (refer back to Figure 3 for a screenshot of this wizard step). Since this method will return a record with multiple columns, indicate that we want to use a SQL query that is a SELECT which returns rows and click Next.

Figure 8: Choose the SELECT which returns rows Option (Click to view full-size image)

The subsequent step prompts us for the query to use for this method. Enter the following, which returns the same data fields as the main query but for a particular supplier.

[!code-sqlMain]

   1:  SELECT SupplierID, CompanyName, ContactName, ContactTitle, FullContactName

   2:  FROM Suppliers

   3:  WHERE SupplierID = @SupplierID

The next screen asks us to name the stored procedure that will be auto-generated. Name this stored procedure Suppliers_SelectBySupplierID and click Next.

Figure 9: Name the Stored Procedure Suppliers_SelectBySupplierID (Click to view full-size image)

Lastly, the wizard prompts us for the data access patterns and method names to use for the TableAdapter. Leave both checkboxes checked, but rename the FillBy and GetDataBy methods to FillBySupplierID and GetSupplierBySupplierID, respectively.

Figure 10: Name the TableAdapter Methods FillBySupplierID and GetSupplierBySupplierID (Click to view full-size image)

Click Finish to complete the wizard.

Step 6: Creating the Business Logic Layer

Before we create an ASP.NET page that uses the computed column created in Step 1, we first need to add the corresponding methods in the BLL. Our ASP.NET page, which we will create in Step 7, will allow users to view and edit suppliers. Therefore, we need our BLL to provide, at minimum, a method to get all of the suppliers and another to update a particular supplier.

Create a new class file named SuppliersBLLWithSprocs in the ~/App_Code/BLL folder and add the following code:

[!code-vbMain]

   1:  Imports NorthwindWithSprocsTableAdapters

   2:  <System.ComponentModel.DataObject()> _

   3:  Public Class SuppliersBLLWithSprocs

   4:      Private _suppliersAdapter As SuppliersTableAdapter = Nothing

   5:      Protected ReadOnly Property Adapter() As SuppliersTableAdapter

   6:          Get

   7:              If _suppliersAdapter Is Nothing Then

   8:                  _suppliersAdapter = New SuppliersTableAdapter()

   9:              End If

  10:              Return _suppliersAdapter

  11:          End Get

  12:      End Property

  13:      <System.ComponentModel.DataObjectMethodAttribute _

  14:          (System.ComponentModel.DataObjectMethodType.Select, True)> _

  15:      Public Function GetSuppliers() As NorthwindWithSprocs.SuppliersDataTable

  16:          Return Adapter.GetSuppliers()

  17:      End Function

  18:      <System.ComponentModel.DataObjectMethodAttribute _

  19:          (System.ComponentModel.DataObjectMethodType.Update, True)> _

  20:      Public Function UpdateSupplier(companyName As String, contactName As String, _

  21:          contactTitle As String, supplierID As Integer) As Boolean

  22:          Dim suppliers As NorthwindWithSprocs.SuppliersDataTable = _

  23:              Adapter.GetSupplierBySupplierID(supplierID)

  24:          If suppliers.Count = 0 Then

  25:              ' no matching record found, return false

  26:              Return False

  27:          End If

  28:          Dim supplier As NorthwindWithSprocs.SuppliersRow = suppliers(0)

  29:          supplier.CompanyName = companyName

  30:          If contactName Is Nothing Then

  31:              supplier.SetContactNameNull()

  32:          Else

  33:              supplier.ContactName = contactName

  34:          End If

  35:          If contactTitle Is Nothing Then

  36:              supplier.SetContactTitleNull()

  37:          Else

  38:              supplier.ContactTitle = contactTitle

  39:          End If

  40:          ' Update the product record

  41:          Dim rowsAffected As Integer = Adapter.Update(supplier)

  42:          ' Return true if precisely one row was updated, otherwise false

  43:          Return rowsAffected = 1

  44:      End Function

  45:  End Class

Like the other BLL classes, SuppliersBLLWithSprocs has a Protected Adapter property that returns an instance of the SuppliersTableAdapter class along with two Public methods: GetSuppliers and UpdateSupplier. The GetSuppliers method calls and returns the SuppliersDataTable returned by the corresponding GetSupplier method in the Data Access Layer. The UpdateSupplier method retrieves information about the particular supplier being updated via a call to the DAL s GetSupplierBySupplierID(supplierID) method. It then updates the CategoryName, ContactName, and ContactTitle properties and commits these changes to the database by calling the Data Access Layer s Update method, passing in the modified SuppliersRow object.

[!NOTE] Except for SupplierID and CompanyName, all columns in the Suppliers table allow NULL values. Therefore, if the passed-in contactName or contactTitle parameters are Nothing we need to set the corresponding ContactName and ContactTitle properties to a NULL database value using the SetContactNameNull and SetContactTitleNull methods, respectively.

Step 7: Working with the Computed Column from the Presentation Layer

With the computed column added to the Suppliers table and the DAL and BLL updated accordingly, we are ready to build an ASP.NET page that works with the FullContactName computed column. Start by opening the ComputedColumns.aspx page in the AdvancedDAL folder and drag a GridView from the Toolbox onto the Designer. Set the GridView s ID property to Suppliers and, from its smart tag, bind it to a new ObjectDataSource named SuppliersDataSource. Configure the ObjectDataSource to use the SuppliersBLLWithSprocs class we added back in Step 6 and click Next.

Figure 11: Configure the ObjectDataSource to Use the SuppliersBLLWithSprocs Class (Click to view full-size image)

There are only two methods defined in the SuppliersBLLWithSprocs class: GetSuppliers and UpdateSupplier. Ensure that these two methods are specified in the SELECT and UPDATE tabs, respectively, and click Finish to complete the configuration of the ObjectDataSource.

Upon completion of the Data Source Configuration wizard, Visual Studio will add a BoundField for each of the data fields returned. Remove the SupplierID BoundField and change the HeaderText properties of the CompanyName, ContactName, ContactTitle, and FullContactName BoundFields to Company, Contact Name, Title, and Full Contact Name, respectively. From the smart tag, check the Enable Editing checkbox to turn on the GridView s built-in editing capabilities.

In addition to adding BoundFields to the GridView, completion of the Data Source Wizard also causes Visual Studio to set the ObjectDataSource s OldValuesParameterFormatString property to original_{0}. Revert this setting back to its default value, {0} .

After making these edits to the GridView and ObjectDataSource, their declarative markup should look similar to the following:

[!code-aspxMain]

   1:  <asp:GridView ID="Suppliers" runat="server" AutoGenerateColumns="False"

   2:      DataKeyNames="SupplierID" DataSourceID="SuppliersDataSource">

   3:      <Columns>

   4:          <asp:CommandField ShowEditButton="True" />

   5:          <asp:BoundField DataField="CompanyName"

   6:              HeaderText="Company"

   7:              SortExpression="CompanyName" />

   8:          <asp:BoundField DataField="ContactName"

   9:              HeaderText="Contact Name"

  10:              SortExpression="ContactName" />

  11:          <asp:BoundField DataField="ContactTitle"

  12:              HeaderText="Title"

  13:              SortExpression="ContactTitle" />

  14:          <asp:BoundField DataField="FullContactName"

  15:              HeaderText="Full Contact Name"

  16:              SortExpression="FullContactName"

  17:              ReadOnly="True" />

  18:      </Columns>

  19:  </asp:GridView>

  20:  <asp:ObjectDataSource ID="SuppliersDataSource" runat="server"

  21:      SelectMethod="GetSuppliers" TypeName="SuppliersBLLWithSprocs"

  22:          UpdateMethod="UpdateSupplier">

  23:      <UpdateParameters>

  24:          <asp:Parameter Name="companyName" Type="String" />

  25:          <asp:Parameter Name="contactName" Type="String" />

  26:          <asp:Parameter Name="contactTitle" Type="String" />

  27:          <asp:Parameter Name="supplierID" Type="Int32" />

  28:      </UpdateParameters>

  29:  </asp:ObjectDataSource>

Next, visit this page through a browser. As Figure 12 shows, each supplier is listed in a grid that includes the FullContactName column, whose value is simply the concatenation of the other three columns formatted as ContactName (ContactTitle, CompanyName) .

Figure 12: Each Supplier is Listed in the Grid (Click to view full-size image)

Clicking the Edit button for a particular supplier causes a postback and has that row rendered in its editing interface (see Figure 13). The first three columns render in their default editing interface - a TextBox control whose Text property is set to the value of the data field. The FullContactName column, however, remains as text. When the BoundFields were added to the GridView at the completion of the Data Source Configuration wizard, the FullContactName BoundField s ReadOnly property was set to True because the corresponding FullContactName column in the SuppliersDataTable has its ReadOnly property set to True. As noted in Step 4, the FullContactName s ReadOnly property was set to True because the TableAdapter detected that the column was a computed column.

Figure 13: The FullContactName Column is Not Editable (Click to view full-size image)

Go ahead and update the value of one or more of the editable columns and click Update. Note how the FullContactName s value is automatically updated to reflect the change.

[!NOTE] The GridView currently uses BoundFields for the editable fields, resulting in the default editing interface. Since the CompanyName field is required, it should be converted into a TemplateField that includes a RequiredFieldValidator. I leave this as an exercise for the interested reader. Consult the Adding Validation Controls to the Editing and Inserting Interfaces tutorial for step-by-step instructions on converting a BoundField to a TemplateField and adding validation controls.

Summary

When defining the schema for a table, Microsoft SQL Server allows the inclusion of computed columns. These are columns whose values are calculated from an expression that usually references the values from other columns in the same record. Since the values for computed columns are based on an expression, they are read-only and cannot be assigned a value in an INSERT or UPDATE statement. This introduces challenges when using a computed column in the main query of a TableAdapter that tries to automatically generate corresponding INSERT, UPDATE, and DELETE statements.

In this tutorial we discussed techniques for circumventing the challenges posed by computed columns. In particular, we used stored procedures in our TableAdapter to overcome the brittleness inherent in TableAdapters that use ad-hoc SQL statements. When having the TableAdapter wizard create new stored procedures, it is important that we have the main query initially omit any computed columns because their presence prevents the data modification stored procedures from being generated. After the TableAdapter has been initially configured, its SelectCommand stored procedure can be retooled to include any computed columns.

Happy Programming!
