Building a Custom Database-Driven Site Map Provider (VB)

The default site map provider in ASP.NET 2.0 retrieves its data from a static XML file. While the XML-based provider is suitable to many small and medium-sized Web sites, larger Web applications require a more dynamic site map. In this tutorial we’ll build a custom site map provider that retrieves its data from the Business Logic Layer, which in turn retrieves data from the database.

Introduction

ASP.NET 2.0 s site map feature enables a page developer to define a web application s site map in some persistent medium, such as in an XML file. Once defined, the site map data can be accessed programmatically through the SiteMap class in the System.Web namespace or through a variety of navigation Web controls, such as the SiteMapPath, Menu, and TreeView controls. The site map system uses the provider model so that different site map serialization implementations can be created and plugged into a web application. The default site map provider that ships with ASP.NET 2.0 persists site map structure in an XML file. Back in the Master Pages and Site Navigation tutorial we created a file named Web.sitemap that contained this structure and have been updating its XML with each new tutorial section.

The default XML-based site map provider works well if the site map s structure is fairly static, such as for these tutorials. In many scenarios, however, a more dynamic site map is needed. Consider the site map shown in Figure 1, where each category and product appear as sections in the website s structure. With this site map, visiting the web page corresponding to the root node might list all of the categories, whereas visiting a particular category s web page would list that category s products and viewing a particular product s web page would show that product s details.

Figure 1: The Categories and Products Makeup the Site Map s Structure (Click to view full-size image)

While this category- and product-based structure could be hard-coded into the Web.sitemap file, the file would need to be updated each time a category or product was added, removed, or renamed. Consequently, the site map maintenance would be greatly simplified if its structure was retrieved from the database or, ideally, from the Business Logic Layer of the application s architecture. That way, as products and categories were added, renamed, or deleted, the site map would automatically update to reflect these changes.

Since ASP.NET 2.0 s site map serialization is built atop the provider model, we can create our own custom site map provider that grabs its data from an alternate data store, such as the database or architecture. In this tutorial we’ll build a custom provider that retrieves its data from the BLL. Let s get started!

[!NOTE] The custom site map provider created in this tutorial is tightly coupled to the application s architecture and data model. Jeff Prosise s Storing Site Maps in SQL Server and The SQL Site Map Provider You ve Been Waiting For articles examine a generalized approach to storing site map data in SQL Server.

Step 1: Creating the Custom Site Map Provider Web Pages

Before we start creating a custom site map provider, let s first add the ASP.NET pages we’ll need for this tutorial. Start by adding a new folder named SiteMapProvider. Next, add the following ASP.NET pages to that folder, making sure to associate each page with the Site.master master page:

Default.aspx
ProductsByCategory.aspx
ProductDetails.aspx

Also add a CustomProviders subfolder to the App_Code folder.

Figure 2: Add the ASP.NET Pages for the Site Map Provider-Related Tutorials

Since there is only one tutorial for this section, we don t need Default.aspx to list the section s tutorials. Instead, Default.aspx will display the categories in a GridView control. We’ll tackle this in Step 2.

Next, update Web.sitemap to include a reference to the Default.aspx page. Specifically, add the following markup after the Caching <siteMapNode>:

[!code-xmlMain]

   1:  <siteMapNode

   2:      title="Customizing the Site Map" url="~/SiteMapProvider/Default.aspx"

   3:      description="Learn how to create a custom provider that retrieves the site map

   4:                   from the Northwind database." />

After updating Web.sitemap, take a moment to view the tutorials website through a browser. The menu on the left now includes an item for the sole site map provider tutorial.

Figure 3: The Site Map Now Includes an Entry for the Site Map Provider Tutorial

This tutorial s main focus is to illustrate creating a custom site map provider and configuring a web application to use that provider. In particular, we’ll build a provider that returns a site map that includes a root node along with a node for each category and product, as depicted in Figure 1. In general, each node in the site map may specify a URL. For our site map, the root node s URL will be ~/SiteMapProvider/Default.aspx, which will list all of the categories in the database. Each category node in the site map will have a URL that points to ~/SiteMapProvider/ProductsByCategory.aspx?CategoryID=categoryID, which will list all of the products in the specified categoryID. Finally, each product site map node will point to ~/SiteMapProvider/ProductDetails.aspx?ProductID=productID, which will display the specific product s details.

To start we need to create the Default.aspx, ProductsByCategory.aspx, and ProductDetails.aspx pages. These pages are completed in Steps 2, 3, and 4, respectively. Since the thrust of this tutorial is on site map providers, and since past tutorials have covered creating these sorts of multi-page master/detail reports, we will hurry through Steps 2 through 4. If you need a refresher on creating master/detail reports that span multiple pages, refer back to the Master/Detail Filtering Across Two Pages tutorial.

Step 2: Displaying a List of Categories

Open the Default.aspx page in the SiteMapProvider folder and drag a GridView from the Toolbox onto the Designer, setting its ID to Categories. From the GridView s smart tag, bind it to a new ObjectDataSource named CategoriesDataSource and configure it so that it retrieves its data using the CategoriesBLL class s GetCategories method. Since this GridView just displays the categories and does not provide data modification capabilities, set the drop-down lists in the UPDATE, INSERT, and DELETE tabs to (None) .

Figure 4: Configure the ObjectDataSource to Return Categories Using the GetCategories Method (Click to view full-size image)

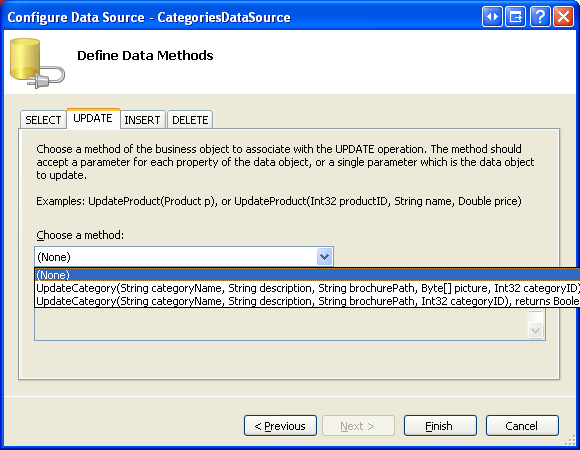

Figure 5: Set the Drop-Down Lists in the UPDATE, INSERT, and DELETE Tabs to (None) (Click to view full-size image)

After completing the Configure Data Source wizard, Visual Studio will add a BoundField for CategoryID, CategoryName, Description, NumberOfProducts, and BrochurePath. Edit the GridView so that it only contains the CategoryName and Description BoundFields and update the CategoryName BoundField s HeaderText property to Category .

Next, add a HyperLinkField and position it so that it s the left-most field. Set the DataNavigateUrlFields property to CategoryID and the DataNavigateUrlFormatString property to ~/SiteMapProvider/ProductsByCategory.aspx?CategoryID={0}. Set the Text property to View Products .

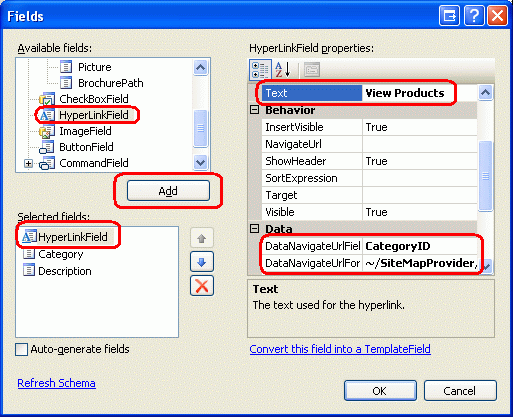

Figure 6: Add a HyperLinkField to the Categories GridView

After creating the ObjectDataSource and customizing the GridView s fields, the two controls declarative markup will look like the following:

[!code-aspxMain]

   1:  <asp:GridView ID="Categories" runat="server" AutoGenerateColumns="False"

   2:      DataKeyNames="CategoryID" DataSourceID="CategoriesDataSource"

   3:      EnableViewState="False">

   4:      <Columns>

   5:          <asp:HyperLinkField DataNavigateUrlFields="CategoryID"

   6:              DataNavigateUrlFormatString=

   7:                  "~/SiteMapProvider/ProductsByCategory.aspx?CategoryID={0}"

   8:              Text="View Products" />

   9:          <asp:BoundField DataField="CategoryName" HeaderText="Category"

  10:              SortExpression="CategoryName" />

  11:          <asp:BoundField DataField="Description" HeaderText="Description"

  12:              SortExpression="Description" />

  13:      </Columns>

  14:  </asp:GridView>

  15:  <asp:ObjectDataSource ID="CategoriesDataSource" runat="server"

  16:      OldValuesParameterFormatString="original_{0}" SelectMethod="GetCategories"

  17:      TypeName="CategoriesBLL"></asp:ObjectDataSource>

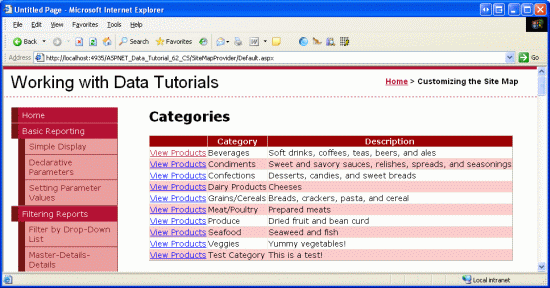

Figure 7 shows Default.aspx when viewed through a browser. Clicking a category s View Products link takes you to ProductsByCategory.aspx?CategoryID=categoryID, which we will build in Step 3.

Figure 7: Each Category is Listed Along with a View Products Link (Click to view full-size image)

Step 3: Listing the Selected Category s Products

Open the ProductsByCategory.aspx page and add a GridView, naming it ProductsByCategory. From its smart tag, bind the GridView to a new ObjectDataSource named ProductsByCategoryDataSource. Configure the ObjectDataSource to use the ProductsBLL class s GetProductsByCategoryID(categoryID) method and set the drop-down lists to (None) in the UPDATE, INSERT, and DELETE tabs.

Figure 8: Use the ProductsBLL Class s GetProductsByCategoryID(categoryID) Method (Click to view full-size image)

The final step in the Configure Data Source wizard prompts for a parameter source for categoryID. Since this information is passed through the querystring field CategoryID, select QueryString from the drop-down list and enter CategoryID in the QueryStringField textbox as shown in Figure 9. Click Finish to complete the wizard.

Figure 9: Use the CategoryID Querystring Field for the categoryID Parameter (Click to view full-size image)

After completing the wizard, Visual Studio will add corresponding BoundFields and a CheckBoxField to the GridView for the product data fields. Remove all but the ProductName, UnitPrice, and SupplierName BoundFields. Customize these three BoundFields HeaderText properties to read Product, Price, and Supplier, respectively. Format the UnitPrice BoundField as a currency.

Next, add a HyperLinkField and move it to the left-most position. Set its Text property to View Details, its DataNavigateUrlFields property to ProductID, and its DataNavigateUrlFormatString property to ~/SiteMapProvider/ProductDetails.aspx?ProductID={0}.

Figure 10: Add a View Details HyperLinkField that Points to ProductDetails.aspx

After making these customizations, the GridView and ObjectDataSource s declarative markup should resemble the following:

[!code-aspx 1:

   2:      3:      4:      5:      6:      7:      8:      9:     10:     11:     12:     13:     14:     15:     16:     17:   18:   19:     20:     21:     22:     23:     24:     25:

les-2017/aspnet/web-forms/overview/data-access/database-driven-site-maps/building-a-custom-database-driven-site-map-provider-vb/samples/sample3.aspx">Main]

<asp:GridView ID="ProductsByCategory" runat="server" AutoGenerateColumns="False" DataKeyNames="ProductID" DataSourceID="ProductsByCategoryDataSource" EnableViewState="False"> <Columns> <asp:HyperLinkField DataNavigateUrlFields="ProductID" DataNavigateUrlFormatString= "~/SiteMapProvider/ProductDetails.aspx?ProductID={0}" Text="View Details" /> <asp:BoundField DataField="ProductName" HeaderText="Product" SortExpression="ProductName" /> <asp:BoundField DataField="UnitPrice" DataFormatString="{0:c}" HeaderText="Price" HtmlEncode="False" SortExpression="UnitPrice" /> <asp:BoundField DataField="SupplierName" HeaderText="Supplier" ReadOnly="True" SortExpression="SupplierName" /> </Columns> </asp:GridView> <asp:ObjectDataSource ID="ProductsByCategoryDataSource" runat="server" OldValuesParameterFormatString="original_{0}" SelectMethod="GetProductsByCategoryID" TypeName="ProductsBLL"> <SelectParameters> <asp:QueryStringParameter Name="categoryID" QueryStringField="CategoryID" Type="Int32" /> </SelectParameters> </asp:ObjectDataSource>

Return to viewing Default.aspx through a browser and click on the View Products link for Beverages. This will take you to ProductsByCategory.aspx?CategoryID=1, displaying the names, prices, and suppliers of the products in the Northwind database that belong to the Beverages category (see Figure 11). Feel free to further enhance this page to include a link to return users to the category listing page (Default.aspx) and a DetailsView or FormView control that displays the selected category s name and description.

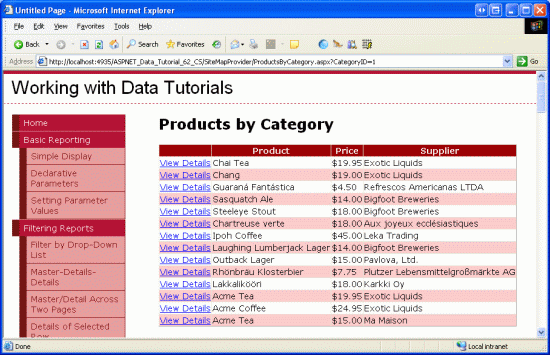

Figure 11: The Beverages Names, Prices, and Suppliers are Displayed (Click to view full-size image)

Step 4: Showing a Product s Details

The final page, ProductDetails.aspx, displays the selected products details. Open ProductDetails.aspx and drag a DetailsView from the Toolbox onto the Designer. Set the DetailsView s ID property to ProductInfo and clear out its Height and Width property values. From its smart tag, bind the DetailsView to a new ObjectDataSource named ProductDataSource, configuring the ObjectDataSource to pull its data from the ProductsBLL class s GetProductByProductID(productID) method. As with the previous web pages created in Steps 2 and 3, set the drop-down lists in the UPDATE, INSERT, and DELETE tabs to (None) .

Figure 12: Configure the ObjectDataSource to Use the GetProductByProductID(productID) Method (Click to view full-size image)

The last step of the Configure Data Source wizard prompts for the source of the productID parameter. Since this data comes through the querystring field ProductID, set the drop-down list to QueryString and the QueryStringField textbox to ProductID. Finally, click the Finish button to complete the wizard.

Figure 13: Configure the productID Parameter to Pull its Value from the ProductID Querystring Field (Click to view full-size image)

After completing the Configure Data Source wizard, Visual Studio will create corresponding BoundFields and a CheckBoxField in the DetailsView for the product data fields. Remove the ProductID, SupplierID, and CategoryID BoundFields and configure the remaining fields as you see fit. After a handful of aesthetic configurations, my DetailsView and ObjectDataSource s declarative markup looked like the following:

[!code-aspxMain]

   1:  <asp:DetailsView ID="ProductInfo" runat="server" AutoGenerateRows="False"

   2:      DataKeyNames="ProductID" DataSourceID="ProductDataSource"

   3:      EnableViewState="False">

   4:      <Fields>

   5:          <asp:BoundField DataField="ProductName" HeaderText="Product"

   6:              SortExpression="ProductName" />

   7:          <asp:BoundField DataField="CategoryName" HeaderText="Category"

   8:              ReadOnly="True" SortExpression="CategoryName" />

   9:          <asp:BoundField DataField="SupplierName" HeaderText="Supplier"

  10:              ReadOnly="True" SortExpression="SupplierName" />

  11:          <asp:BoundField DataField="QuantityPerUnit" HeaderText="Qty/Unit"

  12:              SortExpression="QuantityPerUnit" />

  13:          <asp:BoundField DataField="UnitPrice" DataFormatString="{0:c}"

  14:              HeaderText="Price" HtmlEncode="False"

  15:              SortExpression="UnitPrice" />

  16:          <asp:BoundField DataField="UnitsInStock" HeaderText="Units In Stock"

  17:              SortExpression="UnitsInStock" />

  18:          <asp:BoundField DataField="UnitsOnOrder" HeaderText="Units On Order"

  19:              SortExpression="UnitsOnOrder" />

  20:          <asp:BoundField DataField="ReorderLevel" HeaderText="Reorder Level"

  21:              SortExpression="ReorderLevel" />

  22:          <asp:CheckBoxField DataField="Discontinued" HeaderText="Discontinued"

  23:              SortExpression="Discontinued" />

  24:      </Fields>

  25:  </asp:DetailsView>

  26:  <asp:ObjectDataSource ID="ProductDataSource" runat="server"

  27:      OldValuesParameterFormatString="original_{0}"

  28:      SelectMethod="GetProductByProductID" TypeName="ProductsBLL">

  29:      <SelectParameters>

  30:          <asp:QueryStringParameter Name="productID"

  31:              QueryStringField="ProductID" Type="Int32" />

  32:      </SelectParameters>

  33:  </asp:ObjectDataSource>

To test this page, return to Default.aspx and click on View Products for the Beverages category. From the listing of beverage products, click on the View Details link for Chai Tea. This will take you to ProductDetails.aspx?ProductID=1, which shows a Chai Tea s details (see Figure 14).

Figure 14: Chai Tea s Supplier, Category, Price, and Other Information is Displayed (Click to view full-size image)

Step 5: Understanding the Inner Workings of a Site Map Provider

The site map is represented in the web server s memory as a collection of SiteMapNode instances that form a hierarchy. There must be exactly one root, all non-root nodes must have exactly one parent node, and all nodes may have an arbitrary number of children. Each SiteMapNode object represents a section in the website s structure; these sections commonly have a corresponding web page. Consequently, the SiteMapNode class has properties like Title, Url, and Description, which provide information for the section the SiteMapNode represents. There is also a Key property that uniquely identifies each SiteMapNode in the hierarchy, as well as properties used to establish this hierarchy ChildNodes, ParentNode, NextSibling, PreviousSibling, and so forth.

Figure 15 shows the general site map structure from Figure 1, but with the implementation details sketched out in finer detail.

Figure 15: Each SiteMapNode has Properties Like Title, Url, Key, and So On (Click to view full-size image)

The site map is accessible through the SiteMap class in the System.Web namespace. This class s RootNode property returns the site map s root SiteMapNode instance; CurrentNode returns the SiteMapNode whose Url property matches the URL of the currently requested page. This class is used internally by ASP.NET 2.0 s navigation Web controls.

When the SiteMap class s properties are accessed, it must serialize the site map structure from some persistent medium into memory. However, the site map serialization logic is not hard coded into the SiteMap class. Instead, at runtime the SiteMap class determines which site map provider to use for serialization. By default, the XmlSiteMapProvider class is used, which reads the site map s structure from a properly-formatted XML file. However, with a little bit of work we can create our own custom site map provider.

All site map providers must be derived from the SiteMapProvider class, which includes the essential methods and properties needed for site map providers, but omits many of the implementation details. A second class, StaticSiteMapProvider, extends the SiteMapProvider class and contains a more robust implementation of the needed functionality. Internally, the StaticSiteMapProvider stores the SiteMapNode instances of the site map in a Hashtable and provides methods like AddNode(child, parent), RemoveNode(siteMapNode), and Clear() that add and remove SiteMapNode s to the internal Hashtable. XmlSiteMapProvider is derived from StaticSiteMapProvider.

When creating a custom site map provider that extends StaticSiteMapProvider, there are two abstract methods that must be overridden: BuildSiteMap and GetRootNodeCore. BuildSiteMap, as its name implies, is responsible for loading the site map structure from persistent storage and constructing it in memory. GetRootNodeCore returns the root node in the site map.

Before a web application can use a site map provider it must be registered in the application s configuration. By default, the XmlSiteMapProvider class is registered using the name AspNetXmlSiteMapProvider. To register additional site map providers, add the following markup to Web.config:

[!code-xmlMain]

   1:  <configuration>

   2:      <system.web>

   3:          ...

   4:          <siteMap defaultProvider="defaultProviderName">

   5:            <providers>

   6:              <add name="name" type="type" />

   7:            </providers>

   8:          </siteMap>

   9:      </system.web>

  10:  </configuration>

The name value assigns a human-readable name to the provider while type specifies the fully-qualified type name of the site map provider. We’ll explore concrete values for the name and type values in Step 7, after we ve created our custom site map provider.

The site map provider class is instantiated the first time it is accessed from the SiteMap class and remains in memory for the lifetime of the web application. Since there is only one instance of the site map provider that may be invoked from multiple, concurrent web site visitors, it is imperative that the provider s methods be thread-safe.

For performance and scalability reasons, it s important that we cache the in-memory site map structure and return this cached structure rather than recreating it every time the BuildSiteMap method is invoked. BuildSiteMap may be called several times per page request per user, depending on the navigation controls in use on the page and the depth of the site map structure. In any case, if we do not cache the site map structure in BuildSiteMap then each time it is invoked we would need to re-retrieve the product and category information from the architecture (which would result in a query to the database). As we discussed in the previous caching tutorials, cached data can become stale. To combat this, we can use either time- or SQL cache dependency-based expiries.

[!NOTE] A site map provider may optionally override the Initialize method. Initialize is invoked when the site map provider is first instantiated and is passed any custom attributes assigned to the provider in Web.config in the <add> element like: <add name="name" type="type" customAttribute="value" />. It is useful if you want to allow a page developer to specify various site map provider-related settings without having to modify the provider s code. For example, if we were reading the category and products data directly from the database as opposed to through the architecture, we d likely want to let the page developer specify the database connection string through Web.config rather than using a hard coded value in the provider s code. The custom site map provider we’ll build in Step 6 does not override this Initialize method. For an example of using the Initialize method, refer to Jeff Prosise s Storing Site Maps in SQL Server article.

Step 6: Creating the Custom Site Map Provider

To create a custom site map provider that builds the site map from the categories and products in the Northwind database, we need to create a class that extends StaticSiteMapProvider. In Step 1 I asked you to add a CustomProviders folder in the App_Code folder - add a new class to this folder named NorthwindSiteMapProvider. Add the following code to the NorthwindSiteMapProvider class:

[!code-vbMain]

   1:  Imports System.Web

   2:  Imports System.Web.Caching

   3:  Public Class NorthwindSiteMapProvider

   4:      Inherits StaticSiteMapProvider

   5:      Private ReadOnly siteMapLock As New Object()

   6:      Private root As SiteMapNode = Nothing

   7:      Public Const CacheDependencyKey As String = "NorthwindSiteMapProviderCacheDependency"

   8:      Public Overrides Function BuildSiteMap() As System.Web.SiteMapNode

   9:          ' Use a lock to make this method thread-safe

  10:          SyncLock siteMapLock

  11:              ' First, see if we already have constructed the

  12:              ' rootNode. If so, return it...

  13:              If root IsNot Nothing Then

  14:                  Return root

  15:              End If

  16:              ' We need to build the site map!

  17:              ' Clear out the current site map structure

  18:              MyBase.Clear()

  19:              ' Get the categories and products information from the database

  20:              Dim productsAPI As New ProductsBLL()

  21:              Dim products As Northwind.ProductsDataTable = productsAPI.GetProducts()

  22:              ' Create the root SiteMapNode

  23:              root = New SiteMapNode( _

  24:                  Me, "root", "~/SiteMapProvider/Default.aspx", "All Categories")

  25:              AddNode(root)

  26:              ' Create SiteMapNodes for the categories and products

  27:              For Each product As Northwind.ProductsRow In products

  28:                  ' Add a new category SiteMapNode, if needed

  29:                  Dim categoryKey, categoryName As String

  30:                  Dim createUrlForCategoryNode As Boolean = True

  31:                  If product.IsCategoryIDNull() Then

  32:                      categoryKey = "Category:None"

  33:                      categoryName = "None"

  34:                      createUrlForCategoryNode = False

  35:                  Else

  36:                      categoryKey = String.Concat("Category:", product.CategoryID)

  37:                      categoryName = product.CategoryName

  38:                  End If

  39:                  Dim categoryNode As SiteMapNode = FindSiteMapNodeFromKey(categoryKey)

  40:                  ' Add the category SiteMapNode if it does not exist

  41:                  If categoryNode Is Nothing Then

  42:                      Dim productsByCategoryUrl As String = String.Empty

  43:                      If createUrlForCategoryNode Then

  44:                          productsByCategoryUrl = _

  45:                              "~/SiteMapProvider/ProductsByCategory.aspx?CategoryID=" & _

  46:                              product.CategoryID

  47:                      End If

  48:                      categoryNode = New SiteMapNode _

  49:                          (Me, categoryKey, productsByCategoryUrl, categoryName)

  50:                      AddNode(categoryNode, root)

  51:                  End If

  52:                  ' Add the product SiteMapNode

  53:                  Dim productUrl As String = _

  54:                      "~/SiteMapProvider/ProductDetails.aspx?ProductID=" & _

  55:                      product.ProductID

  56:                  Dim productNode As New SiteMapNode _

  57:                      (Me, String.Concat("Product:", product.ProductID), _

  58:                      productUrl, product.ProductName)

  59:                  AddNode(productNode, categoryNode)

  60:              Next

  61:              ' Add a "dummy" item to the cache using a SqlCacheDependency

  62:              ' on the Products and Categories tables

  63:              Dim productsTableDependency As New _

  64:                  System.Web.Caching.SqlCacheDependency("NorthwindDB", "Products")

  65:              Dim categoriesTableDependency As New _

  66:                  System.Web.Caching.SqlCacheDependency("NorthwindDB", "Categories")

  67:              ' Create an AggregateCacheDependency

  68:              Dim aggregateDependencies As New System.Web.Caching.AggregateCacheDependency()

  69:              aggregateDependencies.Add(productsTableDependency, categoriesTableDependency)

  70:              ' Add the item to the cache specifying a callback function

  71:              HttpRuntime.Cache.Insert( _

  72:                  CacheDependencyKey, DateTime.Now, aggregateDependencies, _

  73:                  Cache.NoAbsoluteExpiration, Cache.NoSlidingExpiration, _

  74:                  CacheItemPriority.Normal, AddressOf OnSiteMapChanged)

  75:              ' Finally, return the root node

  76:              Return root

  77:          End SyncLock

  78:      End Function

  79:      Protected Overrides Function GetRootNodeCore() As System.Web.SiteMapNode

  80:          Return BuildSiteMap()

  81:      End Function

  82:      Protected Sub OnSiteMapChanged _

  83:      (key As String, value As Object, reason As CacheItemRemovedReason)

  84:          SyncLock siteMapLock

  85:              If String.Compare(key, CacheDependencyKey) = 0 Then

  86:                  ' Refresh the site map

  87:                  root = Nothing

  88:              End If

  89:          End SyncLock

  90:      End Sub

  91:      Public ReadOnly Property CachedDate() As Nullable(Of DateTime)

  92:          Get

  93:              Dim value As Object = HttpRuntime.Cache(CacheDependencyKey)

  94:              If value Is Nothing OrElse Not TypeOf value Is Nullable(Of DateTime) Then

  95:                  Return Nothing

  96:              Else

  97:                  Return CType(value, Nullable(Of DateTime))

  98:              End If

  99:          End Get

 100:      End Property

 101:  End Class

Let s start with exploring this class s BuildSiteMap method, which starts with a lock statement. The lock statement only allows one thread at a time to enter, thereby serializing access to its code and preventing two concurrent threads from stepping on one another s toes.

The class-level SiteMapNode variable root is used to cache the site map structure. When the site map is constructed for the first time, or for the first time after the underlying data has been modified, root will be Nothing and the site map structure will be constructed. The site map s root node is assigned to root during the construction process so that the next time this method is called, root will not be Nothing. Consequently, so long as root is not Nothing the site map structure will be returned to the caller without having to recreate it.

If root is Nothing, the site map structure is created from the product and category information. The site map is built by creating the SiteMapNode instances and then forming the hierarchy through calls to the StaticSiteMapProvider class s AddNode method. AddNode performs the internal bookkeeping, storing the assorted SiteMapNode instances in a Hashtable. Before we start constructing the hierarchy, we start by calling the Clear method, which clears out the elements from the internal Hashtable. Next, the ProductsBLL class s GetProducts method and the resulting ProductsDataTable are stored in local variables.

The site map s construction begins by creating the root node and assigning it to root. The overload of the SiteMapNode s constructor used here and throughout this BuildSiteMap is passed the following information:

A reference to the site map provider (Me).
The SiteMapNode s Key. This required value must be unique for each SiteMapNode.
The SiteMapNode s Url. Url is optional, but if provided, each SiteMapNode s Url value must be unique.
The SiteMapNode s Title, which is required.

The AddNode(root) method call adds the SiteMapNode root to the site map as the root. Next, each ProductRow in the ProductsDataTable is enumerated. If there already exists a SiteMapNode for the current product s category, it is referenced. Otherwise, a new SiteMapNode for the category is created and added as a child of the SiteMapNode``root through the AddNode(categoryNode, root) method call. After the appropriate category SiteMapNode node has been found or created, a SiteMapNode is created for the current product and added as a child of the category SiteMapNode via AddNode(productNode, categoryNode). Note that the category SiteMapNode s Url property value is ~/SiteMapProvider/ProductsByCategory.aspx?CategoryID=categoryID while the product SiteMapNode s Url property is assigned ~/SiteMapNode/ProductDetails.aspx?ProductID=productID.

[!NOTE] Those products that have a database NULL value for their CategoryID are grouped under a category SiteMapNode whose Title property is set to None and whose Url property is set to an empty string. I decided to set Url to an empty string since the ProductBLL class s GetProductsByCategory(categoryID) method currently lacks the capability to return just those products with a NULL CategoryID value. Also, I wanted to demonstrate how the navigation controls render a SiteMapNode that lacks a value for its Url property. I encourage you to extend this tutorial so that the None SiteMapNode s Url property points to ProductsByCategory.aspx, yet only displays the products with NULL CategoryID values.

After constructing the site map, an arbitrary object is added to the data cache using a SQL cache dependency on the Categories and Products tables through an AggregateCacheDependency object. We explored using SQL cache dependencies in the preceding tutorial, Using SQL Cache Dependencies. The custom site map provider, however, uses an overload of the data cache s Insert method that we ve yet to explore. This overload accepts as its final input parameter a delegate that is called when the object is removed from the cache. Specifically, we pass in a new CacheItemRemovedCallback delegate that points to the OnSiteMapChanged method defined further down in the NorthwindSiteMapProvider class.

[!NOTE] The in-memory representation of the site map is cached through the class-level variable root. Since there is only one instance of the custom site map provider class and since that instance is shared among all threads in the web application, this class variable serves as a cache. The BuildSiteMap method also uses the data cache, but only as a means to receive notification when the underlying database data in the Categories or Products tables changes. Note that the value put into the data cache is just the current date and time. The actual site map data is not put in the data cache.

The BuildSiteMap method completes by returning the root node of the site map.

The remaining methods are fairly straightforward. GetRootNodeCore is responsible for returning the root node. Since BuildSiteMap returns the root, GetRootNodeCore simply returns BuildSiteMap s return value. The OnSiteMapChanged method sets root back to Nothing when the cache item is removed. With root set back to Nothing, the next time BuildSiteMap is invoked, the site map structure will be rebuilt. Lastly, the CachedDate property returns the date and time value stored in the data cache, if such a value exists. This property can be used by a page developer to determine when the site map data was last cached.

Step 7: Registering the`NorthwindSiteMapProvider`

In order for our web application to use the NorthwindSiteMapProvider site map provider created in Step 6, we need to register it in the <siteMap> section of Web.config. Specifically, add the following markup within the <system.web> element in Web.config:

[!code-xmlMain]

   1:  <siteMap defaultProvider="AspNetXmlSiteMapProvider">

   2:    <providers>

   3:      <add name="Northwind" type="NorthwindSiteMapProvider" />

   4:    </providers>

   5:  </siteMap>

This markup does two things: first, it indicates that the built-in AspNetXmlSiteMapProvider is the default site map provider; second, it registers the custom site map provider created in Step 6 with the human-friendly name Northwind .

[!NOTE] For site map providers located in the application s App_Code folder, the value of the type attribute is simply the class name. Alternatively, the custom site map provider could have been created in a separate Class Library project with the compiled assembly placed in the web application s /Bin directory. In that case, the type attribute value would be Namespace.ClassName, AssemblyName .

After updating Web.config, take a moment to view any page from the tutorials in a browser. Note that the navigation interface on the left still shows the sections and tutorials defined in Web.sitemap. This is because we left AspNetXmlSiteMapProvider as the default provider. In order to create a navigation user interface element that uses the NorthwindSiteMapProvider, we’ll need to explicitly specify that the Northwind site map provider should be used. We’ll see how to accomplish this in Step 8.

Step 8: Displaying Site Map Information Using the Custom Site Map Provider

With the custom site map provider created and registered in Web.config, we re ready to add navigation controls to the Default.aspx, ProductsByCategory.aspx, and ProductDetails.aspx pages in the SiteMapProvider folder. Start by opening the Default.aspx page and drag a SiteMapPath from the Toolbox onto the Designer. The SiteMapPath control is located in the Navigation section of the Toolbox.

Figure 16: Add a SiteMapPath to Default.aspx (Click to view full-size image)

The SiteMapPath control displays a breadcrumb, indicating the current page s location within the site map. We added a SiteMapPath to the top of the master page back in the Master Pages and Site Navigation tutorial.

Take a moment to view this page through a browser. The SiteMapPath added in Figure 16 uses the default site map provider, pulling its data from Web.sitemap. Therefore, the breadcrumb shows Home > Customizing the Site Map, just like the breadcrumb in the upper-right corner.

Figure 17: The Breadcrumb Uses the Default Site Map Provider (Click to view full-size image)

To have the SiteMapPath added in Figure 16 use the custom site map provider we created in Step 6, set its SiteMapProvider property to Northwind, the name we assigned to the NorthwindSiteMapProvider in Web.config. Unfortunately, the Designer continues to use the default site map provider, but if you visit the page through a browser after making this property change you’ll see that the breadcrumb now uses the custom site map provider.

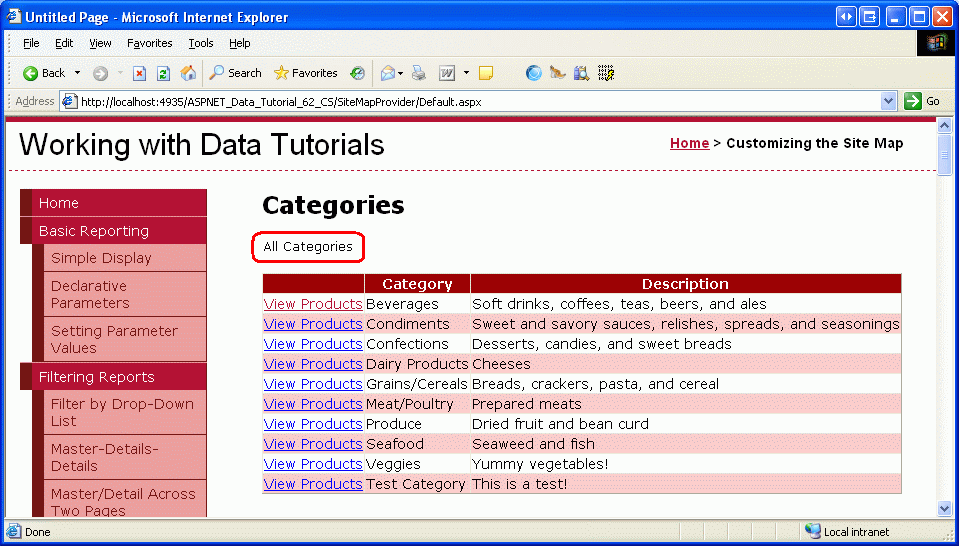

Figure 18: The Breadcrumb Now Uses the Custom Site Map Provider NorthwindSiteMapProvider (Click to view full-size image)

The SiteMapPath control displays a more functional user interface in the ProductsByCategory.aspx and ProductDetails.aspx pages. Add a SiteMapPath to these pages, setting the SiteMapProvider property in both to Northwind. From Default.aspx click on the View Products link for Beverages, and then on the View Details link for Chai Tea. As Figure 19 shows, the breadcrumb includes the current site map section ( Chai Tea ) and its ancestors: Beverages and All Categories .

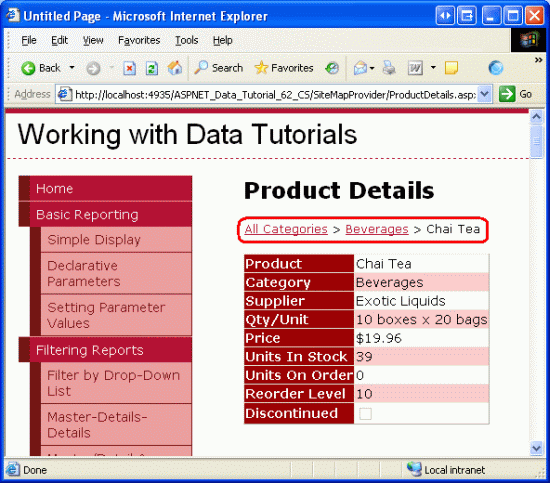

Figure 19: The Breadcrumb Now Uses the Custom Site Map Provider NorthwindSiteMapProvider (Click to view full-size image)

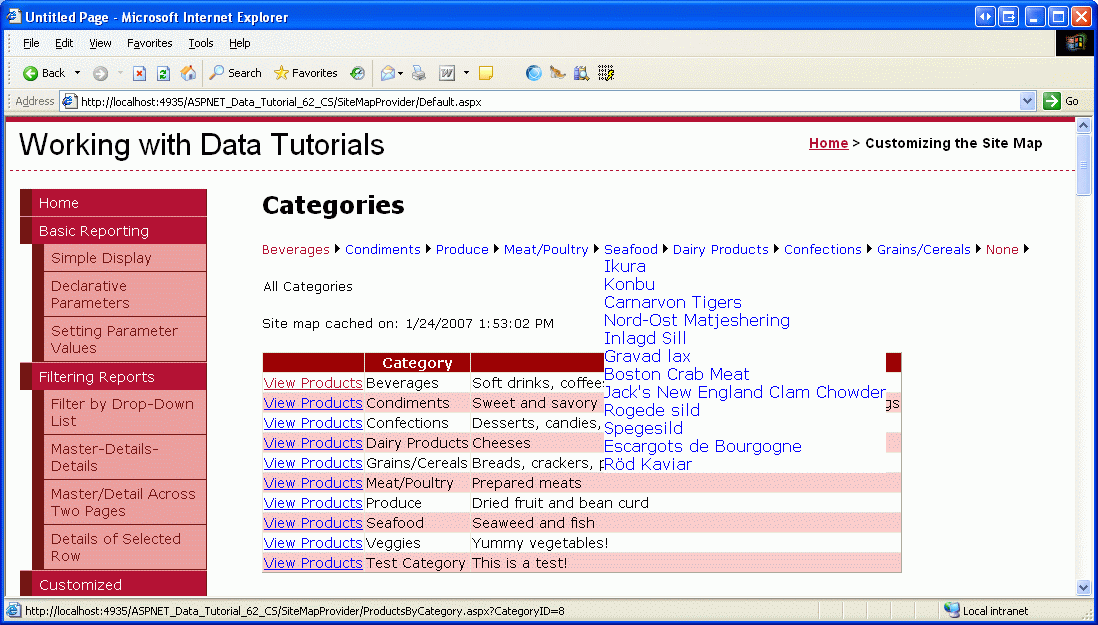

Other navigation user interface elements can be used in addition to the SiteMapPath, such as the Menu and TreeView controls. The Default.aspx, ProductsByCategory.aspx, and ProductDetails.aspx pages in the download for this tutorial, for example, all include Menu controls (see Figure 20). See Examining ASP.NET 2.0 s Site Navigation Features and the Using Site Navigation Controls section of the ASP.NET 2.0 QuickStarts for a more in-depth look at the navigation controls and site map system in ASP.NET 2.0.

Figure 20: The Menu Control Lists Each of the Categories and Products (Click to view full-size image)

As mentioned earlier in this tutorial, the site map structure can be accessed programmatically through the SiteMap class. The following code returns the root SiteMapNode of the default provider:

[!code-vbMain]

   1:  Dim root As SiteMapNode = SiteMap.RootNode

Since the AspNetXmlSiteMapProvider is the default provider for our application, the above code would return the root node defined in Web.sitemap. To reference a site map provider other than the default, use the SiteMap class s Providers property like so:

[!code-vbMain]

   1:  Dim root As SiteMapNode = SiteMap.Providers("name").RootNode

Where name is the name of the custom site map provider ( Northwind, for our web application).

To access a member specific to a site map provider, use SiteMap.Providers["name"] to retrieve the provider instance and then cast it to the appropriate type. For example, to display the NorthwindSiteMapProvider s CachedDate property in an ASP.NET page, use the following code:

[!code-vbMain]

   1:  Dim customProvider As NorthwindSiteMapProvider = _

   2:      TryCast(SiteMap.Providers("Northwind"), NorthwindSiteMapProvider)

   3:  If customProvider IsNot Nothing Then

   4:      Dim lastCachedDate As Nullable(Of DateTime) = customProvider.CachedDate

   5:      If lastCachedDate.HasValue Then

   6:          SiteMapLastCachedDate.Text = _

   7:              "Site map cached on: " & lastCachedDate.Value.ToString()

   8:      Else

   9:          SiteMapLastCachedDate.Text = "The site map is being reconstructed!"

  10:      End If

  11:  End If

[!NOTE] Be sure to test out the SQL cache dependency feature. After visiting the Default.aspx, ProductsByCategory.aspx, and ProductDetails.aspx pages, go to one of the tutorials in the Editing, Inserting, and Deleting section and edit the name of a category or product. Then return to one of the pages in the SiteMapProvider folder. Assuming enough time has passed for the polling mechanism to note the change to the underlying database, the site map should be updated to show the new product or category name.

Summary

ASP.NET 2.0 s site map features includes a SiteMap class, a number of built-in navigation Web controls, and a default site map provider that expects the site map information persisted to an XML file. In order to use site map information from some other source such as from a database, the application s architecture, or a remote Web service we need to create a custom site map provider. This involves creating a class that derives, directly or indirectly, from the SiteMapProvider class.

In this tutorial we saw how to create a custom site map provider that based the site map on the product and category information culled from the application architecture. Our provider extended the StaticSiteMapProvider class and entailed creating a BuildSiteMap method that retrieved the data, constructed the site map hierarchy, and cached the resulting structure in a class-level variable. We used a SQL cache dependency with a callback function to invalidate the cached structure when the underlying Categories or Products data is modified.

Happy Programming!

About the Author

Scott Mitchell, author of seven ASP/ASP.NET books and founder of 4GuysFromRolla.com, has been working with Microsoft Web technologies since 1998. Scott works as an independent consultant, trainer, and writer. His latest book is Sams Teach Yourself ASP.NET 2.0 in 24 Hours. He can be reached at mitchell@4GuysFromRolla.com. or via his blog, which can be found at http://ScottOnWriting.NET.

Special Thanks To

This tutorial series was reviewed by many helpful reviewers. Lead reviewers for this tutorial were Dave Gardner, Zack Jones, Teresa Murphy, and Bernadette Leigh. Interested in reviewing my upcoming MSDN articles? If so, drop me a line at mitchell@4GuysFromRolla.com.
