Limiting Data Modification Functionality Based on the User (C#)
Download Sample App or Download PDF
In a web application that allows users to edit data, different user accounts may have different data-editing privileges. In this tutorial we’ll examine how to dynamically adjust the data modification capabilities based on the visiting user.
Introduction
A number of web applications support user accounts and provide different options, reports, and functionality based on the logged in user. For example, with our tutorials we might want to allow users from the supplier companies to log on to the site and update general information about their products - their name and quantity per unit, perhaps - along with supplier information, such as their company name, address, the contact person s information, and so on. Furthermore, we might want to include some user accounts for people from our company so that they can log on and update product information like units on stock, reorder level, and so forth. Our web application might also allow anonymous users to visit (people who have not logged on), but would limit them to just viewing data. With such a user account system in place, we would want the data Web controls in our ASP.NET pages to offer the inserting, editing, and deleting capabilities appropriate for the currently logged on user.
In this tutorial we’ll examine how to dynamically adjust the data modification capabilities based on the visiting user. In particular, we’ll create a page that displays the suppliers information in an editable DetailsView along with a GridView that lists the products provided by the supplier. If the user visiting the page is from our company, they can: view any supplier s information; edit their address; and edit the information for any product provided by the supplier. If, however, the user is from a particular company, they can only view and edit their own address information and can only edit their products that have not been marked as discontinued.
Figure 1: A User from Our Company Can Edit Any Supplier s Information (Click to view full-size image)
Figure 2: A User from a Particular Supplier Can Only View and Edit their Information (Click to view full-size image)
Let s get started!
[!NOTE] ASP.NET 2.0 s membership system provides a standardized, extensible platform for creating, managing, and validating user accounts. Since an examination of the membership system is beyond the scope of these tutorials, this tutorial instead “fakes” membership by allowing anonymous visitors to choose whether they are from a particular supplier or from our company. For more on membership, refer to my Examining ASP.NET 2.0 s Membership, Roles, and Profile article series.
Step 1: Allowing the User to Specify their Access Rights
In a real-world web application, a user s account information would include whether they worked for our company or for a particular supplier, and this information would be programmatically accessible from our ASP.NET pages once the user has logged on to the site. This information could be captured through ASP.NET 2.0 s roles system, as user-level account information through the profile system, or through some custom means.
Since the aim of this tutorial is to demonstrate adjusting the data modification capabilities based on the logged on user, and is not meant to showcase ASP.NET 2.0 s membership, roles, and profile systems, we’ll use a very simply mechanism to determine the capabilities for the user visiting the page - a DropDownList from which the user can indicate if they should be able to view and edit any of the suppliers information or, alternatively, what particular supplier s information they can view and edit. If the user indicates that she can view and edit all supplier information (the default), she can page through all suppliers, edit any supplier s address information, and edit the name and quantity per unit for any product provided by the selected supplier. If the user indicates that she can only view and edit a particular supplier, however, then she can only view the details and products for that one supplier and can only update the name and quantity per unit information for those products that are not discontinued.
Our first step in this tutorial, then, is to create this DropDownList and populate it with the suppliers in the system. Open the UserLevelAccess.aspx page in the EditInsertDelete folder, add a DropDownList whose ID property is set to Suppliers, and bind this DropDownList to a new ObjectDataSource named AllSuppliersDataSource.

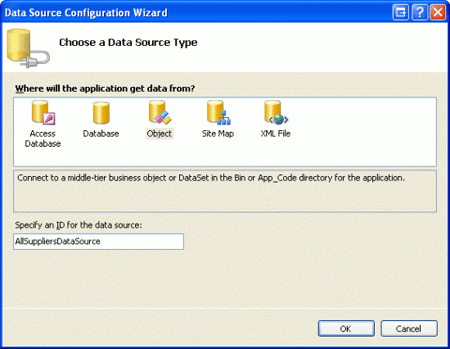

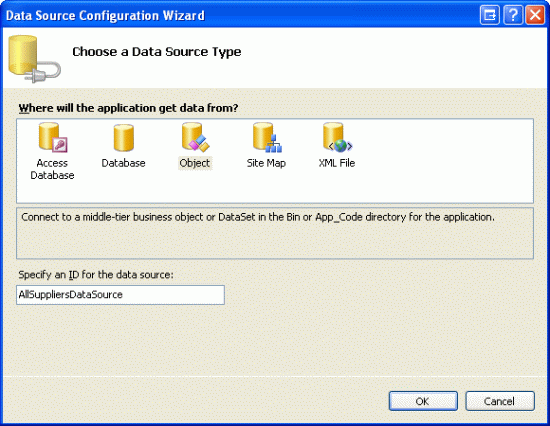

Figure 3: Create a New ObjectDataSource Named AllSuppliersDataSource (Click to view full-size image)
Since we want this DropDownList to include all suppliers, configure the ObjectDataSource to invoke the SuppliersBLL class s GetSuppliers() method. Also ensure that the ObjectDataSource s Update() method is mapped to the SuppliersBLL class s UpdateSupplierAddress method, as this ObjectDataSource will also be used by the DetailsView we’ll be adding in Step 2.
After completing the ObjectDataSource wizard, complete the steps by configuring the Suppliers DropDownList such that it shows the CompanyName data field and uses the SupplierID data field as the value for each ListItem.

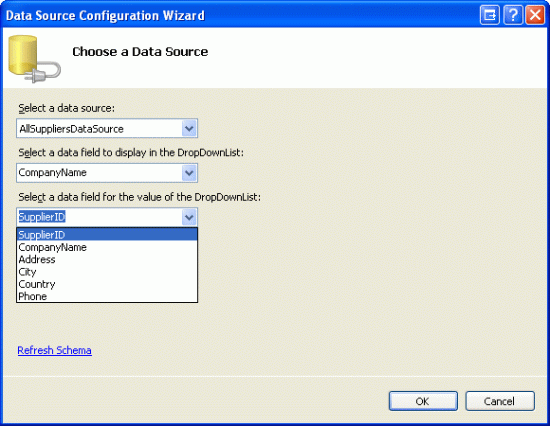

Figure 4: Configure the Suppliers DropDownList to Use the CompanyName and SupplierID Data Fields (Click to view full-size image)
At this point, the DropDownList lists the company names of the suppliers in the database. However, we also need to include a “Show/Edit ALL Suppliers” option to the DropDownList. To accomplish this, set the Suppliers DropDownList s AppendDataBoundItems property to true and then add a ListItem whose Text property is “Show/Edit ALL Suppliers” and whose value is -1. This can be added directly through the declarative markup or through the Designer by going to the Properties window and clicking on the ellipses in the DropDownList s Items property.
[!NOTE] Refer back to the Master/Detail Filtering With a DropDownList tutorial for a more detailed discussion on adding a Select All item to a databound DropDownList.
After the AppendDataBoundItems property has been set and the ListItem added, the DropDownList s declarative markup should look like:
[!code-aspxMain]
1: <asp:DropDownList ID="Suppliers" runat="server" AppendDataBoundItems="True"
2: DataSourceID="AllSuppliersDataSource" DataTextField="CompanyName"
3: DataValueField="SupplierID">
4: <asp:ListItem Value="-1">Show/Edit ALL Suppliers</asp:ListItem>
5: </asp:DropDownList>
Figure 5 shows a screen shot of our current progress, when viewed through a browser.

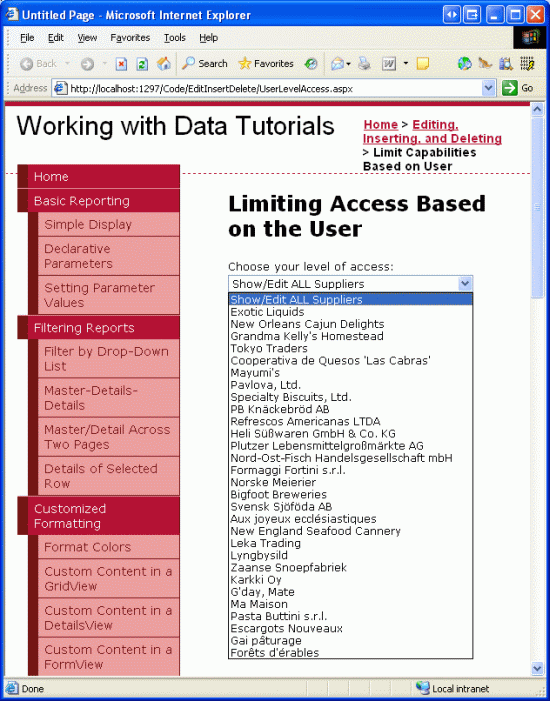

Figure 5: The Suppliers DropDownList Contains a Show ALL ListItem, Plus One for Each Supplier (Click to view full-size image)
Since we want to update the user interface immediately after the user has changed their selection, set the Suppliers DropDownList s AutoPostBack property to true. In Step 2 we’ll create a DetailsView control that will show the information for the supplier(s) based on the DropDownList selection. Then, in Step 3, we’ll create an event handler for this DropDownList s SelectedIndexChanged event, in which we’ll add code that binds the appropriate supplier information to the DetailsView based upon the selected supplier.
Step 2: Adding a DetailsView Control
Let s use a DetailsView to show supplier information. For the user who can view and edit all suppliers, the DetailsView will support paging, allowing the user to step through the supplier information one record at a time. If the user works for a particular supplier, however, the DetailsView will show only that particular supplier s information and will not include a paging interface. In either case, the DetailsView needs to allow the user to edit the supplier s address, city, and country fields.
Add a DetailsView to the page beneath the Suppliers DropDownList, set its ID property to SupplierDetails, and bind it to the AllSuppliersDataSource ObjectDataSource created in the previous step. Next, check the Enable Paging and Enable Editing checkboxes from the DetailsView s smart tag.
[!NOTE] If you don t see an Enable Editing option in the DetailsView s smart tag it s because you did not map the ObjectDataSource s
Update()method to theSuppliersBLLclass sUpdateSupplierAddressmethod. Take a moment to go back and make this configuration change, after which the Enable Editing option should appear in the DetailsView s smart tag.
Since the SuppliersBLL class s UpdateSupplierAddress method only accepts four parameters - supplierID, address, city, and country - modify the DetailsView s BoundFields so that the CompanyName and Phone BoundFields are read-only. Additionally, remove the SupplierID BoundField altogether. Finally, the AllSuppliersDataSource ObjectDataSource currently has its OldValuesParameterFormatString property set to original_{0}. Take a moment to remove this property setting from the declarative syntax altogether, or set it to the default value, {0}.
After configuring the SupplierDetails DetailsView and AllSuppliersDataSource ObjectDataSource, we will have the following declarative markup:
[!code-aspxMain]
1: <asp:ObjectDataSource ID="AllSuppliersDataSource" runat="server"
2: SelectMethod="GetSuppliers" TypeName="SuppliersBLL"
3: UpdateMethod="UpdateSupplierAddress">
4: <UpdateParameters>
5: <asp:Parameter Name="supplierID" Type="Int32" />
6: <asp:Parameter Name="address" Type="String" />
7: <asp:Parameter Name="city" Type="String" />
8: <asp:Parameter Name="country" Type="String" />
9: </UpdateParameters>
10: </asp:ObjectDataSource>
11: <asp:DetailsView ID="SupplierDetails" runat="server" AllowPaging="True"
12: AutoGenerateRows="False" DataKeyNames="SupplierID"
13: DataSourceID="AllSuppliersDataSource">
14: <Fields>
15: <asp:BoundField DataField="CompanyName" HeaderText="Company"
16: ReadOnly="True" SortExpression="CompanyName" />
17: <asp:BoundField DataField="Address" HeaderText="Address"
18: SortExpression="Address" />
19: <asp:BoundField DataField="City" HeaderText="City"
20: SortExpression="City" />
21: <asp:BoundField DataField="Country" HeaderText="Country"
22: SortExpression="Country" />
23: <asp:BoundField DataField="Phone" HeaderText="Phone" ReadOnly="True"
24: SortExpression="Phone" />
25: <asp:CommandField ShowEditButton="True" />
26: </Fields>
27: </asp:DetailsView>
At this point the DetailsView can be paged through and the selected supplier s address information can be updated, regardless of the selection made in the Suppliers DropDownList (see Figure 6).

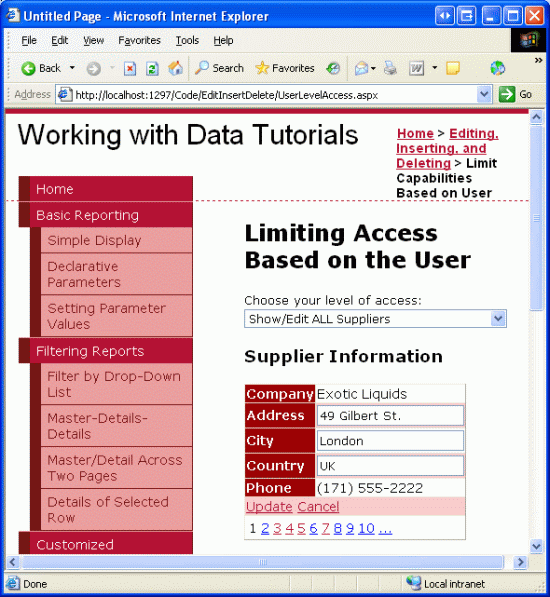

Figure 6: Any Suppliers Information Can Be Viewed, and Its Address Updated (Click to view full-size image)
Step 3: Displaying Only the Selected Supplier s Information
Our page currently displays the information for all suppliers regardless of whether a particular supplier has been selected from the Suppliers DropDownList. In order to display just the supplier information for the selected supplier we need to add another ObjectDataSource to our page, one that retrieves information about a particular supplier.
Add a new ObjectDataSource to the page, naming it SingleSupplierDataSource. From its smart tag, click the Configure Data Source link and have it use the SuppliersBLL class s GetSupplierBySupplierID(supplierID) method. As with the AllSuppliersDataSource ObjectDataSource, have the SingleSupplierDataSource ObjectDataSource s Update() method mapped to the SuppliersBLL class s UpdateSupplierAddress method.

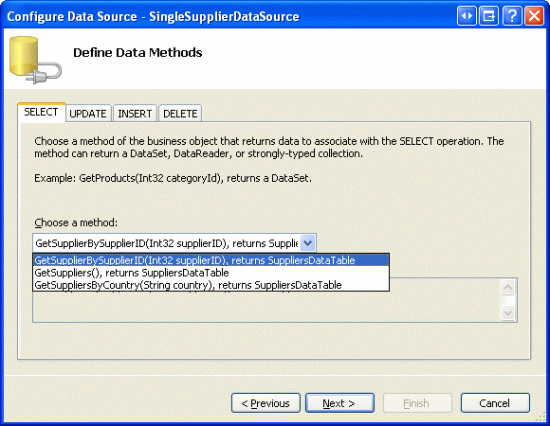

Figure 7: Configure the SingleSupplierDataSource ObjectDataSource to Use the GetSupplierBySupplierID(supplierID) Method (Click to view full-size image)
Next, we re prompted to specify the parameter source for the GetSupplierBySupplierID(supplierID) method s supplierID input parameter. Since we want to show the information for the supplier selected from the DropDownList, use the Suppliers DropDownList s SelectedValue property as the parameter source.

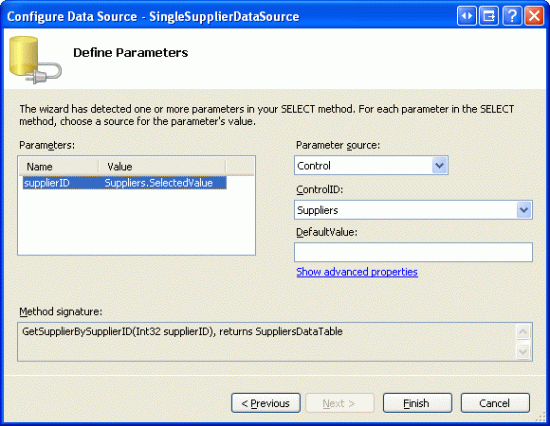

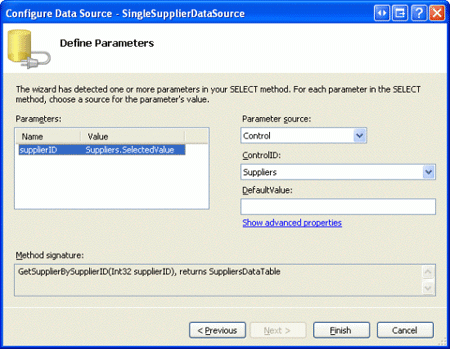

Figure 8: Use the Suppliers DropDownList as the supplierID Parameter Source (Click to view full-size image)
Even with this second ObjectDataSource added, the DetailsView control is currently configured to always use the AllSuppliersDataSource ObjectDataSource. We need to add logic to adjust the data source used by the DetailsView depending on the Suppliers DropDownList item selected. To accomplish this, create a SelectedIndexChanged event handler for the Suppliers DropDownList. This can most easily be created by double-clicking the DropDownList in the Designer. This event handler needs to determine what data source to use and must rebind the data to the DetailsView. This is accomplished with the following code:
[!code-csharpMain]
1: protected void Suppliers_SelectedIndexChanged(object sender, EventArgs e)
2: {
3: if (Suppliers.SelectedValue == "-1")
4: {
5: // The "Show/Edit ALL" option has been selected
6: SupplierDetails.DataSourceID = "AllSuppliersDataSource";
7: // Reset the page index to show the first record
8: SupplierDetails.PageIndex = 0;
9: }
10: else
11: // The user picked a particular supplier
12: SupplierDetails.DataSourceID = "SingleSupplierDataSource";
13: // Ensure that the DetailsView is in read-only mode
14: SupplierDetails.ChangeMode(DetailsViewMode.ReadOnly);
15: // Need to "refresh" the DetailsView
16: SupplierDetails.DataBind();
17: }
The event handler begins by determining whether the “Show/Edit ALL Suppliers” option was selected. If it was, it sets the SupplierDetails DetailsView s DataSourceID to AllSuppliersDataSource and returns the user to the first record in the set of suppliers by setting the PageIndex property to 0. If, however, the user has selected a particular supplier from the DropDownList, the DetailsView s DataSourceID is assigned to SingleSuppliersDataSource. Regardless of what data source is used, the SuppliersDetails mode is reverted back to the read-only mode and the data is rebound to the DetailsView by a call to the SuppliersDetails control s DataBind() method.
With this event handler in place, the DetailsView control now shows the selected supplier, unless the “Show/Edit ALL Suppliers” option was selected, in which case all of the suppliers can be viewed through the paging interface. Figure 9 shows the page with the “Show/Edit ALL Suppliers” option selected; note that the paging interface is present, allowing the user to visit and update any supplier. Figure 10 shows the page with the Ma Maison supplier selected. Only Ma Maison s information is viewable and editable in this case.

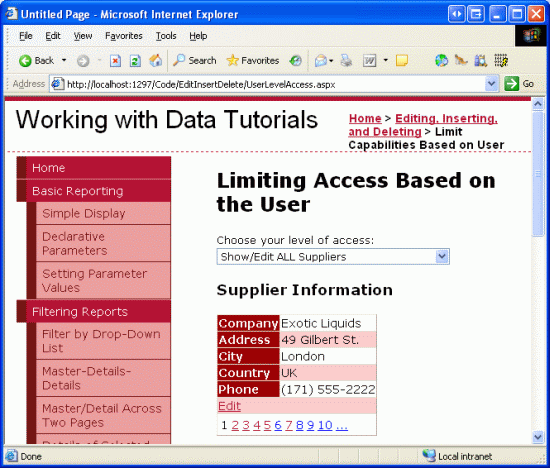

Figure 9: All of the Suppliers Information Can Be Viewed and Edited (Click to view full-size image)

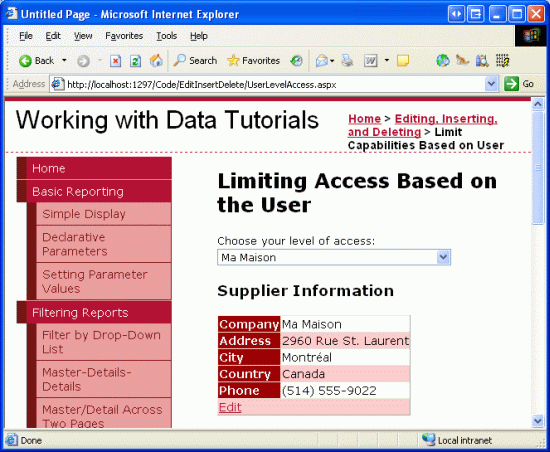

Figure 10: Only the Selected Supplier s Information Can Be Viewed and Edited (Click to view full-size image)
[!NOTE] For this tutorial, both the DropDownList and DetailsView control s
EnableViewStatemust be set totrue(the default) because the DropDownList sSelectedIndexand the DetailsView sDataSourceIDproperty s changes must be remembered across postbacks.
Step 4: Listing the Suppliers Products in an Editable GridView
With the DetailsView complete, our next step is to include an editable GridView that lists those products provided by the selected supplier. This GridView should allow edits to only the ProductName and QuantityPerUnit fields. Moreover, if the user visiting the page is from a particular supplier, it should only allow updates to those products that are not discontinued. To accomplish this we’ll need to first add an overload of the ProductsBLL class s UpdateProducts method that takes in just the ProductID, ProductName, and QuantityPerUnit fields as inputs. We ve stepped through this process beforehand in numerous tutorials, so let s just look at the code here, which should be added to ProductsBLL:
[!code-csharpMain]
1: [System.ComponentModel.DataObjectMethodAttribute(
2: System.ComponentModel.DataObjectMethodType.Update, false)]
3: public bool UpdateProduct(string productName, string quantityPerUnit, int productID)
4: {
5: Northwind.ProductsDataTable products = Adapter.GetProductByProductID(productID);
6: if (products.Count == 0)
7: // no matching record found, return false
8: return false;
9: Northwind.ProductsRow product = products[0];
10: product.ProductName = productName;
11: if (quantityPerUnit == null)
12: product.SetQuantityPerUnitNull();
13: else
14: product.QuantityPerUnit = quantityPerUnit;
15: // Update the product record
16: int rowsAffected = Adapter.Update(product);
17: // Return true if precisely one row was updated, otherwise false
18: return rowsAffected == 1;
19: }
With this overload created, we re ready to add the GridView control and its associated ObjectDataSource. Add a new GridView to the page, set its ID property to ProductsBySupplier, and configure it to use a new ObjectDataSource named ProductsBySupplierDataSource. Since we want this GridView to list those products by the selected supplier, use the ProductsBLL class s GetProductsBySupplierID(supplierID) method. Also map the Update() method to the new UpdateProduct overload we just created.

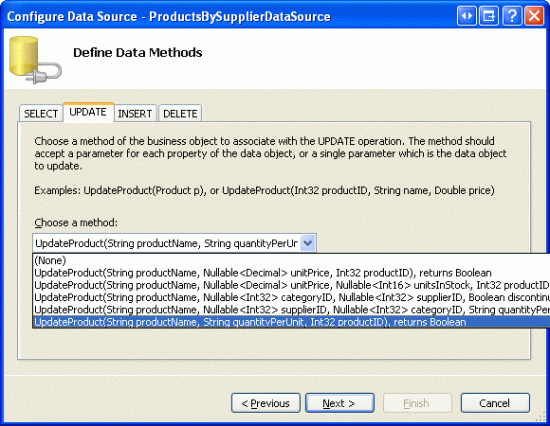

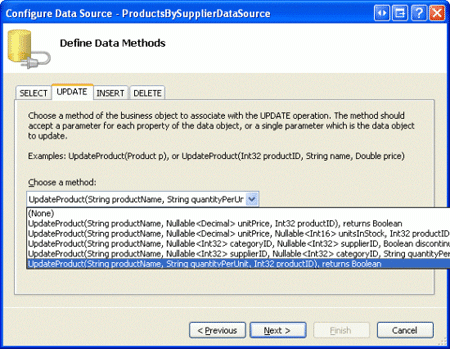

Figure 11: Configure the ObjectDataSource to Use the UpdateProduct Overload Just Created (Click to view full-size image)
We re prompted to select the parameter source for the GetProductsBySupplierID(supplierID) method s supplierID input parameter. Since we want to show the products for the supplier selected in the DetailsView, use the SuppliersDetails DetailsView control s SelectedValue property as the parameter source.

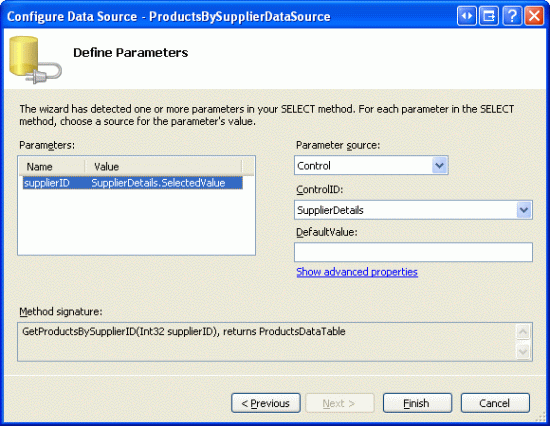

Figure 12: Use the SuppliersDetails DetailsView s SelectedValue Property as the Parameter Source (Click to view full-size image)
Returning to the GridView, remove all of the GridView fields except for ProductName, QuantityPerUnit, and Discontinued, marking the Discontinued CheckBoxField as read-only. Also, check the Enable Editing option from the GridView s smart tag. After these changes have been made, the declarative markup for the GridView and ObjectDataSource should look similar to the following:
[!code-aspxMain]
1: <asp:GridView ID="ProductsBySupplier" runat="server" AutoGenerateColumns="False"
2: DataKeyNames="ProductID" DataSourceID="ProductsBySupplierDataSource">
3: <Columns>
4: <asp:CommandField ShowEditButton="True" />
5: <asp:BoundField DataField="ProductName" HeaderText="Product"
6: SortExpression="ProductName" />
7: <asp:BoundField DataField="QuantityPerUnit" HeaderText="Qty/Unit"
8: SortExpression="QuantityPerUnit" />
9: <asp:CheckBoxField DataField="Discontinued" HeaderText="Discontinued"
10: ReadOnly="True" SortExpression="Discontinued" />
11: </Columns>
12: </asp:GridView>
13: <asp:ObjectDataSource ID="ProductsBySupplierDataSource" runat="server"
14: OldValuesParameterFormatString="original_{0}" TypeName="ProductsBLL"
15: SelectMethod="GetProductsBySupplierID" UpdateMethod="UpdateProduct">
16: <UpdateParameters>
17: <asp:Parameter Name="productName" Type="String" />
18: <asp:Parameter Name="quantityPerUnit" Type="String" />
19: <asp:Parameter Name="productID" Type="Int32" />
20: </UpdateParameters>
21: <SelectParameters>
22: <asp:ControlParameter ControlID="SupplierDetails" Name="supplierID"
23: PropertyName="SelectedValue" Type="Int32" />
24: </SelectParameters>
25: </asp:ObjectDataSource>
As with our previous ObjectDataSources, this one s OldValuesParameterFormatString property is set to original_{0}, which will cause problems when attempting to update a product s name or quantity per unit. Remove this property from the declarative syntax altogether or set it to its default, {0}.
With this configuration complete, our page now lists the products provided by the supplier selected in the GridView (see Figure 13). Currently any product s name or quantity per unit can be updated. However, we need to update our page logic so that such functionality is prohibited for discontinued products for users associated with a particular supplier. We’ll tackle this final piece in Step 5.
Figure 13: The Products Provided by the Selected Supplier are Displayed (Click to view full-size image)
[!NOTE] With the addition of this editable GridView the
SuppliersDropDownList sSelectedIndexChangedevent handler should be updated to return the GridView to a read-only state. Otherwise, if a different supplier is selected while in the middle of editing product information, the corresponding index in the GridView for the new supplier will also be editable. To prevent this, simply set the GridView sEditIndexproperty to-1in theSelectedIndexChangedevent handler.
Also, recall that it is important that the GridView s view state be enabled (the default behavior). If you set the GridView s EnableViewState property to false, you run the risk of having concurrent users unintentionally deleting or editing records. See WARNING: Concurrency Issue with ASP.NET 2.0 GridViews/DetailsView/FormViews that Support Editing and/or Deleting and Whose View State is Disabled for more information.
Step 5: Disallow Editing for Discontinued Products When Show/Edit ALL Suppliers is Not Selected
While the ProductsBySupplier GridView is fully functional, it currently grants too much access to those users who are from a particular supplier. Per our business rules, such users should not be able to update discontinued products. To enforce this, we can hide (or disable) the Edit button in those GridView rows with discontinued products when the page is being visited by a user from a supplier.
Create an event handler for the GridView s RowDataBound event. In this event handler we need to determine whether or not the user is associated with a particular supplier, which, for this tutorial, can be determined by checking the Suppliers DropDownList s SelectedValue property - if it s something other than -1, then the user is associated with a particular supplier. For such users, we then need to determine whether or not the product is discontinued. We can grab a reference to the actual ProductRow instance bound to the GridView row via the e.Row.DataItem property, as discussed in the Displaying Summary Information in the GridView s Footer tutorial. If the product is discontinued, we can grab a programmatic reference to the Edit button in the GridView s CommandField using the techniques discussed in the previous tutorial, Adding Client-Side Confirmation When Deleting. Once we have a reference we can then hide or disable the button.
[!code-csharpMain]
1: protected void ProductsBySupplier_RowDataBound(object sender, GridViewRowEventArgs e)
2: {
3: if (e.Row.RowType == DataControlRowType.DataRow)
4: {
5: // Is this a supplier-specific user?
6: if (Suppliers.SelectedValue != "-1")
7: {
8: // Get a reference to the ProductRow
9: Northwind.ProductsRow product =
10: (Northwind.ProductsRow)((System.Data.DataRowView)e.Row.DataItem).Row;
11: // Is this product discontinued?
12: if (product.Discontinued)
13: {
14: // Get a reference to the Edit LinkButton
15: LinkButton editButton = (LinkButton)e.Row.Cells[0].Controls[0];
16: // Hide the Edit button
17: editButton.Visible = false;
18: }
19: }
20: }
21: }
With this event handler in place, when visiting this page as a user from a specific supplier those products that are discontinued are not editable, as the Edit button is hidden for these products. For example, Chef Anton s Gumbo Mix is a discontinued product for the New Orleans Cajun Delights supplier. When visiting the page for this particular supplier, the Edit button for this product is hidden from sight (see Figure 14). However, when visiting using the “Show/Edit ALL Suppliers,” the Edit button is available (see Figure 15).

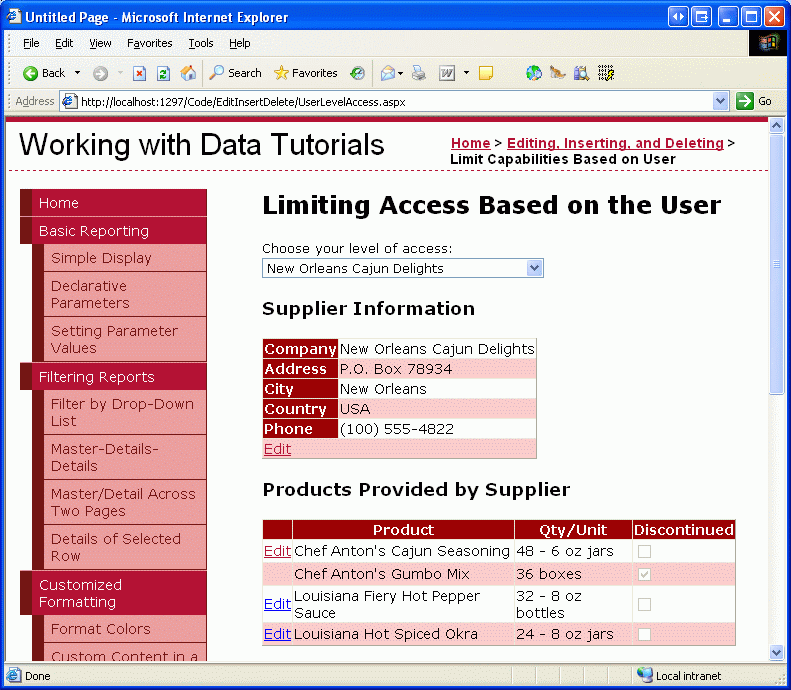

Figure 14: For Supplier-Specific Users the Edit Button for Chef Anton s Gumbo Mix is Hidden (Click to view full-size image)

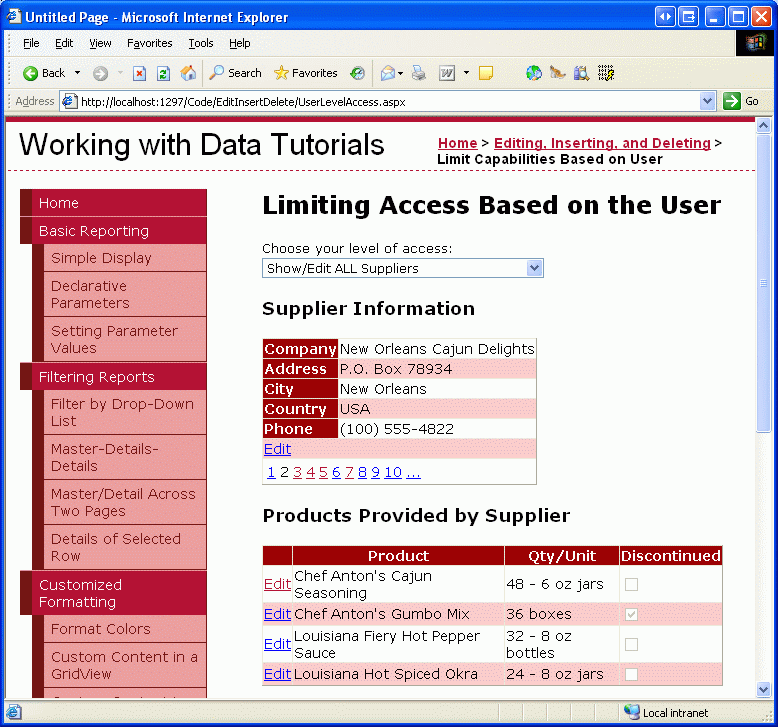

Figure 15: For Show/Edit ALL Suppliers Users, the Edit Button for Chef Anton s Gumbo Mix is Displayed (Click to view full-size image)
Checking for Access Rights in the Business Logic Layer
In this tutorial the ASP.NET page handles all logic with regards to what information the user can see and what products he can update. Ideally, this logic would also be present at the Business Logic Layer. For example, the SuppliersBLL class s GetSuppliers() method (which returns all suppliers) might include a check to ensure that the currently logged on user is not associated with a specific supplier. Likewise, the UpdateSupplierAddress method could include a check to ensure that the currently logged on user either worked for our company (and therefore can update all suppliers address information) or is associated with the supplier whose data is being updated.
I did not include such BLL-layer checks here because in our tutorial the user s rights are determined by a DropDownList on the page, which the BLL classes cannot access. When using the membership system or one of the out-of-the box authentication schemes provided by ASP.NET (such as Windows authentication), the currently logged on user s information and roles information can be accessed from the BLL, thereby making such access rights checks possible at both the presentation and BLL layers.
Summary
Most sites that provide user accounts need to customize the data modification interface based upon the logged in user. Administrative users may be able to delete and edit any record, whereas non-administrative users may be limited to only updating or deleting records they created themselves. Whatever the scenario may be, the data Web controls, ObjectDataSource, and Business Logic Layer classes can be extended to add or deny certain functionality based on the logged on user. In this tutorial we saw how to limit the viewable and editable data depending on whether the user was associated with a particular supplier or if they worked for our company.
This tutorial concludes our examination of inserting, updating, and deleting data using the GridView, DetailsView, and FormView controls. Starting with the next tutorial, we’ll turn our attention to adding paging and sorting support.
Happy Programming!
