Creating a Data Access Layer (C#)

by Scott Mitchell

Download Sample App or Download PDF

In this tutorial we’ll start from the very beginning and create the Data Access Layer (DAL), using typed DataSets, to access the information in a database.

Introduction

As web developers, our lives revolve around working with data. We create databases to store the data, code to retrieve and modify it, and web pages to collect and summarize it. This is the first tutorial in a lengthy series that will explore techniques for implementing these common patterns in ASP.NET 2.0. We’ll start with creating a software architecture composed of a Data Access Layer (DAL) using Typed DataSets, a Business Logic Layer (BLL) that enforces custom business rules, and a presentation layer composed of ASP.NET pages that share a common page layout. Once this backend groundwork has been laid, we’ll move into reporting, showing how to display, summarize, collect, and validate data from a web application. These tutorials are geared to be concise and provide step-by-step instructions with plenty of screen shots to walk you through the process visually. Each tutorial is available in C# and Visual Basic versions and includes a download of the complete code used. (This first tutorial is quite lengthy, but the rest are presented in much more digestible chunks.)

For these tutorials we’ll be using a Microsoft SQL Server 2005 Express Edition version of the Northwind database placed in the App_Data directory. In addition to the database file, the App_Data folder also contains the SQL scripts for creating the database, in case you want to use a different database version. These scripts can be also be downloaded directly from Microsoft, if you’d prefer. If you use a different SQL Server version of the Northwind database, you will need to update the NORTHWNDConnectionString setting in the application’s Web.config file. The web application was built using Visual Studio 2005 Professional Edition as a file system-based Web site project. However, all of the tutorials will work equally well with the free version of Visual Studio 2005, Visual Web Developer.

In this tutorial we’ll start from the very beginning and create the Data Access Layer (DAL), followed by creating the Business Logic Layer (BLL) in the second tutorial, and working on page layout and navigation in the third. The tutorials after the third one will build upon the foundation laid in the first three. We’ve got a lot to cover in this first tutorial, so fire up Visual Studio and let’s get started!

Step 1: Creating a Web Project and Connecting to the Database

Before we can create our Data Access Layer (DAL), we first need to create a web site and setup our database. Start by creating a new file system-based ASP.NET web site. To accomplish this, go to the File menu and choose New Web Site, displaying the New Web Site dialog box. Choose the ASP.NET Web Site template, set the Location drop-down list to File System, choose a folder to place the web site, and set the language to C#.

Create a New File System-Based Web Site

Figure 1: Create a New File System-Based Web Site (Click to view full-size image)

This will create a new web site with a Default.aspx ASP.NET page and an App_Data folder.

With the web site created, the next step is to add a reference to the database in Visual Studio’s Server Explorer. By adding a database to the Server Explorer you can add tables, stored procedures, views, and so on all from within Visual Studio. You can also view table data or create your own queries either by hand or graphically via the Query Builder. Furthermore, when we build the Typed DataSets for the DAL we’ll need to point Visual Studio to the database from which the Typed DataSets should be constructed. While we can provide this connection information at that point in time, Visual Studio automatically populates a drop-down list of the databases already registered in the Server Explorer.

The steps for adding the Northwind database to the Server Explorer depend on whether you want to use the SQL Server 2005 Express Edition database in the App_Data folder or if you have a Microsoft SQL Server 2000 or 2005 database server setup that you want to use instead.

Using a Database in theApp_DataFolder

If you do not have a SQL Server 2000 or 2005 database server to connect to, or you simply want to avoid having to add the database to a database server, you can use the SQL Server 2005 Express Edition version of the Northwind database that is located in the downloaded website’s App_Data folder (NORTHWND.MDF).

A database placed in the App_Data folder is automatically added to the Server Explorer. Assuming you have SQL Server 2005 Express Edition installed on your machine you should see a node named NORTHWND.MDF in the Server Explorer, which you can expand and explore its tables, views, stored procedure, and so on (see Figure 2).

The App_Data folder can also hold Microsoft Access .mdb files, which, like their SQL Server counterparts, are automatically added to the Server Explorer. If you don’t want to use any of the SQL Server options, you can always download a Microsoft Access version of the Northwind database file and drop into the App_Data directory. Keep in mind, however, that Access databases aren’t as feature-rich as SQL Server, and aren’t designed to be used in web site scenarios. Furthermore, a couple of the 35+ tutorials will utilize certain database-level features that aren’t supported by Access.

Connecting to the Database in a Microsoft SQL Server 2000 or 2005 Database Server

Alternatively, you may connect to a Northwind database installed on a database server. If the database server does not already have the Northwind database installed, you first must add it to database server by running the installation script included in this tutorial’s download or by downloading the SQL Server 2000 version of Northwind and installation script directly from Microsoft’s web site.

Once you have the database installed, go to the Server Explorer in Visual Studio, right-click on the Data Connections node, and choose Add Connection. If you don’t see the Server Explorer go to the View / Server Explorer, or hit Ctrl+Alt+S. This will bring up the Add Connection dialog box, where you can specify the server to connect to, the authentication information, and the database name. Once you have successfully configured the database connection information and clicked the OK button, the database will be added as a node underneath the Data Connections node. You can expand the database node to explore its tables, views, stored procedures, and so on.

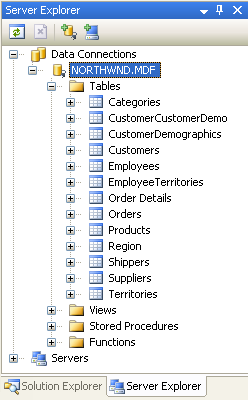

Add a Connection to Your Database Server’s Northwind Database
Add a Connection to Your Database Server’s Northwind Database

Figure 2: Add a Connection to Your Database Server’s Northwind Database

Step 2: Creating the Data Access Layer

When working with data one option is to embed the data-specific logic directly into the presentation layer (in a web application, the ASP.NET pages make up the presentation layer). This may take the form of writing ADO.NET code in the ASP.NET page’s code portion or using the SqlDataSource control from the markup portion. In either case, this approach tightly couples the data access logic with the presentation layer. The recommended approach, however, is to separate the data access logic from the presentation layer. This separate layer is referred to as the Data Access Layer, DAL for short, and is typically implemented as a separate Class Library project. The benefits of this layered architecture are well documented (see the “Further Readings” section at the end of this tutorial for information on these advantages) and is the approach we will take in this series.

All code that is specific to the underlying data source such as creating a connection to the database, issuing SELECT, INSERT, UPDATE, and DELETE commands, and so on should be located in the DAL. The presentation layer should not contain any references to such data access code, but should instead make calls into the DAL for any and all data requests. Data Access Layers typically contain methods for accessing the underlying database data. The Northwind database, for example, has Products and Categories tables that record the products for sale and the categories to which they belong. In our DAL we will have methods like:

These methods, when invoked, will connect to the database, issue the appropriate query, and return the results. How we return these results is important. These methods could simply return a DataSet or DataReader populated by the database query, but ideally these results should be returned using strongly-typed objects. A strongly-typed object is one whose schema is rigidly defined at compile time, whereas the opposite, a loosely-typed object, is one whose schema is not known until runtime.

For example, the DataReader and the DataSet (by default) are loosely-typed objects since their schema is defined by the columns returned by the database query used to populate them. To access a particular column from a loosely-typed DataTable we need to use syntax like: DataTable.Rows[index][“columnName”]. The DataTable’s loose typing in this example is exhibited by the fact that we need to access the column name using a string or ordinal index. A strongly-typed DataTable, on the other hand, will have each of its columns implemented as properties, resulting in code that looks like: DataTable.Rows[index].columnName.

To return strongly-typed objects, developers can either create their own custom business objects or use Typed DataSets. A business object is implemented by the developer as a class whose properties typically reflect the columns of the underlying database table the business object represents. A Typed DataSet is a class generated for you by Visual Studio based on a database schema and whose members are strongly-typed according to this schema. The Typed DataSet itself consists of classes that extend the ADO.NET DataSet, DataTable, and DataRow classes. In addition to strongly-typed DataTables, Typed DataSets now also include TableAdapters, which are classes with methods for populating the DataSet’s DataTables and propagating modifications within the DataTables back to the database.

[!NOTE] For more information on the advantages and disadvantages of using Typed DataSets versus custom business objects, refer to Designing Data Tier Components and Passing Data Through Tiers.

We’ll use strongly-typed DataSets for these tutorials’ architecture. Figure 3 illustrates the workflow between the different layers of an application that uses Typed DataSets.

All Data Access Code is Relegated to the DAL

Figure 3: All Data Access Code is Relegated to the DAL (Click to view full-size image)

Creating a Typed DataSet and Table Adapter

To begin creating our DAL, we start by adding a Typed DataSet to our project. To accomplish this, right-click on the project node in the Solution Explorer and choose Add a New Item. Select the DataSet option from the list of templates and name it Northwind.xsd.

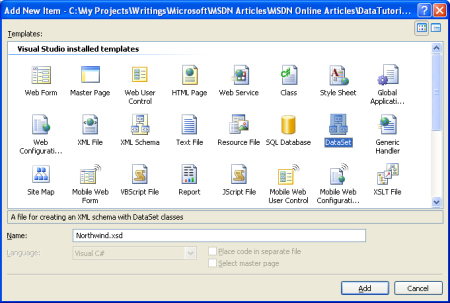

Choose to Add a New DataSet to Your Project

Figure 4: Choose to Add a New DataSet to Your Project (Click to view full-size image)

After clicking Add, when prompted to add the DataSet to the App_Code folder, choose Yes. The Designer for the Typed DataSet will then be displayed, and the TableAdapter Configuration Wizard will start, allowing you to add your first TableAdapter to the Typed DataSet.

A Typed DataSet serves as a strongly-typed collection of data; it is composed of strongly-typed DataTable instances, each of which is in turn composed of strongly-typed DataRow instances. We will create a strongly-typed DataTable for each of the underlying database tables that we need to work with in this tutorials series. Let’s start with creating a DataTable for the Products table.

Keep in mind that strongly-typed DataTables do not include any information on how to access data from their underlying database table. In order to retrieve the data to populate the DataTable, we use a TableAdapter class, which functions as our Data Access Layer. For our Products DataTable, the TableAdapter will contain the methods GetProducts(), GetProductByCategoryID(categoryID), and so on that we’ll invoke from the presentation layer. The DataTable’s role is to serve as the strongly-typed objects used to pass data between the layers.

The TableAdapter Configuration Wizard begins by prompting you to select which database to work with. The drop-down list shows those databases in the Server Explorer. If you did not add the Northwind database to the Server Explorer, you can click the New Connection button at this time to do so.

Choose the Northwind Database from the Drop-Down List

Figure 5: Choose the Northwind Database from the Drop-Down List (Click to view full-size image)

After selecting the database and clicking Next, you’ll be asked if you want to save the connection string in the Web.config file. By saving the connection string you’ll avoid having it hard coded in the TableAdapter classes, which simplifies things if the connection string information changes in the future. If you opt to save the connection string in the configuration file it’s placed in the <connectionStrings> section, which can be optionally encrypted for improved security or modified later through the new ASP.NET 2.0 Property Page within the IIS GUI Admin Tool, which is more ideal for administrators.

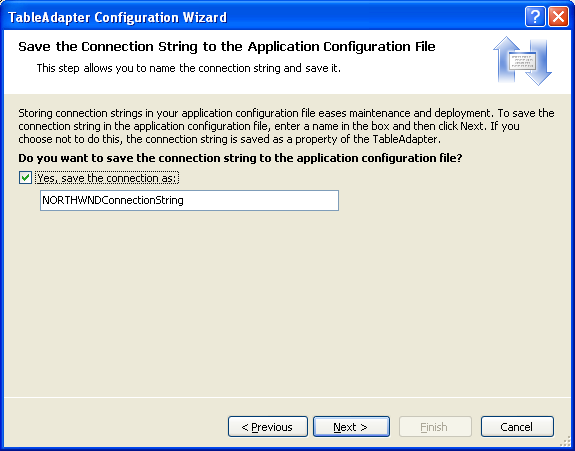

Save the Connection String to Web.config

Figure 6: Save the Connection String to Web.config (Click to view full-size image)

Next, we need to define the schema for the first strongly-typed DataTable and provide the first method for our TableAdapter to use when populating the strongly-typed DataSet. These two steps are accomplished simultaneously by creating a query that returns the columns from the table that we want reflected in our DataTable. At the end of the wizard we’ll give a method name to this query. Once that’s been accomplished, this method can be invoked from our presentation layer. The method will execute the defined query and populate a strongly-typed DataTable.

To get started defining the SQL query we must first indicate how we want the TableAdapter to issue the query. We can use an ad-hoc SQL statement, create a new stored procedure, or use an existing stored procedure. For these tutorials we’ll use ad-hoc SQL statements. Refer to Brian Noyes’s article, Build a Data Access Layer with the Visual Studio 2005 DataSet Designer for an example of using stored procedures.

Query the Data Using an Ad-Hoc SQL Statement

Figure 7: Query the Data Using an Ad-Hoc SQL Statement (Click to view full-size image)

At this point we can type in the SQL query by hand. When creating the first method in the TableAdapter you typically want to have the query return those columns that need to be expressed in the corresponding DataTable. We can accomplish this by creating a query that returns all columns and all rows from the Products table:

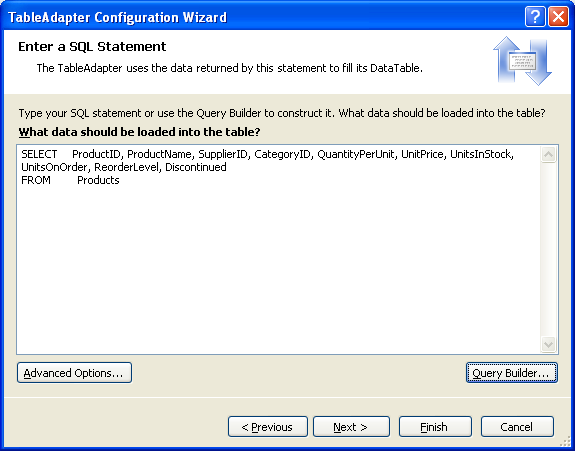

Enter the SQL Query Into the Textbox

Figure 8: Enter the SQL Query Into the Textbox (Click to view full-size image)

Alternatively, use the Query Builder and graphically construct the query, as shown in Figure 9.

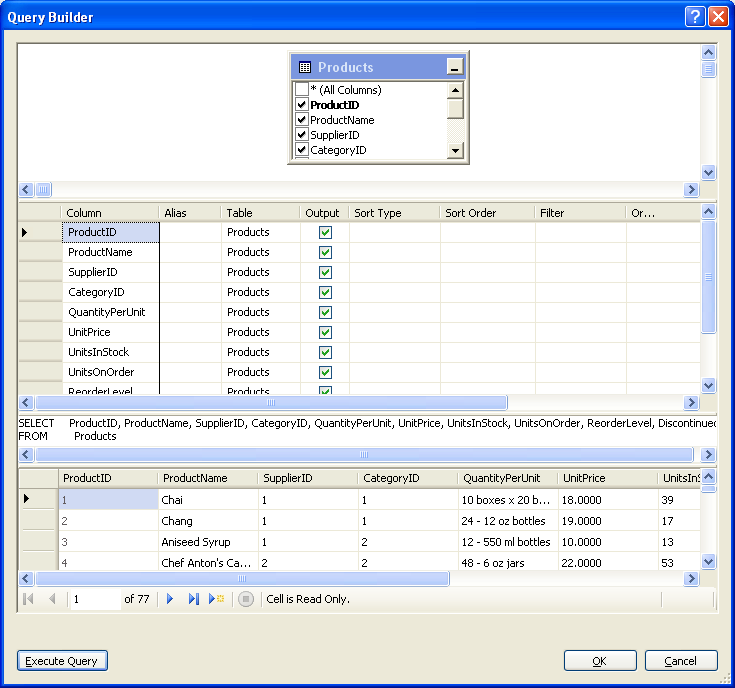

Create the Query Graphically, through the Query Editor

Figure 9: Create the Query Graphically, through the Query Editor (Click to view full-size image)

After creating the query, but before moving onto the next screen, click the Advanced Options button. In Web Site Projects, “Generate Insert, Update, and Delete statements” is the only advanced option selected by default; if you run this wizard from a Class Library or a Windows Project the “Use optimistic concurrency” option will also be selected. Leave the “Use optimistic concurrency” option unchecked for now. We’ll examine optimistic concurrency in future tutorials.

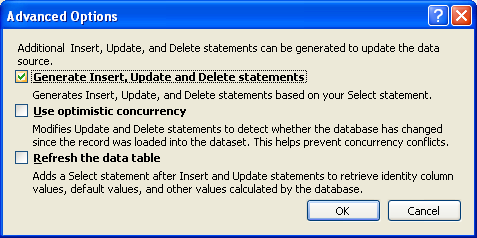

Select Only the Generate Insert, Update, and Delete statements Option

Figure 10: Select Only the Generate Insert, Update, and Delete statements Option (Click to view full-size image)

After verifying the advanced options, click Next to proceed to the final screen. Here we are asked to select which methods to add to the TableAdapter. There are two patterns for populating data:

You can have the TableAdapter implement one or both of these patterns. You can also rename the methods provided here. Let’s leave both checkboxes checked, even though we’ll only be using the latter pattern throughout these tutorials. Also, let’s rename the rather generic GetData method to GetProducts.

If checked, the final checkbox, “GenerateDBDirectMethods,” creates Insert(), Update(), and Delete() methods for the TableAdapter. If you leave this option unchecked, all updates will need to be done through the TableAdapter’s sole Update() method, which takes in the Typed DataSet, a DataTable, a single DataRow, or an array of DataRows. (If you’ve unchecked the “Generate Insert, Update, and Delete statements” option from the advanced properties in Figure 9 this checkbox’s setting will have no effect.) Let’s leave this checkbox selected.

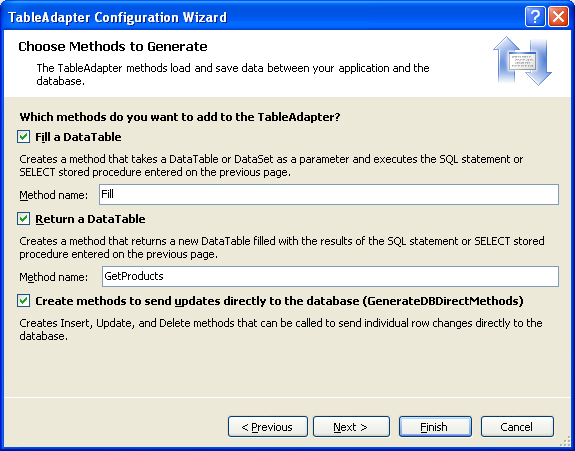

Change the Method Name from GetData to GetProducts

Figure 11: Change the Method Name from GetData to GetProducts (Click to view full-size image)

Complete the wizard by clicking Finish. After the wizard closes we are returned to the DataSet Designer which shows the DataTable we just created. You can see the list of columns in the Products DataTable (ProductID, ProductName, and so on), as well as the methods of the ProductsTableAdapter (Fill() and GetProducts()).

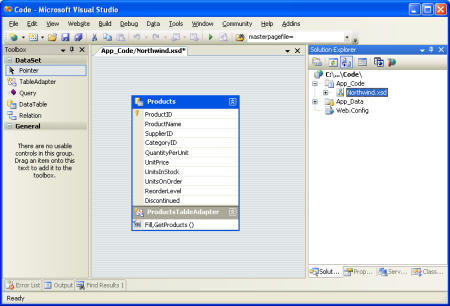

The Products DataTable and ProductsTableAdapter have been Added to the Typed DataSet

Figure 12: The Products DataTable and ProductsTableAdapter have been Added to the Typed DataSet (Click to view full-size image)

At this point we have a Typed DataSet with a single DataTable (Northwind.Products) and a strongly-typed DataAdapter class (NorthwindTableAdapters.ProductsTableAdapter) with a GetProducts() method. These objects can be used to access a list of all products from code like:

[!code-htmlMain]

   1:  NorthwindTableAdapters.ProductsTableAdapter productsAdapter =
   2:      new NorthwindTableAdapters.ProductsTableAdapter();
   3:  Northwind.ProductsDataTable products;
   4:  products = productsAdapter.GetProducts();
   5:  foreach (Northwind.ProductsRow productRow in products)
   6:      Response.Write("Product: " + productRow.ProductName + "<br />");

This code did not require us to write one bit of data access-specific code. We did not have to instantiate any ADO.NET classes, we didn’t have to refer to any connection strings, SQL queries, or stored procedures. Instead, the TableAdapter provides the low-level data access code for us.

Each object used in this example is also strongly-typed, allowing Visual Studio to provide IntelliSense and compile-time type checking. And best of all the DataTables returned by the TableAdapter can be bound to ASP.NET data Web controls, such as the GridView, DetailsView, DropDownList, CheckBoxList, and several others. The following example illustrates binding the DataTable returned by the GetProducts() method to a GridView in just a scant three lines of code within the Page_Load event handler.

AllProducts.aspx

[!code-aspxMain]

   1:  <%@ Page Language="C#" AutoEventWireup="true" CodeFile="AllProducts.aspx.cs"
   2:      Inherits="AllProducts" %>
   3:  <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
   4:      "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
   5:  <html xmlns="http://www.w3.org/1999/xhtml" >
   6:  <head runat="server">
   7:      <title>View All Products in a GridView</title>
   8:      <link href="Styles.css" rel="stylesheet" type="text/css" />
   9:  </head>
  10:  <body>
  11:      <form id="form1" runat="server">
  12:      <div>
  13:          <h2>
  14:              All Products</h2>
  15:          <p>
  16:              <asp:GridView ID="GridView1" runat="server"
  17:               CssClass="DataWebControlStyle">
  18:                 <HeaderStyle CssClass="HeaderStyle" />
  19:                 <AlternatingRowStyle CssClass="AlternatingRowStyle" />
  20:              </asp:GridView>
  21:               </p>
  22:      </div>
  23:      </form>
  24:  </body>
  25:  </html>

AllProducts.aspx.cs

[!code-csharpMain]

   1:  using System;
   2:  using System.Data;
   3:  using System.Configuration;
   4:  using System.Collections;
   5:  using System.Web;
   6:  using System.Web.Security;
   7:  using System.Web.UI;
   8:  using System.Web.UI.WebControls;
   9:  using System.Web.UI.WebControls.WebParts;
  10:  using System.Web.UI.HtmlControls;
  11:  using NorthwindTableAdapters;
  12:  public partial class AllProducts : System.Web.UI.Page
  13:  {
  14:      protected void Page_Load(object sender, EventArgs e)
  15:      {
  16:          ProductsTableAdapter productsAdapter = new
  17:           ProductsTableAdapter();
  18:          GridView1.DataSource = productsAdapter.GetProducts();
  19:          GridView1.DataBind();
  20:      }
  21:  }

The List of Products is Displayed in a GridView

Figure 13: The List of Products is Displayed in a GridView (Click to view full-size image)

While this example required that we write three lines of code in our ASP.NET page’s Page_Load event handler, in future tutorials we’ll examine how to use the ObjectDataSource to declaratively retrieve the data from the DAL. With the ObjectDataSource we’ll not have to write any code and will get paging and sorting support as well!

Step 3: Adding Parameterized Methods to the Data Access Layer

At this point our ProductsTableAdapter class has but one method, GetProducts(), which returns all of the products in the database. While being able to work with all products is definitely useful, there are times when we’ll want to retrieve information about a specific product, or all products that belong to a particular category. To add such functionality to our Data Access Layer we can add parameterized methods to the TableAdapter.

Let’s add the GetProductsByCategoryID(categoryID) method. To add a new method to the DAL, return to the DataSet Designer, right-click in the ProductsTableAdapter section, and choose Add Query.

Right-Click on the TableAdapter and Choose Add Query
Right-Click on the TableAdapter and Choose Add Query

Figure 14: Right-Click on the TableAdapter and Choose Add Query

We are first prompted about whether we want to access the database using an ad-hoc SQL statement or a new or existing stored procedure. Let’s choose to use an ad-hoc SQL statement again. Next, we are asked what type of SQL query we’d like to use. Since we want to return all products that belong to a specified category, we want to write a SELECT statement which returns rows.

Choose to Create a SELECT Statement Which Returns Rows

Figure 15: Choose to Create a SELECT Statement Which Returns Rows (Click to view full-size image)

The next step is to define the SQL query used to access the data. Since we want to return only those products that belong to a particular category, I use the same SELECT statement from GetProducts(), but add the following WHERE clause: WHERE CategoryID = @CategoryID. The @CategoryID parameter indicates to the TableAdapter wizard that the method we’re creating will require an input parameter of the corresponding type (namely, a nullable integer).

Enter a Query to Only Return Products in a Specified Category

Figure 16: Enter a Query to Only Return Products in a Specified Category (Click to view full-size image)

In the final step we can choose which data access patterns to use, as well as customize the names of the methods generated. For the Fill pattern, let’s change the name to FillByCategoryID and for the return a DataTable return pattern (the GetX methods), let’s use GetProductsByCategoryID.

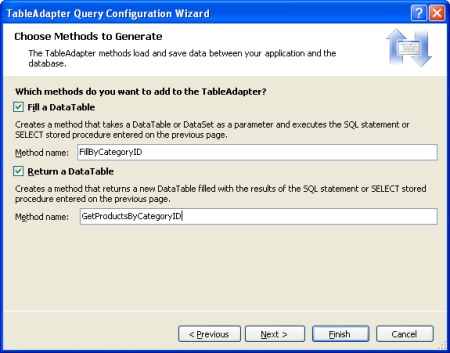

Choose the Names for the TableAdapter Methods

Figure 17: Choose the Names for the TableAdapter Methods (Click to view full-size image)

After completing the wizard, the DataSet Designer includes the new TableAdapter methods.

The Products Can Now be Queried by Category
The Products Can Now be Queried by Category

Figure 18: The Products Can Now be Queried by Category

Take a moment to add a GetProductByProductID(productID) method using the same technique.

These parameterized queries can be tested directly from the DataSet Designer. Right-click on the method in the TableAdapter and choose Preview Data. Next, enter the values to use for the parameters and click Preview.

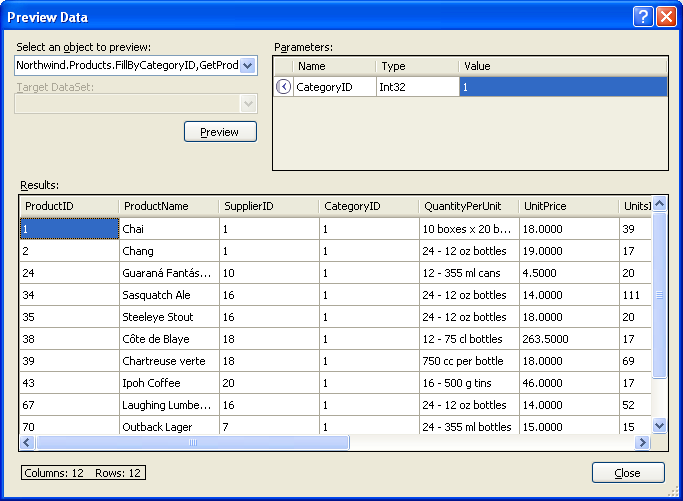

Those Products Belonging to the Beverages Category are Shown

Figure 19: Those Products Belonging to the Beverages Category are Shown (Click to view full-size image)

With the GetProductsByCategoryID(categoryID) method in our DAL, we can now create an ASP.NET page that displays only those products in a specified category. The following example shows all products that are in the Beverages category, which have a CategoryID of 1.

Beverages.asp

[!code-aspxMain]

   1:  <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Beverages.aspx.cs"
   2:      Inherits="Beverages" %>
   3:  <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
   4:      "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
   5:  <html xmlns="http://www.w3.org/1999/xhtml" >
   6:  <head runat="server">
   7:      <title>Untitled Page</title>
   8:      <link href="Styles.css" rel="stylesheet" type="text/css" />
   9:  </head>
  10:  <body>
  11:      <form id="form1" runat="server">
  12:      <div>
  13:          <h2>Beverages</h2>
  14:          <p>
  15:              <asp:GridView ID="GridView1" runat="server"
  16:               CssClass="DataWebControlStyle">
  17:                 <HeaderStyle CssClass="HeaderStyle" />
  18:                 <AlternatingRowStyle CssClass="AlternatingRowStyle" />
  19:              </asp:GridView>
  20:               </p>
  21:      </div>
  22:      </form>
  23:  </body>
  24:  </html>

Beverages.aspx.cs

[!code-csharpMain]

   1:  using System;
   2:  using System.Data;
   3:  using System.Configuration;
   4:  using System.Collections;
   5:  using System.Web;
   6:  using System.Web.Security;
   7:  using System.Web.UI;
   8:  using System.Web.UI.WebControls;
   9:  using System.Web.UI.WebControls.WebParts;
  10:  using System.Web.UI.HtmlControls;
  11:  using NorthwindTableAdapters;
  12:  public partial class Beverages : System.Web.UI.Page
  13:  {
  14:      protected void Page_Load(object sender, EventArgs e)
  15:      {
  16:          ProductsTableAdapter productsAdapter = new
  17:           ProductsTableAdapter();
  18:          GridView1.DataSource =
  19:            productsAdapter.GetProductsByCategoryID(1);
  20:          GridView1.DataBind();
  21:      }
  22:  }

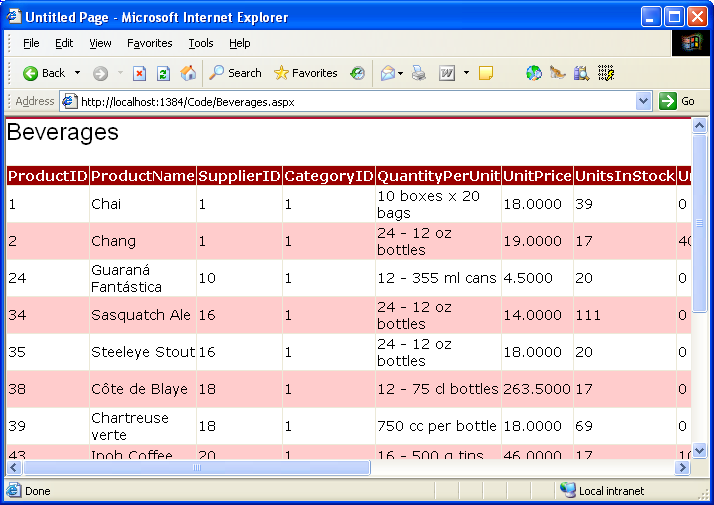

Those Products in the Beverages Category are Displayed

Figure 20: Those Products in the Beverages Category are Displayed (Click to view full-size image)

Step 4: Inserting, Updating, and Deleting Data

There are two patterns commonly used for inserting, updating, and deleting data. The first pattern, which I’ll call the database direct pattern, involves creating methods that, when invoked, issue an INSERT, UPDATE, or DELETE command to the database that operates on a single database record. Such methods are typically passed in a series of scalar values (integers, strings, Booleans, DateTimes, and so on) that correspond to the values to insert, update, or delete. For example, with this pattern for the Products table the delete method would take in an integer parameter, indicating the ProductID of the record to delete, while the insert method would take in a string for the ProductName, a decimal for the UnitPrice, an integer for the UnitsOnStock, and so on.

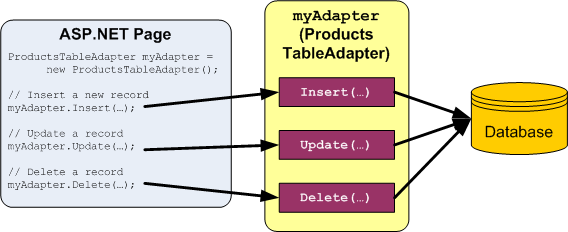

Each Insert, Update, and Delete Request is Sent to the Database Immediately

Figure 21: Each Insert, Update, and Delete Request is Sent to the Database Immediately (Click to view full-size image)

The other pattern, which I’ll refer to as the batch update pattern, is to update an entire DataSet, DataTable, or collection of DataRows in one method call. With this pattern a developer deletes, inserts, and modifies the DataRows in a DataTable and then passes those DataRows or DataTable into an update method. This method then enumerates the DataRows passed in, determines whether or not they’ve been modified, added, or deleted (via the DataRow’s RowState property value), and issues the appropriate database request for each record.

All Changes are Synchronized with the Database When the Update Method is Invoked

Figure 22: All Changes are Synchronized with the Database When the Update Method is Invoked (Click to view full-size image)

The TableAdapter uses the batch update pattern by default, but also supports the DB direct pattern. Since we selected the “Generate Insert, Update, and Delete statements” option from the Advanced Properties when creating our TableAdapter, the ProductsTableAdapter contains an Update() method, which implements the batch update pattern. Specifically, the TableAdapter contains an Update() method that can be passed the Typed DataSet, a strongly-typed DataTable, or one or more DataRows. If you left the “GenerateDBDirectMethods” checkbox checked when first creating the TableAdapter the DB direct pattern will also be implemented via Insert(), Update(), and Delete() methods.

Both data modification patterns use the TableAdapter’s InsertCommand, UpdateCommand, and DeleteCommand properties to issue their INSERT, UPDATE, and DELETE commands to the database. You can inspect and modify the InsertCommand, UpdateCommand, and DeleteCommand properties by clicking on the TableAdapter in the DataSet Designer and then going to the Properties window. (Make sure you have selected the TableAdapter, and that the ProductsTableAdapter object is the one selected in the drop-down list in the Properties window.)

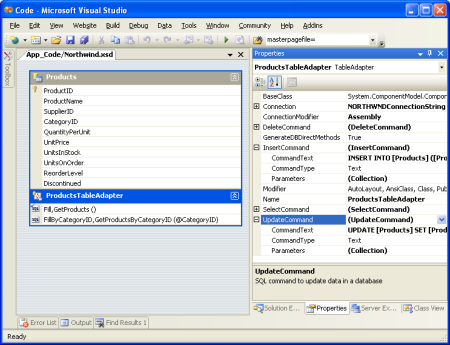

The TableAdapter has InsertCommand, UpdateCommand, and DeleteCommand Properties

Figure 23: The TableAdapter has InsertCommand, UpdateCommand, and DeleteCommand Properties (Click to view full-size image)

To examine or modify any of these database command properties, click on the CommandText subproperty, which will bring up the Query Builder.

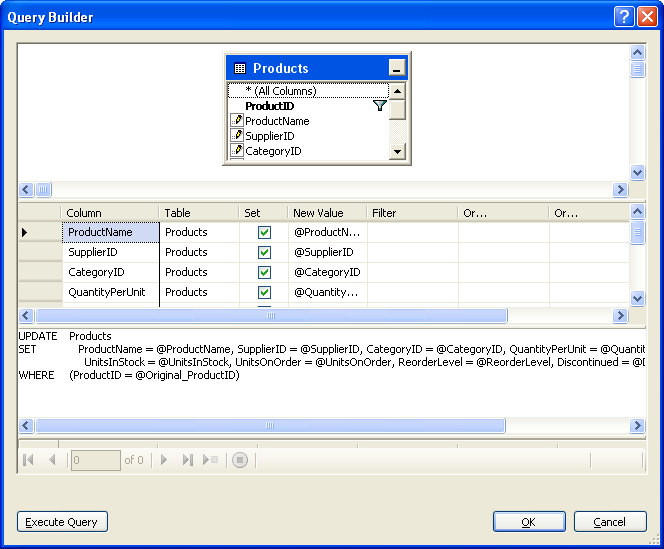

Configure the INSERT, UPDATE, and DELETE Statements in the Query Builder

Figure 24: Configure the INSERT, UPDATE, and DELETE Statements in the Query Builder (Click to view full-size image)

The following code example shows how to use the batch update pattern to double the price of all products that are not discontinued and that have 25 units in stock or less:

[!code-csharpMain]

   1:  NorthwindTableAdapters.ProductsTableAdapter productsAdapter =
   2:    new NorthwindTableAdapters.ProductsTableAdapter();
   3:  // For each product, double its price if it is not discontinued and
   4:  // there are 25 items in stock or less
   5:  Northwind.ProductsDataTable products = productsAdapter.GetProducts();
   6:  foreach (Northwind.ProductsRow product in products)
   7:     if (!product.Discontinued && product.UnitsInStock <= 25)
   8:        product.UnitPrice *= 2;
   9:  // Update the products
  10:  productsAdapter.Update(products);

The code below illustrates how to use the DB direct pattern to programmatically delete a particular product, then update one, and then add a new one:

[!code-csharpMain]

   1:  NorthwindTableAdapters.ProductsTableAdapter productsAdapter =
   2:      new NorthwindTableAdapters.ProductsTableAdapter();
   3:  // Delete the product with ProductID 3
   4:  productsAdapter.Delete(3);
   5:  // Update Chai (ProductID of 1), setting the UnitsOnOrder to 15
   6:  productsAdapter.Update("Chai", 1, 1, "10 boxes x 20 bags",
   7:    18.0m, 39, 15, 10, false, 1);
   8:  // Add a new product
   9:  productsAdapter.Insert("New Product", 1, 1,
  10:    "12 tins per carton", 14.95m, 15, 0, 10, false);

Creating Custom Insert, Update, and Delete Methods

The Insert(), Update(), and Delete() methods created by the DB direct method can be a bit cumbersome, especially for tables with many columns. Looking at the previous code example, without IntelliSense’s help it’s not particularly clear what Products table column maps to each input parameter to the Update() and Insert() methods. There may be times when we only want to update a single column or two, or want a customized Insert() method that will, perhaps, return the value of the newly inserted record’s IDENTITY (auto-increment) field.

To create such a custom method, return to the DataSet Designer. Right-click on the TableAdapter and choose Add Query, returning to the TableAdapter wizard. On the second screen we can indicate the type of query to create. Let’s create a method that adds a new product and then returns the value of the newly added record’s ProductID. Therefore, opt to create an INSERT query.

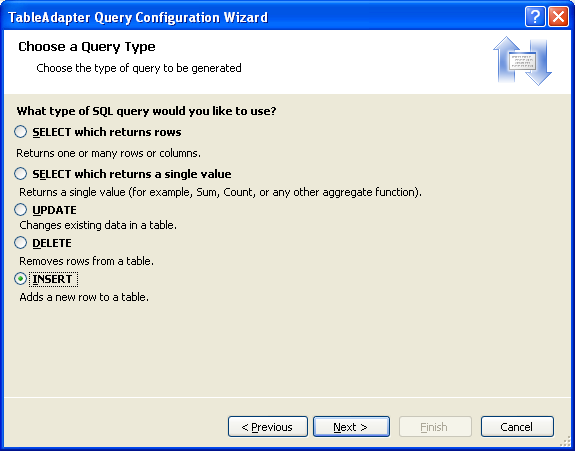

Create a Method to Add a New Row to the Products Table

Figure 25: Create a Method to Add a New Row to the Products Table (Click to view full-size image)

On the next screen the InsertCommand’s CommandText appears. Augment this query by adding SELECT SCOPE_IDENTITY() at the end of the query, which will return the last identity value inserted into an IDENTITY column in the same scope. (See the technical documentation for more information about SCOPE_IDENTITY() and why you probably want to [use SCOPE\_IDENTITY() in lieu of @@IDENTITY](http://weblogs.sqlteam.com/travisl/archive/2003/10/29/405.aspx).) Make sure that you end the INSERT statement with a semi-colon before adding the SELECT statement.

Augment the Query to Return the SCOPE_IDENTITY() Value

Figure 26: Augment the Query to Return the SCOPE_IDENTITY() Value (Click to view full-size image)

Finally, name the new method InsertProduct.

Set the New Method Name to InsertProduct

Figure 27: Set the New Method Name to InsertProduct (Click to view full-size image)

When you return to the DataSet Designer you’ll see that the ProductsTableAdapter contains a new method, InsertProduct. If this new method doesn’t have a parameter for each column in the Products table, chances are you forgot to terminate the INSERT statement with a semi-colon. Configure the InsertProduct method and ensure you have a semi-colon delimiting the INSERT and SELECT statements.

By default, insert methods issue non-query methods, meaning that they return the number of affected rows. However, we want the InsertProduct method to return the value returned by the query, not the number of rows affected. To accomplish this, adjust the InsertProduct method’s ExecuteMode property to Scalar.

Change the ExecuteMode Property to Scalar

Figure 28: Change the ExecuteMode Property to Scalar (Click to view full-size image)

The following code shows this new InsertProduct method in action:

[!code-csharpMain]

   1:  NorthwindTableAdapters.ProductsTableAdapter productsAdapter =
   2:      new NorthwindTableAdapters.ProductsTableAdapter();
   3:  // Add a new product
   4:  int new_productID = Convert.ToInt32(productsAdapter.InsertProduct
   5:      ("New Product", 1, 1, "12 tins per carton", 14.95m, 10, 0, 10, false));
   6:  // On second thought, delete the product
   7:  productsAdapter.Delete(new_productID);

Step 5: Completing the Data Access Layer

Note that the ProductsTableAdapters class returns the CategoryID and SupplierID values from the Products table, but doesn’t include the CategoryName column from the Categories table or the CompanyName column from the Suppliers table, although these are likely the columns we want to display when showing product information. We can augment the TableAdapter’s initial method, GetProducts(), to include both the CategoryName and CompanyName column values, which will update the strongly-typed DataTable to include these new columns as well.

This can present a problem, however, as the TableAdapter’s methods for inserting, updating, and deleting data are based off of this initial method. Fortunately, the auto-generated methods for inserting, updating, and deleting are not affected by subqueries in the SELECT clause. By taking care to add our queries to Categories and Suppliers as subqueries, rather than JOIN s, we’ll avoid having to rework those methods for modifying data. Right-click on the GetProducts() method in the ProductsTableAdapter and choose Configure. Then, adjust the SELECT clause so that it looks like:

[!code-sqlMain]

   1:  SELECT     ProductID, ProductName, SupplierID, CategoryID,
   2:  QuantityPerUnit, UnitPrice, UnitsInStock, UnitsOnOrder, ReorderLevel, Discontinued,
   3:  (SELECT CategoryName FROM Categories
   4:  WHERE Categories.CategoryID = Products.CategoryID) as CategoryName,
   5:  (SELECT CompanyName FROM Suppliers
   6:  WHERE Suppliers.SupplierID = Products.SupplierID) as SupplierName
   7:  FROM         Products

Update the SELECT Statement for the GetProducts() Method

Figure 29: Update the SELECT Statement for the GetProducts() Method (Click to view full-size image)

After updating the GetProducts() method to use this new query the DataTable will include two new columns: CategoryName and SupplierName.

The Products DataTable has Two New Columns
The Products DataTable has Two New Columns

Figure 30: The Products DataTable has Two New Columns

Take a moment to update the SELECT clause in the GetProductsByCategoryID(categoryID) method as well.

If you update the GetProducts() SELECT using JOIN syntax the DataSet Designer won’t be able to auto-generate the methods for inserting, updating, and deleting database data using the DB direct pattern. Instead, you’ll have to manually create them much like we did with the InsertProduct method earlier in this tutorial. Furthermore, you’ll manually have to provide the InsertCommand, UpdateCommand, and DeleteCommand property values if you want to use the batch updating pattern.

Adding the Remaining TableAdapters

Up until now, we’ve only looked at working with a single TableAdapter for a single database table. However, the Northwind database contains several related tables that we’ll need to work with in our web application. A Typed DataSet can contain multiple, related DataTables. Therefore, to complete our DAL we need to add DataTables for the other tables we’ll be using in these tutorials. To add a new TableAdapter to a Typed DataSet, open the DataSet Designer, right-click in the Designer, and choose Add / TableAdapter. This will create a new DataTable and TableAdapter and walk you through the wizard we examined earlier in this tutorial.

Take a few minutes to create the following TableAdapters and methods using the following queries. Note that the queries in the ProductsTableAdapter include the subqueries to grab each product’s category and supplier names. Additionally, if you’ve been following along, you’ve already added the ProductsTableAdapter class’s GetProducts() and GetProductsByCategoryID(categoryID) methods.

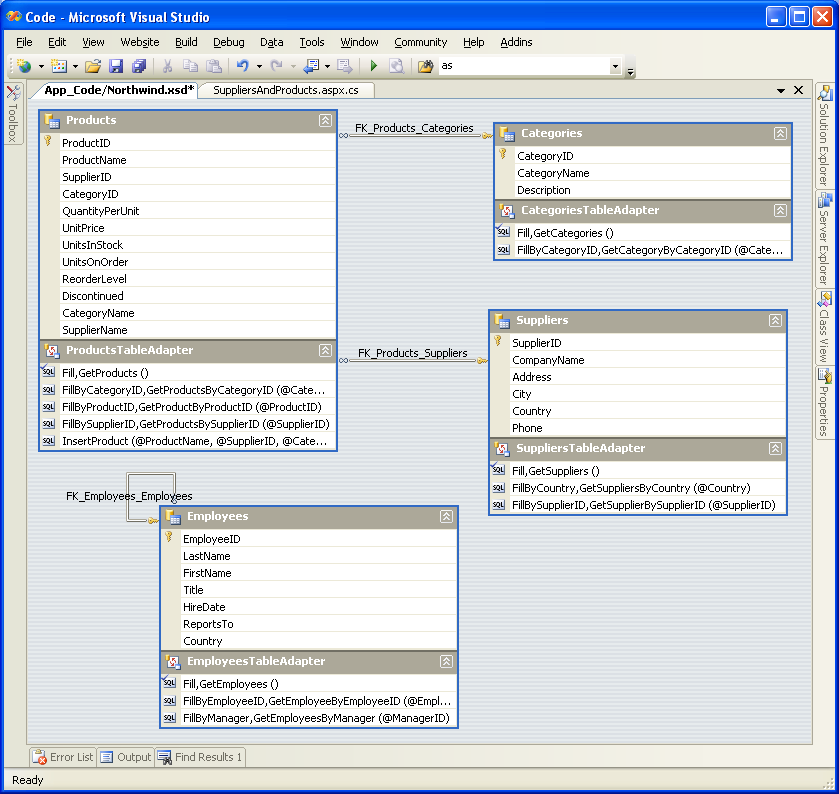

The DataSet Designer After the Four TableAdapters Have Been Added

Figure 31: The DataSet Designer After the Four TableAdapters Have Been Added (Click to view full-size image)

Adding Custom Code to the DAL

The TableAdapters and DataTables added to the Typed DataSet are expressed as an XML Schema Definition file (Northwind.xsd). You can view this schema information by right-clicking on the Northwind.xsd file in the Solution Explorer and choosing View Code.

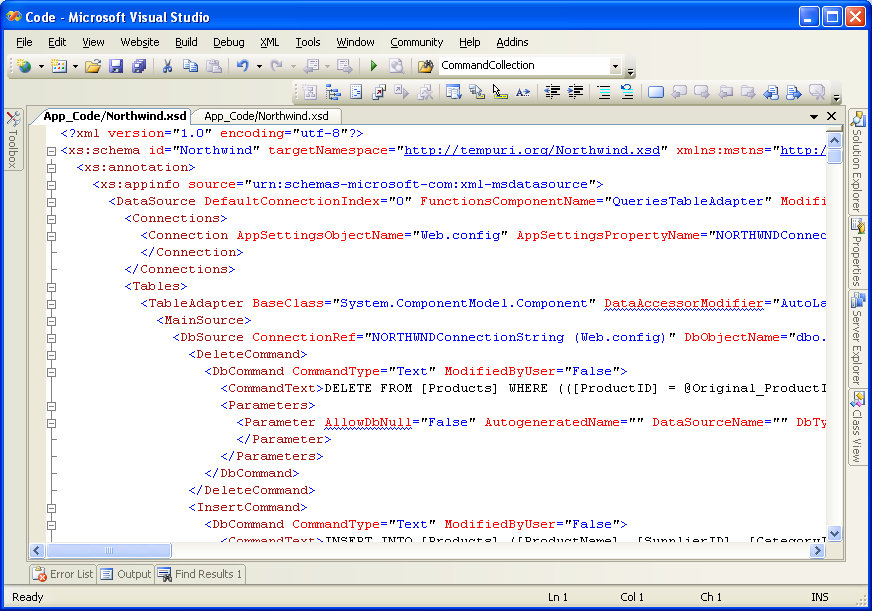

The XML Schema Definition (XSD) File for the Northwinds Typed DataSet

Figure 32: The XML Schema Definition (XSD) File for the Northwinds Typed DataSet (Click to view full-size image)

This schema information is translated into C# or Visual Basic code at design time when compiled or at runtime (if needed), at which point you can step through it with the debugger. To view this auto-generated code go to the Class View and drill down to the TableAdapter or Typed DataSet classes. If you don’t see the Class View on your screen, go to the View menu and select it from there, or hit Ctrl+Shift+C. From the Class View you can see the properties, methods, and events of the Typed DataSet and TableAdapter classes. To view the code for a particular method, double-click the method name in the Class View or right-click on it and choose Go To Definition.

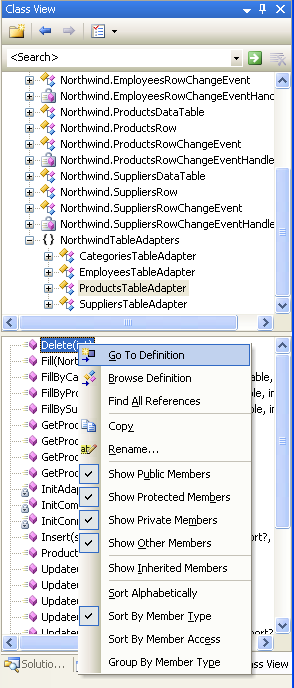

Inspect the Auto-Generated Code by Selecting Go To Definition from the Class View
Inspect the Auto-Generated Code by Selecting Go To Definition from the Class View

Figure 33: Inspect the Auto-Generated Code by Selecting Go To Definition from the Class View

While auto-generated code can be a great time saver, the code is often very generic and needs to be customized to meet the unique needs of an application. The risk of extending auto-generated code, though, is that the tool that generated the code might decide it’s time to “regenerate” and overwrite your customizations. With .NET 2.0’s new partial class concept, it’s easy to split a class across multiple files. This enables us to add our own methods, properties, and events to the auto-generated classes without having to worry about Visual Studio overwriting our customizations.

To demonstrate how to customize the DAL, let’s add a GetProducts() method to the SuppliersRow class. The SuppliersRow class represents a single record in the Suppliers table; each supplier can provider zero to many products, so GetProducts() will return those products of the specified supplier. To accomplish this create a new class file in the App_Code folder named SuppliersRow.cs and add the following code:

[!code-csharpMain]

   1:  using System;
   2:  using System.Data;
   3:  using NorthwindTableAdapters;
   4:  public partial class Northwind
   5:  {
   6:      public partial class SuppliersRow
   7:      {
   8:          public Northwind.ProductsDataTable GetProducts()
   9:          {
  10:              ProductsTableAdapter productsAdapter =
  11:               new ProductsTableAdapter();
  12:              return
  13:                productsAdapter.GetProductsBySupplierID(this.SupplierID);
  14:          }
  15:      }
  16:  }

This partial class instructs the compiler that when building the Northwind.SuppliersRow class to include the GetProducts() method we just defined. If you build your project and then return to the Class View you’ll see GetProducts() now listed as a method of Northwind.SuppliersRow.

The GetProducts() Method is Now Part of the Northwind.SuppliersRow Class
The GetProducts() Method is Now Part of the Northwind.SuppliersRow Class

Figure 34: The GetProducts() Method is Now Part of the Northwind.SuppliersRow Class

The GetProducts() method can now be used to enumerate the set of products for a particular supplier, as the following code shows:

[!code-htmlMain]

   1:  NorthwindTableAdapters.SuppliersTableAdapter suppliersAdapter =
   2:      new NorthwindTableAdapters.SuppliersTableAdapter();
   3:  // Get all of the suppliers
   4:  Northwind.SuppliersDataTable suppliers =
   5:    suppliersAdapter.GetSuppliers();
   6:  // Enumerate the suppliers
   7:  foreach (Northwind.SuppliersRow supplier in suppliers)
   8:  {
   9:      Response.Write("Supplier: " + supplier.CompanyName);
  10:      Response.Write("<ul>");
  11:      // List the products for this supplier
  12:      Northwind.ProductsDataTable products = supplier.GetProducts();
  13:      foreach (Northwind.ProductsRow product in products)
  14:          Response.Write("<li>" + product.ProductName + "</li>");
  15:      Response.Write("</ul><p> </p>");
  16:  }

This data can also be displayed in any of ASP.NET’s data Web controls. The following page uses a GridView control with two fields:

We’ll examine how to display such master-detail reports in future tutorials. For now, this example is designed to illustrate using the custom method added to the Northwind.SuppliersRow class.

SuppliersAndProducts.aspx

[!code-aspxMain]

   1:  <%@ Page Language="C#" CodeFile="SuppliersAndProducts.aspx.cs"
   2:      AutoEventWireup="true" Inherits="SuppliersAndProducts" %>
   3:  <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
   4:      "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
   5:  <html xmlns="http://www.w3.org/1999/xhtml" >
   6:  <head runat="server">
   7:      <title>Untitled Page</title>
   8:      <link href="Styles.css" rel="stylesheet" type="text/css" />
   9:  </head>
  10:  <body>
  11:      <form id="form1" runat="server">
  12:      <div>
  13:          <h2>
  14:              Suppliers and Their Products</h2>
  15:          <p>
  16:              <asp:GridView ID="GridView1" runat="server"
  17:               AutoGenerateColumns="False"
  18:               CssClass="DataWebControlStyle">
  19:                  <HeaderStyle CssClass="HeaderStyle" />
  20:                  <AlternatingRowStyle CssClass="AlternatingRowStyle" />
  21:                  <Columns>
  22:                      <asp:BoundField DataField="CompanyName"
  23:                        HeaderText="Supplier" />
  24:                      <asp:TemplateField HeaderText="Products">
  25:                          <ItemTemplate>
  26:                              <asp:BulletedList ID="BulletedList1"
  27:                               runat="server" DataSource="<%# ((Northwind.SuppliersRow) ((System.Data.DataRowView) Container.DataItem).Row).GetProducts() %>"
  28:                                   DataTextField="ProductName">
  29:                              </asp:BulletedList>
  30:                          </ItemTemplate>
  31:                      </asp:TemplateField>
  32:                  </Columns>
  33:              </asp:GridView>
  34:               </p>
  35:      </div>
  36:      </form>
  37:  </body>
  38:  </html>

SuppliersAndProducts.aspx.cs

[!code-csharpMain]

   1:  using System;
   2:  using System.Data;
   3:  using System.Configuration;
   4:  using System.Collections;
   5:  using System.Web;
   6:  using System.Web.Security;
   7:  using System.Web.UI;
   8:  using System.Web.UI.WebControls;
   9:  using System.Web.UI.WebControls.WebParts;
  10:  using System.Web.UI.HtmlControls;
  11:  using NorthwindTableAdapters;
  12:  public partial class SuppliersAndProducts : System.Web.UI.Page
  13:  {
  14:      protected void Page_Load(object sender, EventArgs e)
  15:      {
  16:          SuppliersTableAdapter suppliersAdapter = new
  17:            SuppliersTableAdapter();
  18:          GridView1.DataSource = suppliersAdapter.GetSuppliers();
  19:          GridView1.DataBind();
  20:      }
  21:  }

The Supplier’s Company Name is Listed in the Left Column, Their Products in the Right

Figure 35: The Supplier’s Company Name is Listed in the Left Column, Their Products in the Right (Click to view full-size image)

Summary

When building a web application creating the DAL should be one of your first steps, occurring before you start creating your presentation layer. With Visual Studio, creating a DAL based on Typed DataSets is a task that can be accomplished in 10-15 minutes without writing a line of code. The tutorials moving forward will build upon this DAL. In the next tutorial we’ll define a number of business rules and see how to implement them in a separate Business Logic Layer.

Happy Programming!

Further Reading

For more information on the topics discussed in this tutorial, refer to the following resources:

Video Training on Topics Contained in this Tutorial

About the Author

Scott Mitchell, author of seven ASP/ASP.NET books and founder of 4GuysFromRolla.com, has been working with Microsoft Web technologies since 1998. Scott works as an independent consultant, trainer, and writer. His latest book is Sams Teach Yourself ASP.NET 2.0 in 24 Hours. He can be reached at mitchell@4GuysFromRolla.com. or via his blog, which can be found at http://ScottOnWriting.NET.

Special Thanks To

This tutorial series was reviewed by many helpful reviewers. Lead reviewers for this tutorial were Ron Green, Hilton Giesenow, Dennis Patterson, Liz Shulok, Abel Gomez, and Carlos Santos. Interested in reviewing my upcoming MSDN articles? If so, drop me a line at mitchell@4GuysFromRolla.com.

Next



Comments ( )
Link to this page: //www.vb-net.com/AspNet-DocAndSamples-2017/aspnet/web-forms/overview/data-access/introduction/creating-a-data-access-layer-cs.htm
< THANKS ME>
