ASP.NET MVC 3

## Overview

This document describes the release of ASP.NET MVC 3 RTM for Visual Studio 2010. ASP.NET MVC is a framework for developing Web applications that uses the Model-View-Controller (MVC) pattern. The ASP.NET MVC 3 installer includes the following components:

The full set of release notes for each pre-release version of ASP.NET MVC 3 can be found on the ASP.NET website at the following URL:

https://www.asp.net/learn/whitepapers/mvc3-release-notes

## Installation Notes

To install ASP.NET MVC 3 RTM using the Web Platform Installer (Web PI), visit the following page:

https://www.microsoft.com/web/gallery/install.aspx?appid=MVC3

Alternatively, you can download the installer for ASP.NET MVC 3 RTM for Visual Studio 2010 from the following page:

https://go.microsoft.com/fwlink/?LinkID=208140

ASP.NET MVC 3 can be installed and can run side-by-side with ASP.NET MVC 2.

## Software Requirements

The ASP.NET MVC 3 run-time components require the following software:

## Documentation

Documentation for ASP.NET MVC is available on the MSDN Web site at the following URL:

https://go.microsoft.com/fwlink/?LinkId=205717

Tutorials and other information about ASP.NET MVC are available on the MVC page of the ASP.NET Web site at the following URL:

https://www.asp.net/mvc/

## Support

This is a fully supported release. Information about getting technical support can be found at the Microsoft Support website.

Also feel free to post questions about this release to the ASP.NET MVC forum, where members of the ASP.NET community are frequently able to provide informal support:

https://forums.asp.net/1146.aspx

## Upgrading an ASP.NET MVC 2 Project to ASP.NET MVC 3 Tools Update

ASP.NET MVC 3 can be installed side by side with ASP.NET MVC 2 on the same computer, which gives you flexibility in choosing when to upgrade an ASP.NET MVC 2 application to ASP.NET MVC 3.

To manually upgrade an existing ASP.NET MVC 2 application to version 3, do the following:

  1. Create a new empty ASP.NET MVC 3 project on your computer. This project will contain some files that are required for the upgrade.

  2. Copy the following files from the ASP.NET MVC 3 project into the corresponding location of your ASP.NET MVC 2 project. You’ll need to update any references to the jQuery library to account for the new filename ( jQuery-1.5.1.js):

    • /Views/Web.config
    • /packages.config
    • /scripts/*.js
    • /Content/themes/*.*
  3. Copy the packages folder in the root of the empty ASP.NET MVC 3 project solution into the root of your solution, which is in the directory where the solution’s .sln file is located.
  4. If your ASP.NET MVC 2 project contains any areas, copy the /Views/Web.config file to the Views folder of each area.

  5. In both Web.config files in the ASP.NET MVC 2 project, globally search and replace the ASP.NET MVC version. Find the following:

    [!code-consoleMain]

       1:  System.Web.Mvc, Version=2.0.0.0

    Replace it with the following:

    [!code-consoleMain]
       1:  System.Web.Mvc, Version=3.0.0.0
  6. In Solution Explorer, delete the reference to System.Web.Mvc (which points to the DLL from version 2), then add a reference to System.Web.Mvc (v3.0.0.0).

  7. Add a reference to System.Web.WebPages.dll and System.Web.Helpers.dll. These assemblies are located in the following folders:

    • %ProgramFiles% Microsoft ASP.NET.NET MVC 3
    • %ProgramFiles% Microsoft ASP.NET.NET Web Pages.0
  8. In Solution Explorer, right-click the project name and select Unload Project. Then right-click the project name again and select Edit ProjectName.csproj.
  9. Locate the ProjectTypeGuids element and replace {F85E285D-A4E0-4152-9332-AB1D724D3325} with {E53F8FEA-EAE0-44A6-8774-FFD645390401}.
  10. Save the changes, right-click the project, and then select Reload Project.

  11. In the application’s root Web.config file, add the following settings to the assemblies section.

    [!code-xmlMain]
       1:  <add assembly="System.Web.WebPages, Version=1.0.0.0, Culture=neutral,
       2:       PublicKeyToken=31BF3856AD364E35" />
       3:
       4:  <add assembly="System.Web.Helpers, Version=1.0.0.0, Culture=neutral,
       5:       PublicKeyToken=31BF3856AD364E35" />

  12. If the project references any third-party libraries that are compiled using ASP.NET MVC 2, add the following highlighted bindingRedirect element to the Web.config file in the application root under the configuration section:

    [!code-xmlMain]

       1:  <runtime>
       2:     <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
       3:       <dependentAssembly>
       4:         <assemblyIdentity name="System.Web.Mvc"
       5:             publicKeyToken="31bf3856ad364e35"/>
       6:         <bindingRedirect oldVersion="1.0.0.0-2.0.0.0" newVersion="3.0.0.0"/>
       7:       </dependentAssembly>
       8:     </assemblyBinding>
       9:  </runtime>

## Changes in ASP.NET MVC 3 Tools Update

This section describes changes made in the ASP.NET MVC 3 Tools Update release since the ASP.NET MVC 3 RTM release.

### “Add Controller” dialog box can now scaffold controllers with views and data access code

Scaffolding is a way of quickly generating a controller and views for your application. After the code has been generated, you can edit it to meet your project’s requirements.

To launch the Add Controller dialog box in ASP.NET MVC 3, right-click the Controllers folder in Solution Explorer, click Add, and then click Controller. The dialog box has been enhanced to offer additional scaffolding options.

There are three scaffolding templates available by default.

Empty Controller

This template generates an empty controller file. This template is equivalent to not checking Add actions for create, edit, details, delete scenarios in previous versions of ASP.NET MVC. If you choose this, no further options are available.

Controller with empty read/write actions

This template generates a controller file that has all the required action methods but no implementation code in the methods. This template is equivalent to checking Add actions for create, edit, details, delete scenarios in previous versions of ASP.NET MVC. If you choose this, no further options are available.

Controller with read/write actions and views, using Entity Framework

This template enables you to quickly create a working data-entry user interface. It generates code that handles a range of common requirements and scenarios, such as the following:

For Data Context class, you can make these choices:

For Views, choose the view engine you want to use, or choose None if you don’t want to scaffold any views.

You can select Advanced Optionsto specify further options for the generated views. For example, you can choose the layout or master page to use.

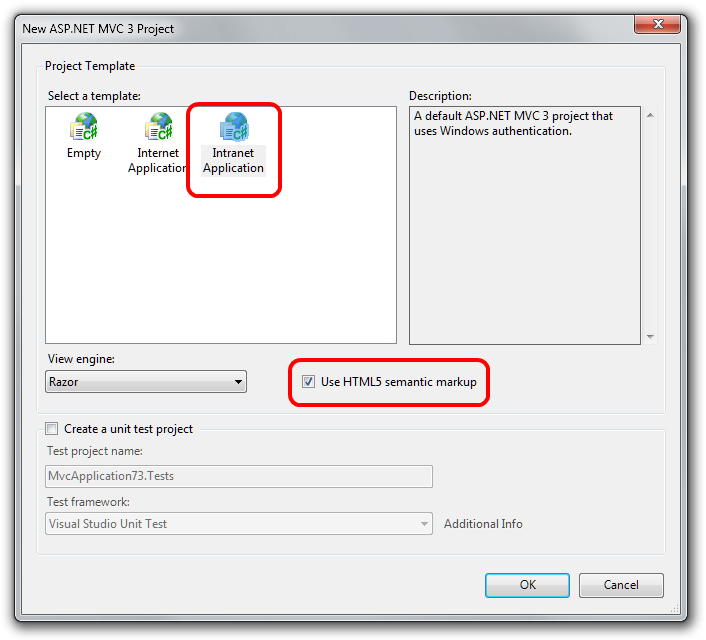

### Improvements to the “ASP.NET MVC 3 New Project” Dialog Box

The dialog box you use to create new ASP.NET MVC 3 projects includes multiple improvements, as listed below.

New “Intranet Project” Template

The Project Template list includes a new Intranet Application template. This template contains settings for building a web application using Windows authentication instead of forms authentication. Because an intranet application requires some IIS settings that can’t be encapsulated in a project template, the template includes a readme file with instructions for how to make the project template work in IIS. Documentation for the a new Intranet Application template is available on the MSDN website at the following URL:

https://msdn.microsoft.com/en-us/library/gg703322(VS.98).aspx

Project templates are now HTML5 enabled

The new-project dialog box now contains an option to add HTML5-specific features to the project templates. Selecting the option causes views to be generated that contain the new HTML5 <header>, <footer>, and <navigation> elements.

Note that earlier versions of browsers do not support HTML5-specific tags. To address this limitation, the HTML5 project templates include a reference to the Modernizr library. (See the next section.)

### Project templates now include Modernizr 1.7

Modernizr is a JavaScript library that enables support for CSS 3 and HTML5 in browsers that do not yet support these features. This library is included as a pre-installed NuGet package in templates for ASP.NET MVC 3 projects. For more information about Modernizr, see http://www.modernizr.com/.

### Project templates include updated versions of jQuery, jQuery UI, and jQuery Validation

The project templates now include the following versions of the jQuery scripts:

These libraries are included as pre-installed NuGet packages.

### Project templates now include ADO.NET Entity Framework 4.1 as a pre-installed NuGet package

The ADO.NET Entity Framework 4.1 includes the Code First feature. Code First is a new development pattern for the ADO.NET Entity Framework that provides an alternative to the existing Database First and Model First patterns.

Code First is focused around defining your model using POCO classes (“plain old CLR objects”) written in Visual Basic or C#. These classes can then be mapped to an existing database or be used to generate a database schema. Additional configuration can be supplied using DataAnnotations attributes or using fluent APIs.

Documentation for using Code Firstwith ASP.NET MVC is available on the ASP.NET website at the following URLs:

https://www.asp.net/mvc/tutorials/getting-started-with-mvc3-part1-cs https://www.asp.net/entity-framework/tutorials/creating-an-entity-framework-data-model-for-an-asp-net-mvc-application

### Project templates include JavaScript libraries as pre-installed NuGet packages

When you create a new ASP.NET MVC 3 project, the project includes the JavaScript files mentioned previously (for example, the Modernizr library) by installing them using NuGet instead of directly adding the scripts to the Scripts folder in the project template contents. This enables you to use NuGet to update the scripts to the latest version when new versions of the scripts are released.

For example, given the frequency of new jQuery releases, the version of jQuery included in the project template will at some point be out of date. However, because jQuery is included as an installed NuGet package, you will be notified in the NuGet dialog box when newer versions of jQuery are available.

Because jQuery includes the version number in the file name, updating jQuery to the latest version also requires updating the <script> tag that references the jQuery file to use the new file name. Other included script libraries do not include the version number in the script name, so they can be more easily updated to their latest versions.

## Known Issues

## Changes in ASP.NET MVC 3 RTM

This section describes changes and bug fixes made in the ASP.NET MVC 3 RTM release since the RC2 release.

### Change: Updated the version of jQuery UI to 1.8.7

The ASP.NET MVC project templates for Visual Studio were updated to include the latest version of the jQuery UI library. The templates also include the minimal set of resource files required by jQuery UI, such as the associated CSS and image files.

### Change: Changed the default ModelMetadataProvider back to DataAnnotationsModelMetadataProvider

The RC2 release of ASP.NET MVC 3 introduced a CachedDataAnnotationsMetadataProvider class that provided caching on top of the existing DataAnnotationsModelMetadataProvider class as a performance improvement. However, some bugs were reported with this implementation, so the change has been reverted and moved into the MVC Futures project, which is available at ASP.NET WebStack.

### Fixed: Pasting part of a Razor expression that contains whitespace results in it being reversed

In pre-release versions of ASP.NET MVC 3, when you paste a part of a Razor expression that contains whitespace into a Razor file, the resulting expression is reversed. For example, consider the following Razor code block:

[!code-cshtmlMain]

   1:  @SomeMethod("first param",
   2:  100)
   3:  @AnotherMethod()

If you select the text “first param” in the first method and paste it as an argument into the second method, the result is as follows:

[!code-cshtmlMain]

   1:  @AnotherMethod(param""first)

The correct behavior is that the paste operation should result in the following:

[!code-cshtmlMain]

   1:  @AnotherMethod("first param")

This issue has been fixed in the RTM release so that the expression is correctly preserved during the paste operation.

### Fixed: Renaming a Razor file that is opened in the editor disables syntax colorization and IntelliSense

Renaming a Razor file using Solution Explorer while the file is opened in the editor window causes syntax highlighting and IntelliSense to stop working for that file. This has been fixed so that highlighting and IntelliSense are maintained after a rename.

## Known Issues

## Breaking Changes

## Changes in ASP.NET MVC 3 RC2

This section describes changes (new features and bug fixes) made in the ASP.NET MVC 3 RC2 release since the RC release.

### Project Templates Changed to Include jQuery 1.4.4, jQuery Validation 1.7, and jQuery UI 1.8.6

The project templates for ASP.NET MVC 3 now include the latest versions of jQuery, jQuery Validation, and jQuery UI. jQuery UI is a new addition to the project templates and provides useful user interface widgets. For more information about jQuery UI, visit their homepage: http://jqueryui.com/.

### Added “AdditionalMetadataAttribute” Class

You can use the AdditionalMetadataAttribute class to populate the ModelMetadata.AdditionalValues dictionary for a model property.

For example, suppose a view model has properties that should be displayed only to an administrator. That model can be annotated with the new attribute using AdminOnly as the key and true as the value, as in the following example:

[!code-csharpMain]

   1:  public class ProductViewModel {
   2:      [AdditionalMetadata("AdminOnly", true)]
   3:      public string RefundCode {get; set;}
   4:  }

This metadata is made available to any display or editor template when a product view model is rendered. It is up to you as application developer to interpret the metadata information.

### Improved View Scaffolding

The T4 templates used for scaffolding views now generate calls to template helper methods such as EditorFor instead of helpers such as TextBoxFor. This change improves support for metadata on the model in the form of data annotation attributes when the Add View dialog box generates a view.

The Add View scaffolding also includes improved detection and usage of primary key information on the model, based on convention. For example, the Add View dialog box uses this information to ensure that the primary key value is not scaffolded as an editable form field.

The default Edit and Create templates include references to the jQuery scripts needed for client validation.

### Added Html.Raw Method

By default, the Razor view engine HTML-encodes all values. For example, the following code snippet encodes the HTML inside the greeting variable so that it is displayed in the page as &lt;strong&gt;Hello World!&lt;/strong&gt;.

[!code-cshtmlMain]

   1:  @{
   2:    string greeting = "<strong>Hello World!</strong>";
   3:  }
   4:
   5:  <p>@greeting</p>

The new Html.Raw method provides a simple way of displaying unencoded HTML when the content is known to be safe. The following example displays the same string, but the string is rendered as markup:

[!code-cshtmlMain]

   1:  @{
   2:    string greeting = "<strong>Hello World!</strong>";
   3:  }
   4:
   5:  <p>@Html.Raw(greeting)</p>

### Renamed “Controller.ViewModel” Property and the “View” Property To “ViewBag”

Previously, the ViewModel property of Controller corresponded to the View property of a view. Both of these properties provide a way to access values of the ViewDataDictionary object using dynamic property-accessor syntax. Both properties have been renamed to be the same in order to avoid confusion and to be more consistent.

### Renamed “ControllerSessionStateAttribute” Class to “SessionStateAttribute”

The ControllerSessionStateAttribute class was introduced in the RC release of ASP.NET MVC 3. The property was renamed to be more succinct.

### Renamed RemoteAttribute “Fields” Property to “AdditionalFields”

The RemoteAttribute class’s Fields property caused some confusion among users. Renaming this property to AdditionalFields clarifies its intent.

### Renamed “SkipRequestValidationAttribute” to “AllowHtmlAttribute”

The SkipRequestValidationAttribute attribute was renamed to AllowHtmlAttribute to better represent its intended usage.

### Changed “Html.ValidationMessage” Method to Display the First Useful Error Message

The Html.ValidationMessage method was fixed to show the first useful error message instead of simply displaying the first error.

During model binding, the ModelState dictionary can be populated from multiple sources with error messages about the property, including from the model itself (if it implements IValidatableObject), from validation attributes applied to the property, and from exceptions thrown while the property is being accessed.

When the Html.ValidationMessage method displays a validation message, it skips model-state entries that include an exception, because these are generally not intended for the end user. Instead, the method looks for the first validation message that is not associated with an exception and displays that message. If no such message is found, it defaults to a generic error message that is associated with the first exception.

### Fixed @model Declaration to not Add Whitespace to the Document

In earlier releases, the @model declaration at the top of a view added a blank line to the rendered HTML output. This has been fixed so that the declaration does not introduce whitespace.

### Added “FileExtensions” Property to View Engines to Support Engine-Specific File Names

A view engine can return a view using an explicit view path as in the following example:

[!code-csharpMain]

   1:  return View("~/views/home/index.cshtml");

The first view engine always attempts to render the view. By default, the Web Forms view engine is the first view engine; because the Web Forms engine cannot render a Razor view, an error occurs. View engines now have a FileExtensions property that is used to specify which file extensions they support. This property is checked when ASP.NET determines whether a view engine can render a file. This is a breaking change and more details are included in the Breaking Changes section of this document.

### Fixed “LabelFor” Helper to Emit the Correct Value for the “For” Attribute

A bug was fixed where the LabelFor method rendered a for attribute that matches the input element’s name attribute instead of its ID. According to the W3C, the for attribute should match the input element’s ID.

### Fixed “RenderAction” Method to Give Explicit Values Precedence During Model Binding

In earlier versions, explicit values that were passed to the RenderAction method were being ignored in favor of the current form values during model binding inside a child action. The fix ensures that explicit values take precedence during model binding.

## Breaking Changes

## Known Issues

## ASP.NET MVC 3 Release Candidate

ASP.NET MVC Release Candidate was released on November 9, 2010.

## New Features in ASP.NET MVC 3 RC

This section describes features that have been introduced in the ASP.NET MVC 3 RC release since the Beta release.

### NuGet Package Manager

ASP.NET MVC 3 includes the NuGet Package Manager (formerly known as NuPack), which is an integrated package management tool for adding libraries and tools to Visual Studio projects. This tool automates the steps that developers take today to get a library into their source tree.

You can work with NuGet as a command-line tool, as an integrated console window inside Visual Studio 2010, from the Visual Studio context menu, and as a set of PowerShell cmdlets.

For more information about NuGet, read the Nuget Documentation.

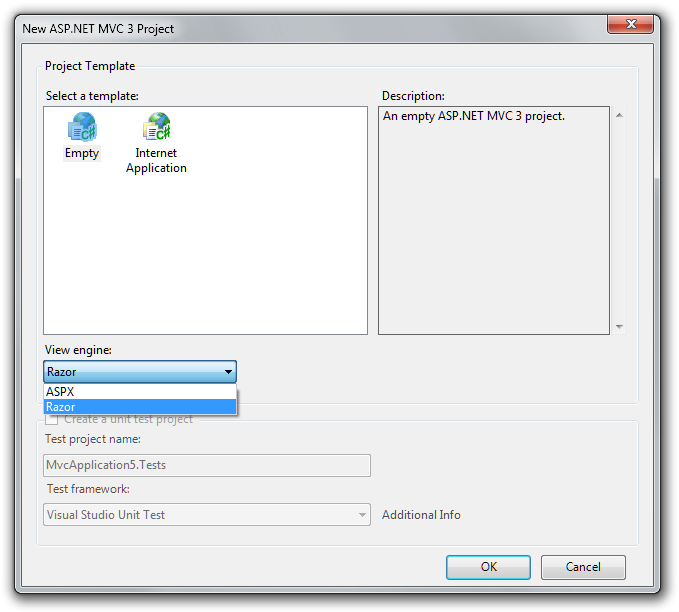

### Improved “New Project” Dialog Box

When you create a new project, the New Project dialog box now lets you specify the view engine as well as an ASP.NET MVC project type.

Support for modifying the list of templates and view engines listed in the dialog box is included in this release.

The default templates are the following:

Empty. Contains a minimal set of files for an ASP.NET MVC project, including the default directory structure for ASP.NET MVC projects, a Site.css file that contains the default ASP.NET MVC styles, and a Scripts directory that contains the default JavaScript files.

Internet Application. Contains sample functionality that demonstrates how to use the membership provider with ASP.NET MVC.

The list of project templates that is displayed in the dialog box is specified in the Windows registry.

### Sessionless Controllers

The new ControllerSessionStateAttribute gives you more control over session-state behavior for controllers by specifying a System.Web.SessionState.SessionStateBehavior enumeration value.

The following example shows how to turn off session state for all requests to a controller.

[!code-csharpMain]

   1:  [ControllerSessionState(SessionStateBehavior.Disabled)]
   2:  public class CoolController : Controller {
   3:      public ActionResult Index() {
   4:          object o = Session["Key"]; // Causes an exception.
   5:
   6:      }
   7:  }

The following example shows how to set read-only session state for all requests to a controller.

[!code-csharpMain]

   1:  [ControllerSessionState(SessionStateBehavior.ReadOnly)]
   2:  public class CoolController : Controller {
   3:      public ActionResult Index() {
   4:      Session["Key"] = "value"; // Value is not available in
   5:      the next request
   6:      }
   7:  }

### New Validation Attributes

CompareAttribute

The new CompareAttribute validation attribute lets you compare the values of two different properties of a model. In the following example, the ComparePassword property must match the Password field in order to be valid.

[!code-csharpMain]

   1:  public class User {
   2:      [Required]
   3:
   4:      public string Password { get; set; }
   5:      [Required, Compare("Password")]
   6:      public string ComparePassword { get; set; }
   7:  }

RemoteAttribute

The new RemoteAttribute validation attribute takes advantage of the jQuery Validation plug-in’s remote validator, which enables client-side validation to call a method on the server that performs the actual validation logic.

In the following example, the UserName property has the RemoteAttribute applied. When editing this property in an Edit view, client validation will call an action named UserNameAvailable on the UsersController class in order to validate this field.

[!code-csharpMain]

   1:  public class User {
   2:      [Remote("UserNameAvailable", "Users")]
   3:      public string UserName { get; set; }
   4:  }

The following example shows the corresponding controller.

[!code-csharpMain]

   1:  public class UsersController {
   2:      public bool UserNameAvailable(string username) {
   3:          if(MyRepository.UserNameExists(username)) {
   4:              return "false";
   5:          }
   6:          return "true";
   7:      }
   8:  }

By default, the property name that the attribute is applied to is sent to the action method as a query-string parameter.

### New Overloads for “LabelFor” and “LabelForModel” Methods

New overloads have been added for the LabelFor and LabelForModel methods that let you specify the label text. The following example shows how to use these overloads.

[!code-cshtmlMain]

   1:  @Html.LabelFor(m => m.PropertyName,
   2:  "Label Text");
   3:  @Html.LabelForModel("Label Text");

### Child Action Output Caching

The OutputCacheAttribute supports output caching of child actions that are called by using the Html.RenderAction or Html.Action helper methods. The following example shows a view that calls another action.

[!code-cshtmlMain]

   1:  Hi there. The uncached time is:
   2:  @DateTime.Now
   3:  The cached time is: @Html.Action("GetDate")

The GetDate action is annotated with the OutputCacheAttribute:

[!code-csharpMain]

   1:  [OutputCache(Duration = 100,
   2:  VaryByParam = "none")]
   3:  public string GetDate() {
   4:      return DateTime.Now.ToString();
   5:  }

When this code runs, the result of the call to Html.Action(“GetDate”) is cached for 100 seconds.

### “Add View” Dialog Box Improvements

When you add a strongly typed view, the Add View dialog box now filters out more non-applicable types than in previous releases, such as many core .NET Framework types. Also, the list is now sorted by the class name and not by the fully qualified type name, which makes it easier to find types. For example, the type name is now displayed as in the following example:

ClassName (namespace)

In earlier releases, this would have been displayed as the following:

Namespace.ClassName

### Granular Request Validation

The Exclude property of ValidateInputAttribute no longer exists. Instead, to have request validation skipped for specific properties of a model during model binding, use the new SkipRequestValidationAttribute.

For example, suppose an action method is used to edit a blog post:

[!code-csharpMain]

   1:  [HttpPost]
   2:  public ActionResult Edit(BlogPostViewModel post) {
   3:      // Save the post in the database
   4:  }

The following example shows the view model for a blog post.

[!code-csharpMain]

   1:  public class BlogPostViewModel {
   2:      public int Id {get; set;}
   3:
   4:      public string Subject {get; set;}
   5:
   6:      public string Description {get; set;}
   7:  }

When a user submits some markup for the Description property, model binding will fail due to request validation. To disable request validation during model binding for the blog post Description, apply the SkipRequpestValidationAttribute to the property, as shown in this example:.

[!code-csharpMain]

   1:  public class BlogPostViewModel {
   2:      public int Id {get; set;}
   3:
   4:      public string Subject {get; set;}
   5:
   6:      [SkipRequestValidation]
   7:
   8:      public string Description {get; set;}
   9:  }

Alternatively, to turn off request validation for every property of the model, apply ValidateInputAttribute with a value of false to the action method:

[!code-csharpMain]

   1:  [HttpPost]
   2:  [ValidateInput(false)]
   3:  public ActionResult Edit(BlogPostViewModel post) {
   4:      // Save the post in the database
   5:  }

## Breaking Changes

## Known Issues

## ASP.NET MVC 3 Beta

ASP.NET MVC 3 Beta was released on October 6, 2010. The following notes are specific to the Beta release, and are subject to any updates or changes referenced in the ASP.NET MVC 3 Release Candidate section above.

New Featuresin ASP.NET MVC 3 Beta

This section describes features that have been introduced in the ASP.NET MVC 3 Beta release.

NuGet Package Manager

ASP.NET MVC 3 includes NuGet Package Manager, which is an integrated package management tool for adding libraries and tools to Visual Studio projects. For the most part, it automates the steps that developers take today to get a library into their source tree.

You can work with NuGet as a command line tool, as an integrated console window inside Visual Studio 2010, from the Visual Studio context menu, and as set of PowerShell cmdlets.

For more information about NuGet, read the NuGet Documentation.

Improved New Project Dialog Box

When you create a new project, the New Project dialog box now lets you specify the view engine as well as an ASP.NET MVC project type.

Support for modifying the list of templates and view engines listed in the dialog box is not included in this release.

The default templates are the following:

Empty. Contains a minimal set of files for an ASP.NET MVC project, including the default directory structure for ASP.NET MVC projects, a small Site.css file that contains the default ASP.NET MVC styles, and a Scripts directory that contains the default JavaScript files.

Internet Application. Contains sample functionality that demonstrates how to use the membership provider within ASP.NET MVC.

Simplified Way to Specify Strongly Typed Models in Razor Views

The way to specify the model type for strongly typed Razor views has been simplified by using the new @model directive for CSHTML views and @ModelType directive for VBHTML views. In earlier versions of ASP.NET MVC, you would specify a strongly typed model for Razor views this way:

[!code-cshtmlMain]

   1:  @inherits System.Web.Mvc.WebViewPage

In this release, you can use the following syntax:

[!code-cshtmlMain]

   1:  @model MyModelNamespace.MyModelType

Support for New ASP.NET Web Pages Helper Methods

The new ASP.NET Web Pages technology includes a set of helper methods that are useful for adding commonly used functionality to views and controllers. ASP.NET MVC 3 supports using these helper methods within controllers and views (where appropriate). These methods are contained in the System.Web.Helpers assembly. The following table lists a few of the ASP.NET Web Pages helper methods.

Helper Description
Chart Renders a chart within a view. Contains methods such as Chart.ToWebImage, Chart.Save, and Chart.Write.
Crypto Uses hashing algorithms to create properly salted and hashed passwords.
WebGrid Renders a collection of objects (typically, data from a database) as a grid. Supports paging and sorting.
WebImage Renders an image.
WebMail Sends an email message.

A quick reference topic that lists the helpers and basic syntax is available as part of the ASP.NET Razor syntax documentation at the following URL:

https://www.asp.net/webmatrix/tutorials/asp-net-web-pages-api-reference

Additional Dependency Injection Support

Building on the ASP.NET MVC 3 Preview 1 release, the current release includes added support for two new services and four existing services, and improved support for dependency resolution and the Common Service Locator.

New IControllerActivator Interface for Fine-Grained Controller Instantiation

The new IControllerActivator interface provides more fine-grained control over how controllers are instantiated via dependency injection. The following example shows the interface:

[!code-csharpMain]

   1:  namespace System.Web.Mvc {
   2:      using System.Web.Routing;
   3:
   4:      public interface IControllerActivator {
   5:          IController Create(RequestContext requestContext, Type controllerType);
   6:      }
   7:  }

Contrast this to the role of the controller factory. A controller factory is an implementation of the IControllerFactory interface, which is responsible both for locating a controller type and for instantiating an instance of that controller type.

Controller activators are responsible only for instantiating an instance of a controller type. They do not perform the controller type lookup. After locating a proper controller type, controller factories should delegate to an instance of IControllerActivator to handle the actual instantiation of the controller.

The DefaultControllerFactory class has a new constructor that accepts an IControllerFactory instance. This lets you apply Dependency Injection to manage this aspect of controller creation without having to override the default controller-type lookup behavior.

IServiceLocator Interface Replaced with IDependencyResolver

Based on community feedback, the ASP.NET MVC 3 Beta release has replaced the use of the IServiceLocator interface with a slimmed-down IDependencyResolver interface specific to the needs of ASP.NET MVC. The following example shows the new interface:

[!code-csharpMain]

   1:  namespace System.Web.Mvc {
   2:      using System.Collections.Generic;
   3:
   4:      public interface IDependencyResolver {
   5:          object GetService(Type serviceType);
   6:          IEnumerable<object> GetServices(Type serviceType);
   7:      }
   8:  }

As part of this change, the ServiceLocator class was also replaced with the DependencyResolver class. Registration of a dependency resolver is similar to earlier versions of ASP.NET MVC:

[!code-csharpMain]

   1:  DependencyResolver.SetResolver(myResolver);

Implementations of this interface should simply delegate to the underlying dependency injection container to provide the registered service for the requested type.

When there are no registered services of the requested type, ASP.NET MVC expects implementations of this interface to return null from GetService and to return an empty collection from GetServices.

The new DependencyResolver class lets you register classes that implement either the new IDependencyResolver interface or the Common Service Locator interface (IServiceLocator). For more information about Common Service Locator, see CommonServiceLocator on GitHub.

New IViewActivator Interface for Fine-Grained View Page Instantiation

The new IViewPageActivator interface provides more fine-grained control over how view pages are instantiated via dependency injection. This applies to both WebFormView instances and RazorView instances. The following example shows the new interface:

[!code-csharpMain]

   1:  namespace System.Web.Mvc {
   2:      public interface IViewPageActivator {
   3:          object Create(ControllerContext controllerContext, Type type);
   4:      }
   5:  }

These classes now accept an IViewPageActivator constructor argument, which lets you use dependency injection to control how the ViewPage, ViewUserControl, and WebViewPage types are instantiated.

New Dependency Resolver Support for Existing Services

The new release includes dependency resolution support for the following services:

New Support for Unobtrusive jQuery-Based Ajax

ASP.NET MVC includes Ajax helper methods such as the following:

These methods use JavaScript to invoke an action method on the server rather than using a full postback. This functionality has been updated to take advantage of jQuery in an unobtrusive manner. Rather than intrusively emitting inline client scripts, these helper methods separate the behavior from the markup by emitting HTML5 attributes using the data-ajax prefix. Behavior is then applied to the markup by referencing the appropriate JavaScript files. Make sure that the following JavaScript files are referenced:

This feature is enabled by default in the Web.config file in the ASP.NET MVC 3 new project templates, but is disabled by default for existing projects. For more information, see Added application-wide flags for client validation and unobtrusive JavaScript later in this document.

New Support for Unobtrusive jQuery Validation

By default, ASP.NET MVC 3 Beta uses jQuery validation in an unobtrusive manner in order to perform client-side validation. To enable unobtrusive client validation, make a call like the following from within a view:

[!code-csharpMain]

   1:  Html.EnableClientValidation();

This requires that ViewContext.UnobtrusiveJavaScriptEnabled property is set to true, which you can do by making the following call:

[!code-csharpMain]

   1:  Html.EnableUnobtrusiveJavaScript();

Also make sure the following JavaScript files are referenced.

This feature is enabled on by default in the Web.config file in the ASP.NET MVC 3 new project templates, but is disabled by default for existing projects. For more information, see New application-wide flags for client validation and unobtrusive JavaScript later in this document.

New Application-Wide Flags for Client Validation and Unobtrusive JavaScript

You can enable or disable client validation and unobtrusive JavaScript globally using static members of the HtmlHelper class, as in the following example:

[!code-csharpMain]

   1:  HtmlHelper.ClientValidationEnabled = true;
   2:  HtmlHelper.UnobtrusiveJavaScriptEnabled = true;

The default project templates enable unobtrusive JavaScript by default. You can also enable or disable these features in the root Web.config file of your application using the following settings:

[!code-xmlMain]

   1:  <configuration>
   2:          <appSettings>
   3:              <add key="ClientValidationEnabled" value="true"/>
   4:              <add key="UnobtrusiveJavaScriptEnabled" value="true"/>
   5:          </appSettings>
   6:      </configuration>

Because you can enable these features by default, new overloads were introduced to the HtmlHelper class that let you override the default settings, as shown in the following examples:

[!code-csharpMain]

   1:  public void EnableClientValidation();
   2:  public void EnableClientValidation(bool enabled);
   3:  public void EnableUnobtrusiveJavaScript();
   4:  public void EnableUnobtrusiveJavaScript(bool enabled);

For backward compatibility, both of these features are disabled by default.

New Support for Code that Runs Before Views Run

You can now put a file named _viewstart.cshtml (or _viewstart.vbhtml) in the Views directory and add code to it that will be shared among multiple views in that directory and its subdirectories. For example, you might put the following code into the _viewstart.cshtml page in the ~/Views folder:

[!code-cshtmlMain]

   1:  @{
   2:      Layout = "~/Views/Shared/_Layout.cshtml";
   3:  }

This sets the layout page for every view within the Views folder and all its subfolders recursively. When a view is being rendered, the code in the _viewstart.cshtml file runs before the view code runs. The _viewstart.cshtml code applies to every view in that folder.

By default, the code in the _viewstart.cshtml file also applies to views in any subfolder. However, individual subfolders can have their own version of the _viewstart.cshtml file; in that case, the local version takes precedence. For example, to run code that is common to all views for the HomeController, put a _viewstart.cshtml file in the ~/Views/Home folder.

New Support for the VBHTML Razor Syntax

The previous ASP.NET MVC preview included support for views using Razor syntax based on C#. These views use the .cshtml file extension. As part of ongoing work to support Razor, the ASP.NET MVC 3 Beta introduces support for the Razor syntax in Visual Basic, which uses the .vbhtml file extension.

For an introduction to using Visual Basic syntax in VBHTML pages, see the tutorial at the following URL:

https://www.asp.net/webmatrix/tutorials/asp-net-web-pages-visual-basic

More Granular Control over ValidateInputAttribute

ASP.NET MVC has always included the ValidateInputAttribute class, which invokes the core ASP.NET request validation infrastructure to make sure that the incoming request does not contain potentially malicious input. By default, input validation is enabled. It is possible to disable request validation by using the ValidateInputAttribute attribute, as in the following example:

[!code-csharpMain]

   1:  [ValidateInput(false)]
   2:  public ActionResult SomeAction() {
   3:      return View();
   4:  }

However, many web applications have individual form fields that need to allow HTML, while the remaining fields should not. The ValidateInputAttribute class now lets you specify a list of fields that should not be included in request validation.

For example, if you are developing a blog engine, you might want to allow markup in the Body and Summary fields. These fields might be represented by two input element, each with a name attribute corresponding to the property name (“Body” and “Summary”). To disable request validation for these fields only, specify the names (comma-separated) in the Exclude property of the ValidateInput class, as in the following example:

[!code-csharpMain]

   1:  [ValidateInput(true, Exclude="Body, Summary")]
   2:  public ActionResult About() {
   3:      return View();
   4:  }

Helpers Convert Underscores to Hyphens for HTML Attribute Names Specified Using Anonymous Objects

Helper methods let you specify attribute name/value pairs using an anonymous object, as in the following example:

[!code-csharpMain]

   1:  Html.TextBox("Name", "Value", new {title = "Title"})

This approach doesn’t let you use hyphens in the attribute name, because a hyphen cannot be used for a property name in ASP.NET. However, hyphens are important for custom HTML5 attributes; for example, HTML5 uses the “data-” prefix.

At the same time, underscores cannot be used for attribute names in HTML, but are valid within property names. Therefore, if you specify attributes using an anonymous object, and if the attribute names include an underscore,, helper methods will convert the underscores to hyphens. For example, the following helper syntax uses an underscore:

[!code-csharpMain]

   1:  Html.TextBox("Name", "Value", new {data_required = "true"})

The previous example renders the following markup when the helper runs:

[!code-htmlMain]

   1:  <input data-required="true" id="Name" name="Name"
   2:         type="textbox" value="Value" />

Bug Fixes

The default object template for the EditorFor and DisplayFor template helpers now supports the ordering specified in the DisplayAttribute.Order property. (In previous versions, the Order setting was not used.)

Client validation now supports validation of overridden properties that have validation attributes applied.

JsonValueProviderFactory is now registered by default.

Breaking Changes

The order of execution for exception filters has changed for exception filters that have the same Order value. In ASP.NET MVC 2 and earlier, exception filters on the controller with the same Order as those on an action method were executed before the exception filters on the action method. This would typically be the case when exception filters were applied without a specified Order value. In ASP.NET MVC 3, this order has been reversed so that the most specific exception handler executes first. As in earlier versions, if the Order property is explicitly specified, the filters are run in the specified order.

Known Issues

During installation, the EULA acceptance dialog box displays the license terms in a window that is smaller than intended.

Razor views do not have IntelliSense support nor syntax highlighting. It is anticipated that support for Razor syntax in Visual Studio will be included as part of a later release.

When you are editing a Razor view (CSHTML file), the Go To Controller menu item in Visual Studio will not be available, and there are no code snippets.

When using the @model syntax to specify a strongly typed CSHTML view, language-specific shortcuts for types are not recognized. For example, @model int will not work, but @model Int32 will work. The workaround for this bug is to use the actual type name when you specify the model type.

When using the @model syntax to specify a strongly typed CSHTML view (or @ModelType to specify a strongly typed VBHTML view), nullable types and array declarations are not supported. For example, @model int? is not supported. Instead, use @model Nullable<Int32>. The syntax @model string[] is also not supported; instead, use @model IList<string>.

When you upgrade an ASP.NET MVC 2 project to ASP.NET MVC 3, make sure to add the following to the appSettings section of the Web.config file:

[!code-xmlMain]

   1:  <appSettings>
   2:    <add key="enableSimpleMembership" value="false" />
   3:  </appSettings>

There’s a known issue that causes Forms Authentication to always redirect unauthenticated users to ~/Account/Login, ignoring the forms authentication setting used in Web.config. The workaround is to add the following app setting.

[!code-xmlMain]

   1:  <add key="autoFormsAuthentication" value="false" />

Disclaimer

© 2011 Microsoft Corporation. All rights reserved. This document is provided “as-is.” Information and views expressed in this document, including URL and other Internet Web site references, may change without notice. You bear the risk of using it.

This document does not provide you with any legal rights to any intellectual property in any Microsoft product. You may copy and use this document for your internal, reference purposes.



Comments ( )
Link to this page: //www.vb-net.com/AspNet-DocAndSamples-2017/aspnet/whitepapers/mvc3-release-notes.htm
< THANKS ME>
