Dockerizing Masternodes
- 1. Last minute changing.
- 2. Build coinbase
- 3. Build coinbase-boost
- 4. Biuld genesisx
- 5. Build digiwage
- 6. Build kalkulus
- 7. Build giant
- 8. Build unigrid
- 9. How to start this dockers
- 10. How to connect to working container and check masternode.
- 11. Allow exposed port in docker host.
1. Last minute changing.
Warning! Finally I have replaced /tmp/ directory in each my docker images to /root/ because something going wrong with /tmp directory. So, you need to rebuild images by the same way:
# sudo docker build -f digiwage.dockerfile -t alexev275/digiwage .
FROM alexev275/digiwage:latest COPY digiwage-startup.sh /startup.sh COPY digiwage.conf /root/digiwage-tmp.conf RUN chmod 777 /startup.sh
And, of course, you need to modify startup.sh files by the same way:
... set -eux -o pipefail ... sed -i "s/{{RPC_PASSWORD}}/$RPC_PASSWORD/g" /root/digiwage-tmp.conf sed -i "s/{{RPC_ALLOW_IP}}/$RPC_ALLOW_IP/g" /root/digiwage-tmp.conf sed -i "s/{{RPC_CONNECT_IP}}/$RPC_CONNECT_IP/g" /root/digiwage-tmp.conf sed -i "s/{{RPC_PORT}}/$RPC_PORT/g" /root/digiwage-tmp.conf sed -i "s/{{EXTERNAL_IP}}/$EXTERNAL_IP/g" /root/digiwage-tmp.conf sed -i "s/{{MASTERNODE_PRIV_KEY}}/$MASTERNODE_PRIV_KEY/g" /root/digiwage-tmp.conf sed -i "s/{{TX_INDEX}}/$TX_INDEX/g" /root/digiwage-tmp.conf sed -i "s/{{SEED_NODE}}/$SEED_NODE/g" /root/digiwage-tmp.conf sed -i "s/{{PORT}}/$PORT/g" /root/digiwage-tmp.conf cat /root/digiwage-tmp.conf cp /root/digiwage-tmp.conf /root/.digiwage/digiwage.conf ulimit -m unlimited ulimit -v unlimited ulimit -n 65536 cat /root/.digiwage/digiwage.conf exec digiwaged -conf=/root/.digiwage/digiwage.conf -reindex -forcestart

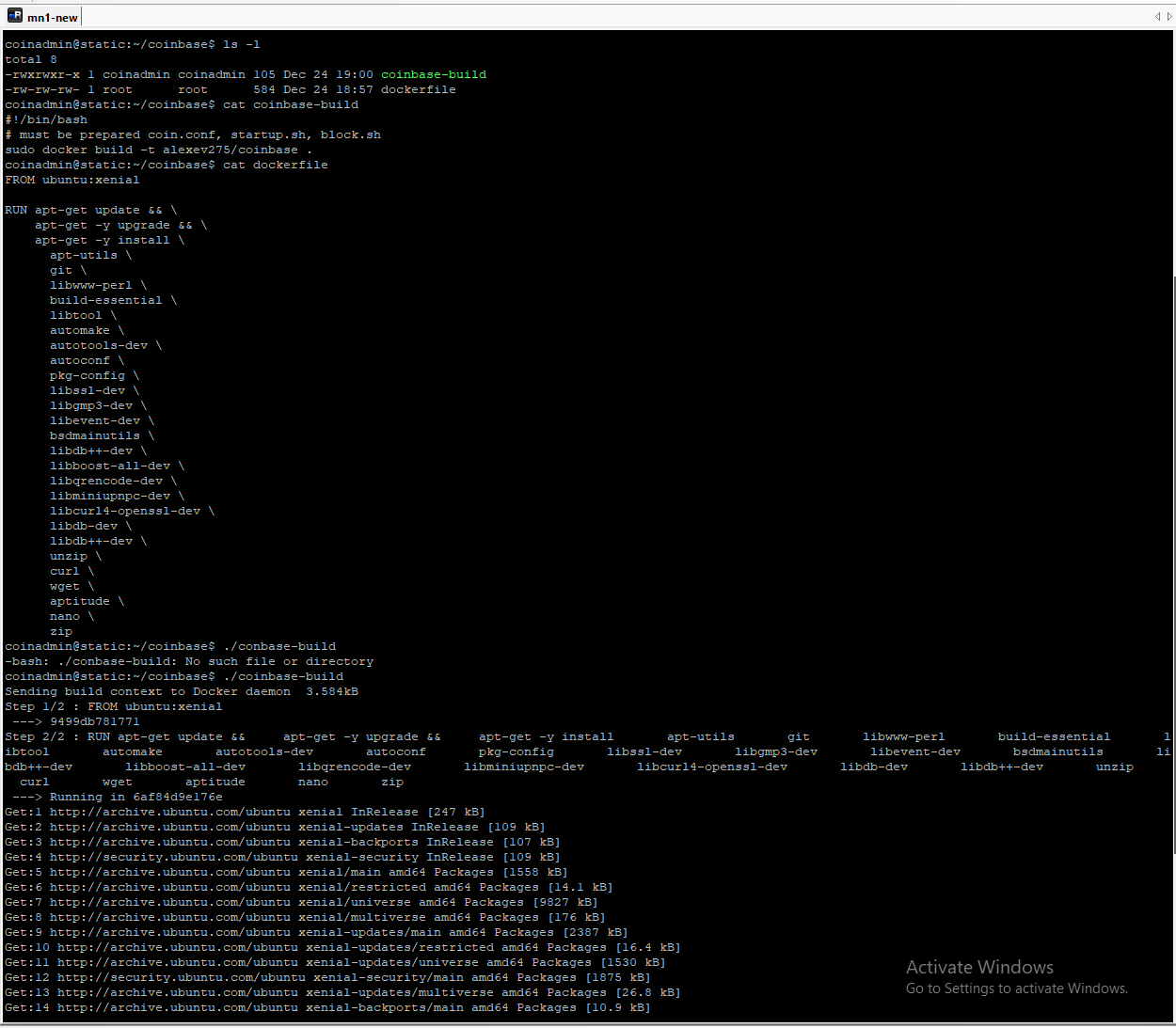

2. Build coinbase [download from docker hub]
1: FROM ubuntu:xenial
2:
3: RUN apt-get update && \
4: apt-get -y upgrade && \
5: apt-get -y install \
6: apt-utils \
7: git \
8: libwww-perl \
9: build-essential \
10: libtool \
11: automake \
12: autotools-dev \
13: autoconf \
14: pkg-config \
15: libssl-dev \
16: libgmp3-dev \
17: libevent-dev \
18: bsdmainutils \
19: libdb++-dev \
20: libboost-all-dev \
21: libqrencode-dev \
22: libminiupnpc-dev \
23: libcurl4-openssl-dev \
24: libdb-dev \
25: libdb++-dev \
26: unzip \
27: curl \
28: wget \
29: aptitude \
30: nano \
31: zip

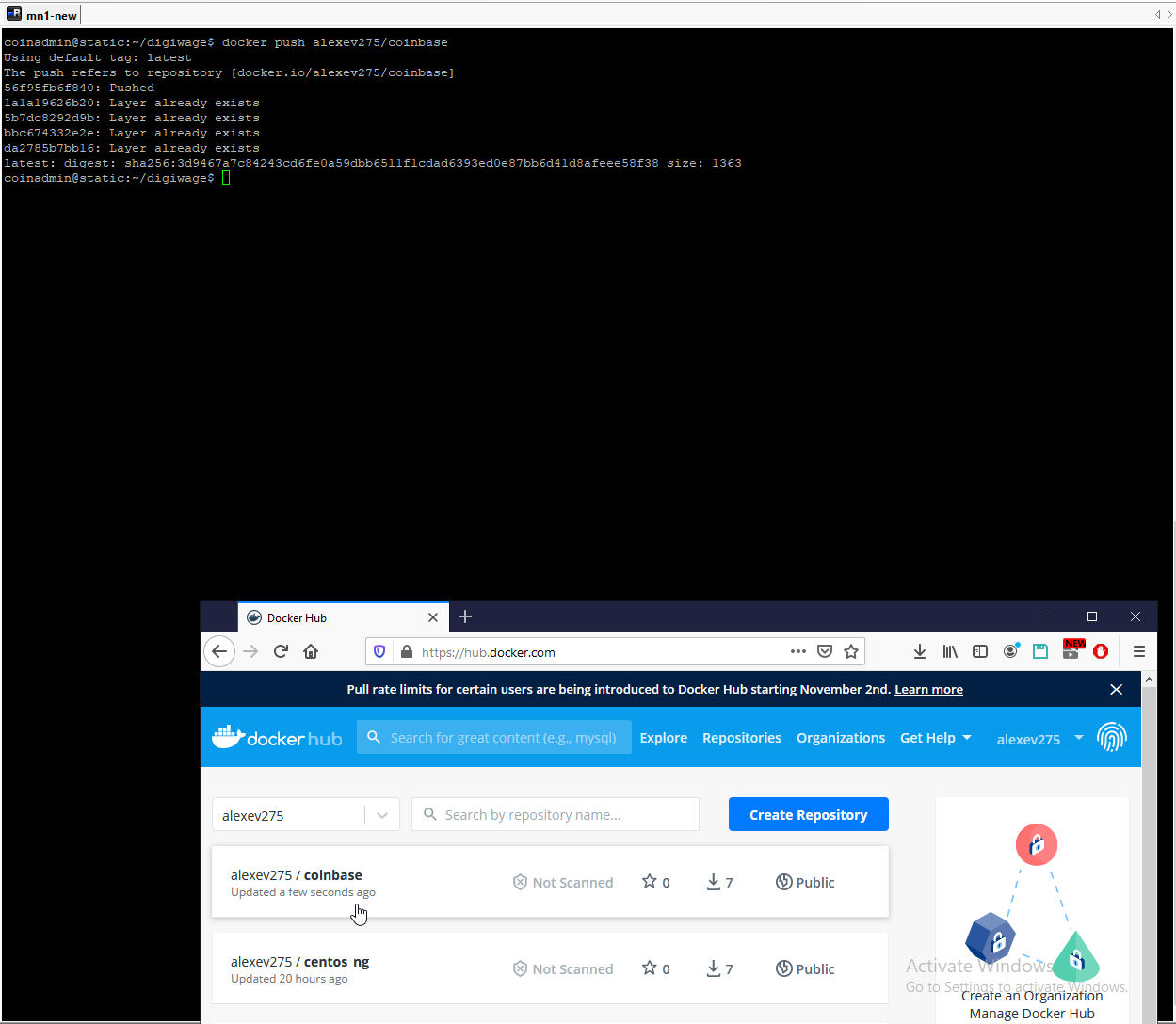

This docker creaiting by simplest way. Than need only docker login -u alexev275 -p and docker push alexev275/coinbase
3. Build coinbase-boost [download from docker hub]

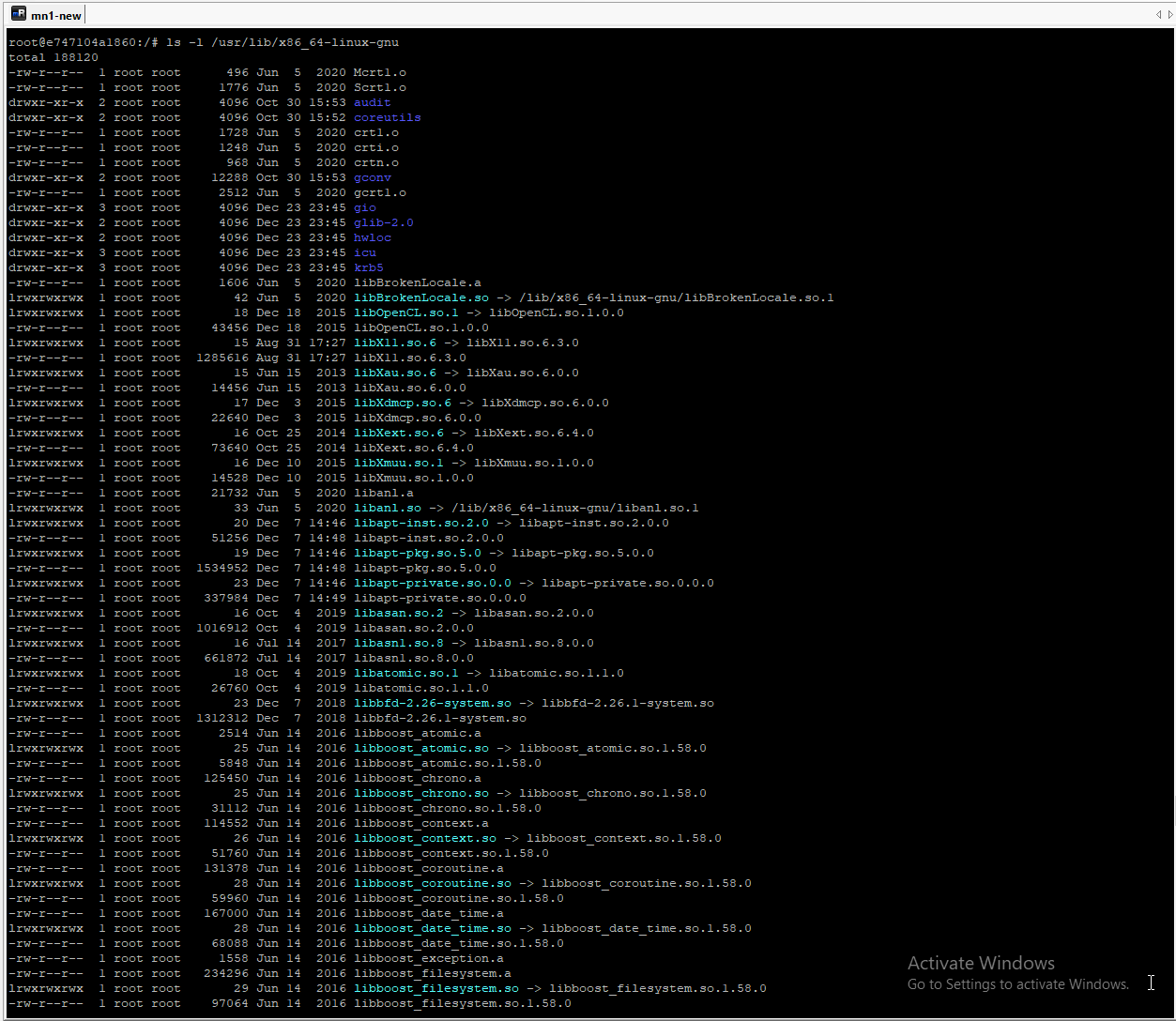

As start point Ubuntu 16.04 contains boost 1.58, but most of software use more fresh version.

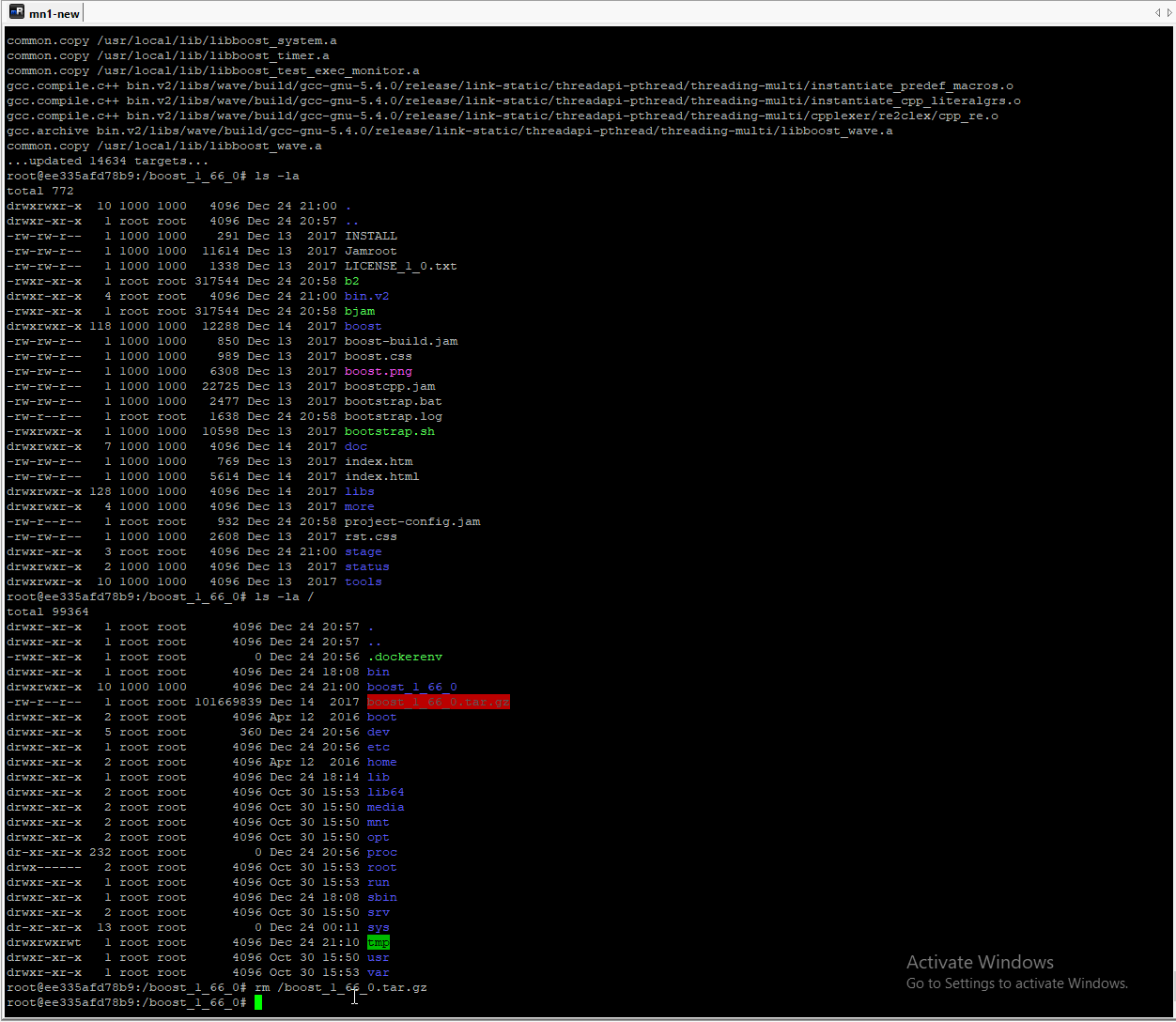

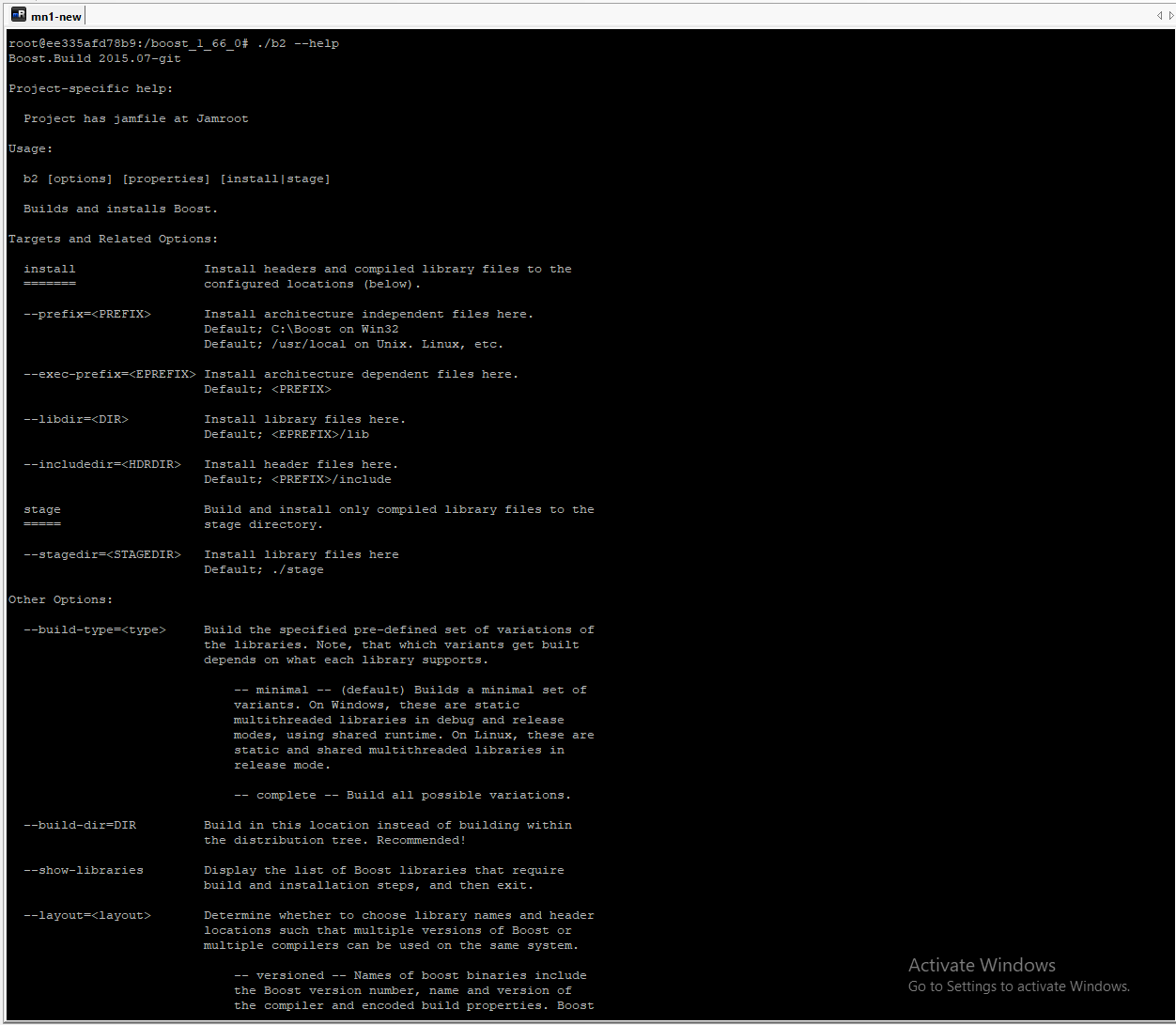

I have produced this image in this way compile boost 1.66.0 from source on ubuntu 16.04 as start coinbase image interactively - docker run -it alexev275/coinbase

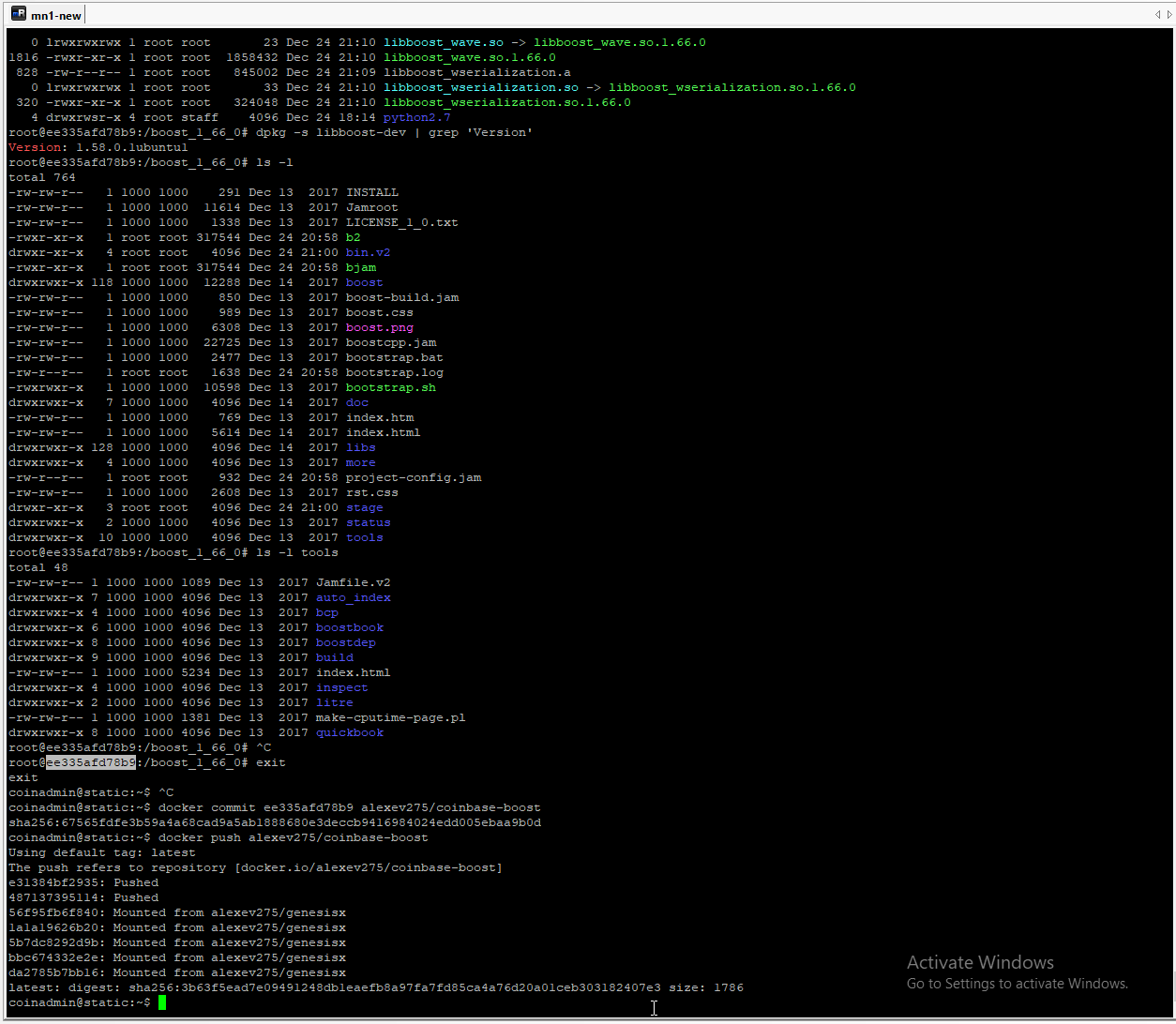

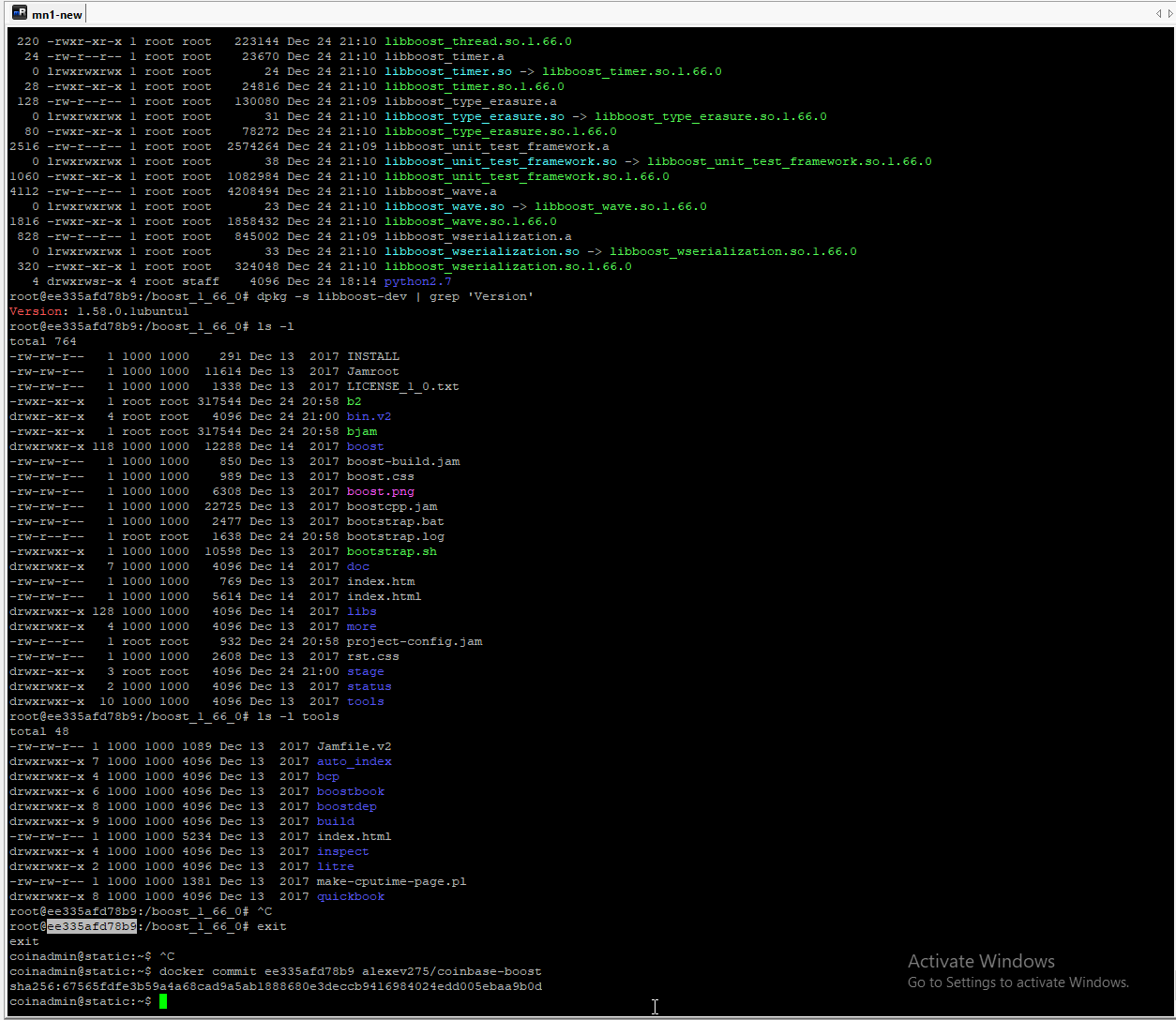

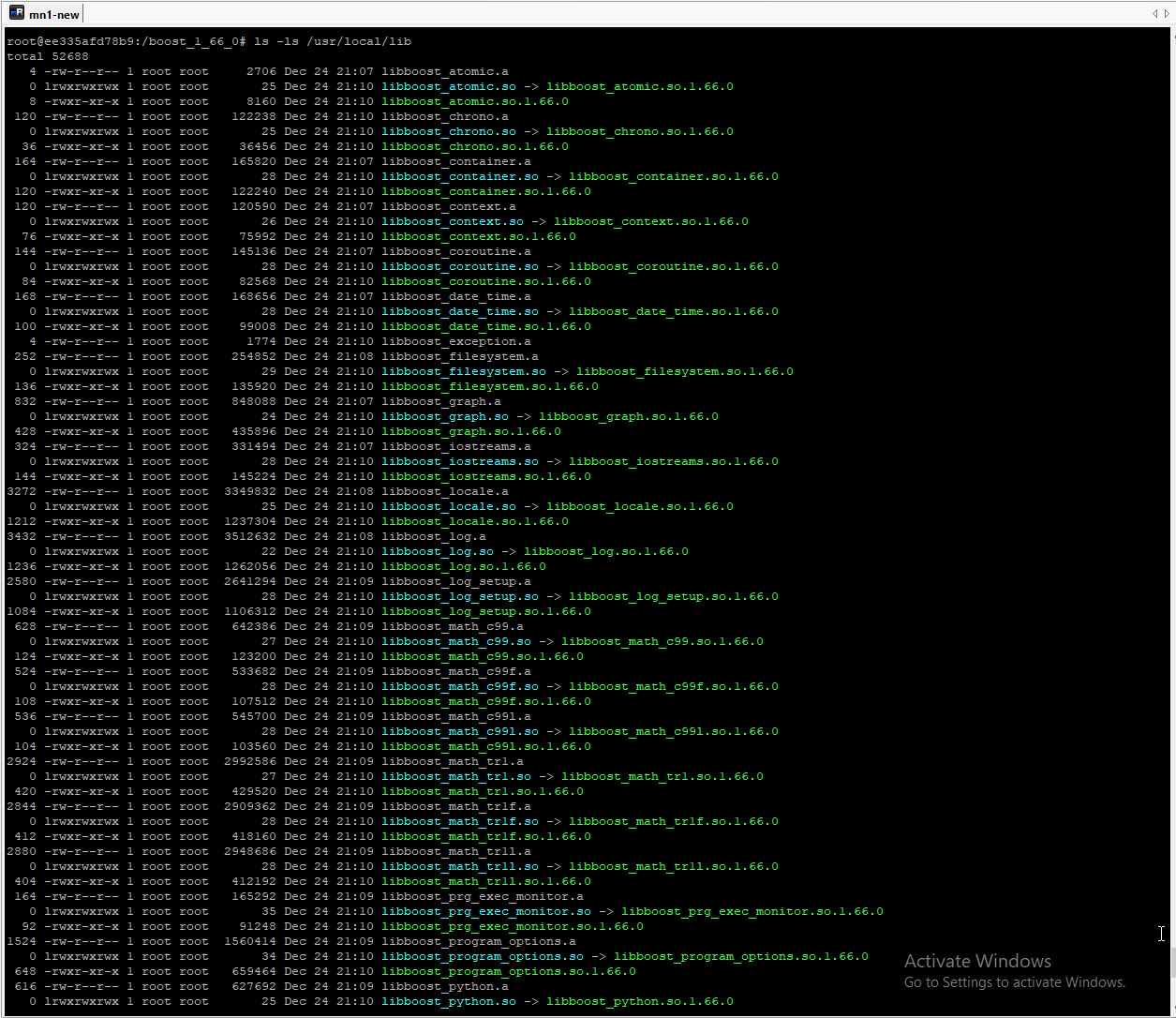

After installation I have received boost 1.66, but dpkg -s libboost-dev | grep 'Version' still show 1.58.
Then I have commited transaction and push this docker to docker hub.
4. Biuld genesisx [download from docker hub]
genesis-build
1: #!/bin/bash
2: # must be prepared genesisx.conf, startup.sh, block.sh
3: sudo docker build -f genesisx1.dockerfile -t alexev275/genesisx .
dockerfile
1: FROM alexev275/coinbase
2:
3: ## Enviroment Variables For Propper Functioning
4: ENV DEBIAN_FRONTEND=noninteractive
5: ENV RPC_USER=
6: ENV RPC_PASSWORD=
7: ENV RPC_PORT=
8:
9: ## Set Work Directory to root
10: WORKDIR /root
11:
12: ## Clone from github
13: RUN git clone https://github.com/genesis-x/genesis-x/ genesisx
14:
15: ## Change Working Directory - Pre Build
16: WORKDIR /root/genesisx
17:
18: # Perform wallet build
19: RUN chmod 777 share/*sh
20: RUN chmod 777 src/leveldb/build*
21: RUN bash ./autogen.sh && \
22: ./configure --with-incompatible-bdb && \
23: make -j 6 && \
24: strip src/genesisxd && \
25: make install
26:
27: ## Set working directory
28: WORKDIR /root
29:
30: ## Remove source folder
31: RUN rm -rf giantcoin
32:
33: ## Copy files to build system ready for execution
34:
35: COPY genesisx.conf /tmp/genesisx.conf
36: COPY startup.sh /
37: COPY block.sh /
38: RUN chmod 777 /block.sh
39: RUN chmod 777 /startup.sh
40:
41:
42: ## Make wallet datadirectory
43: RUN mkdir /root/.genesisx
44:
45: VOLUME /root/share
46: ## Set Startup Command
47: CMD ["/startup.sh"]
genesisx.conf
1: blocknotify=/block.sh %s
2: dbcache=64
3: maxmempool=128
4: maxconnections=8
5: par=1
6: rpcthreads=1
7: rpcuser=insane
8: rpcpassword={{RPC_PASSWORD}}
9: rpcallowip={{RPC_ALLOW_IP}}
10: rpcconnect={{RPC_CONNECT_IP}}
11: rpcport={{RPC_PORT}}
12: port={{PORT}}
13: externalip={{EXTERNAL_IP}}
14: server=1
15: listen=1
16: daemon=0
17: logtimestamps=1
18: txindex={{TX_INDEX}}
19: maxconnections=8
20: mnconflock=1
21: masternode=1
22: masternodeaddr={{EXTERNAL_IP}}:5555
23: masternodeprivkey={{MASTERNODE_PRIV_KEY}}
24: stake=0
25: staking=0
block.sh
1: #!/bin/bash
2: clear
3:
4: if [ -z $CONTAINER_ID ]; then
5: echo "ContainerID Not Set"
6: fi
7:
8: DATE=$(date)
9: BLOCK=$1
10: CONTAINERID=$CONTAINER_ID
11: BALANCE=$(genesisx-cli getbalance)
12: BLOCKS=$(genesisx-cli getblockcount)
13: BLOCKHASH=$(genesisx-cli getbestblockhash)
14: CONNCOUNT=$(genesisx-cli getconnectioncount)
15: DIFF=$(genesisx-cli getdifficulty)
16: BALANCE=$(genesisx-cli getbalance)
17:
18: PUBKEY=$(genesisx-cli masternode status | grep pubkey | sed 's/"pubkey" : //g' | sed 's/,//g' | sed 's/["]//g' | sed 's/ //g' | sed 's/ //g' )
19: SERVICE=$(genesisx-cli masternode status | grep service | sed 's/"service" : //g' | sed 's/,//g' | sed 's/["]//g' | sed 's/ //g')
20: STATUS=$(genesisx-cli masternode status | grep status | sed 's/"status" : //g' | sed 's/,//g' | sed 's/["]//g' | sed 's/ /-/g' | sed 's/----//g' | sed 's/ //g' )
21:
22: DISKSTATUS=$(df / | grep overlay | sed 's/ /-/g' | sed 's/--/-/g' | sed 's/-----/-/g' | sed 's/[/]//g' )
23: LOADAVG=$(cat /proc/loadavg | sed 's/ /-/g' | sed 's/[/]//g')
24: UPTIME=$(cat /proc/uptime | sed 's/ /-/g')
25:
26: TOTALMEM=$(cat /proc/meminfo | grep MemTotal: | sed 's/MemTotal://g' | sed 's/ kB//g' | sed 's/ //g')
27: FREEMEM=$(cat /proc/meminfo | grep MemFree: | sed 's/MemFree://g' | sed 's/ kB//g' | sed 's/ //g')
28: AVAILMEM=$(cat /proc/meminfo | grep MemAvailable: | sed 's/MemAvailable://g' | sed 's/ kB//g' | sed 's/ //g')
29:
30: echo "";
31: echo "At " $DATE
32: echo "A new block with hash " $BLOCK
33: echo "was detected, the current block height is " $BLOCKS
34: echo "the wallet balance is " $BALANCE
35: echo "Container = " $CONTAINERID
36: echo "BlockHash = " $BLOCKHASH
37: echo "Connection Count = " $CONNCOUNT
38: echo "Diff = " $DIFF
39: echo "Balance = " $BALANCE
startup.sh
1: #!/bin/bash
--> set -eux -o pipefail
2: if [ -z $RPC_PASSWORD ]; then
3: echo "Need to set env RPC_PASSWORD"
4: exit 1
5: fi
6:
7: if [ -z $EXTERNAL_IP ]; then
8: echo "Need to set env EXTERNAL_IP"
9: exit 1
10: fi
11:
12: if [ -z $MASTERNODE_PRIV_KEY ]; then
13: echo "Need to set env MASTERNODE_PRIV_KEY"
14: exit 1
15: fi
16:
17:
18: if [ -z $TX_INDEX ]; then
19: echo "Need to set env TX_INDEX"
20: exit 1
21: fi
22:
23: if [ -z $SEED_NODE ]; then
24: echo "Need to set env SEED_NODE"
25: exit 1
26: fi
27:
28: if [ -z $PORT ]; then
29: PORT=10255
30: fi
31:
32: if [ -z $RPC_PORT ]; then
33: RPC_PORT=10257
34: fi
35:
36: if [ -z $RPC_ALLOW_IP ]; then
37: RPC_ALLOW_IP=127.0.0.1
38: fi
39:
40: if [ -z $RPC_CONNECT_IP ]; then
41: RPC_CONNECT_IP=127.0.0.1
42: fi
43:
44: sed -i "s/{{RPC_PASSWORD}}/$RPC_PASSWORD/g" /tmp/genesisx.conf
45: sed -i "s/{{RPC_ALLOW_IP}}/$RPC_ALLOW_IP/g" /tmp/genesisx.conf
46: sed -i "s/{{RPC_CONNECT_IP}}/$RPC_CONNECT_IP/g" /tmp/genesisx.conf
47: sed -i "s/{{RPC_PORT}}/$RPC_PORT/g" /tmp/genesisx.conf
48: sed -i "s/{{EXTERNAL_IP}}/$EXTERNAL_IP/g" /tmp/genesisx.conf
49: sed -i "s/{{MASTERNODE_PRIV_KEY}}/$MASTERNODE_PRIV_KEY/g" /tmp/genesisx.conf
50: sed -i "s/{{TX_INDEX}}/$TX_INDEX/g" /tmp/genesisx.conf
51: sed -i "s/{{SEED_NODE}}/$SEED_NODE/g" /tmp/genesisx.conf
52: sed -i "s/{{PORT}}/$PORT/g" /tmp/genesisx.conf
53:
54: cp /tmp/genesisx.conf /root/.genesisx/genesisx.conf
55:
56: ulimit -m unlimited
57: ulimit -v unlimited
58: ulimit -n 65536
59: exec genesisxd -conf=/root/.genesisx/genesisx.conf
5. Build digiwage [download from docker hub]
similar as above
6. Build kalkulus [download from docker hub]
similar as above
7. Build giant [download from docker hub]
similar as above
8. Build unigrid [download from docker hub]
similar as above
Unigrid is not possible to assemble from source code. I have created unigrid docker by the same way.
- Download tar.gz outside of container.
# curl -OL https://github.com/unigrid-project/daemon/releases/download/2.0.1/unigrid-2.0.1-x86_64-linux-gnu.tar.gz
1: ## Use Base Template
2: FROM alexev275/coinbase
3:
4: ## Enviroment Variables For Propper Functioning
5: ENV DEBIAN_FRONTEND=noninteractive
6: ENV RPC_USER=
7: ENV RPC_PASSWORD=
8: ENV RPC_PORT=
9: ENV BOOST_ROOT=
10:
11: ## Set Work Directory to root
12: WORKDIR /root
13:
14: #download outside of container
15: #curl -OL https://github.com/unigrid-project/daemon/releases/download/2.0.1/unigrid-2.0.1-x86_64-linux-gnu.tar.gz
16:
17: ## Copy files to build system ready for execution
18: COPY unigrid.conf /tmp/unigrid.conf
19: COPY startup.sh /
20: COPY block.sh /
21: RUN chmod 777 /block.sh
22: RUN chmod 777 /startup.sh
23:
24: ## Make wallet datadirectory
25: RUN mkdir /root/.unigrid
26:
27: # Optional Copy blockchain.zip
28: #COPY bootstrap.zip /root/.unigrid
29:
30: VOLUME /root/share
31:
32: ## Set Startup Command
33: CMD ["/startup.sh"]

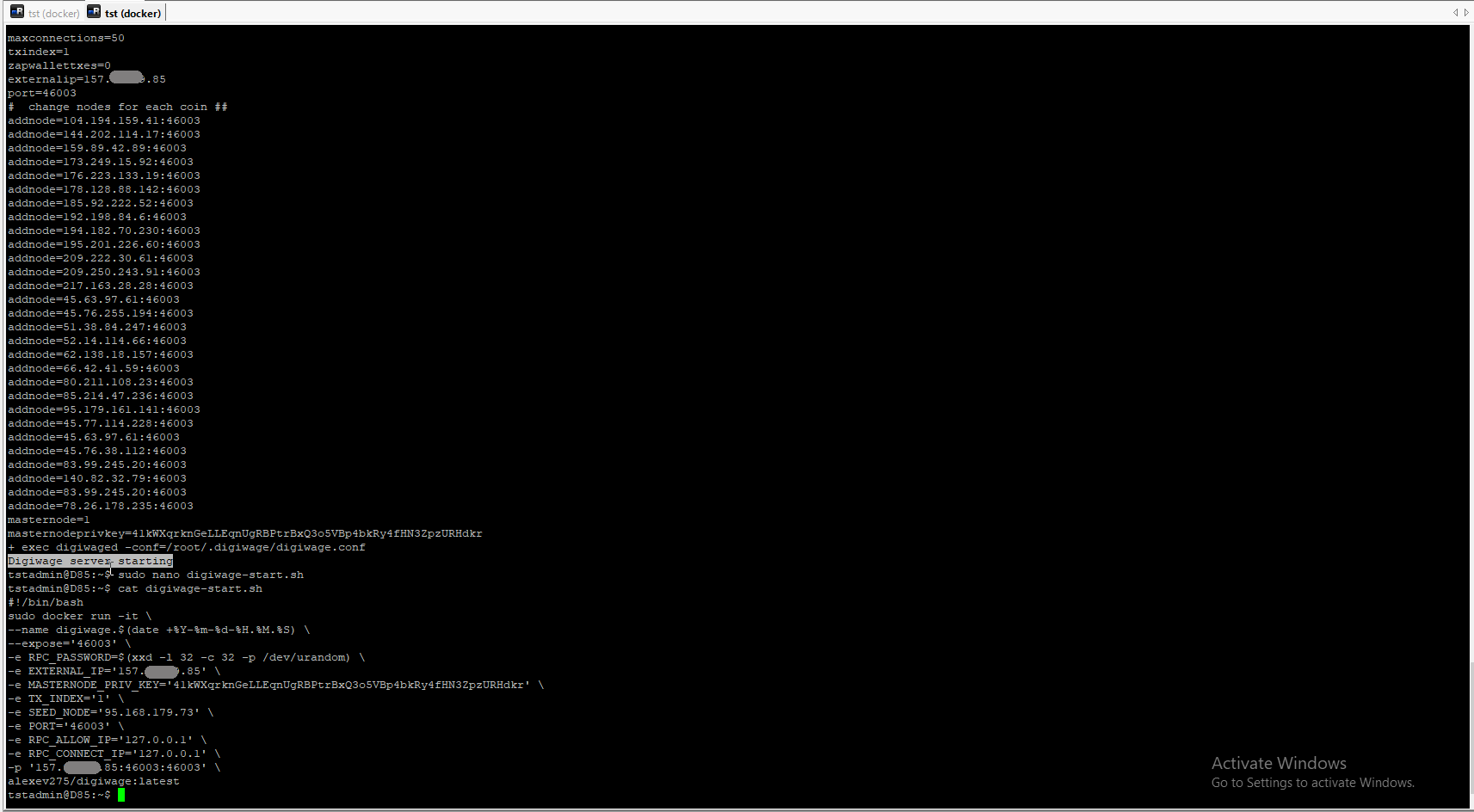

9. How to start this dockers
docker run -it --name fffff429-4ef2-4f3c-a6f5-35253453456b --expose=26969 -e RPC_PASSWORD=rpcpassword123456 -e EXTERNAL_IP=268.119.134.247 -e MASTERNODE_PRIV_KEY=7eK9Fviqs5VM1ZYeaLgsT8p5cBiBbQvzMygfwWpWSFRjSUDRfH4 -e TX_INDEX=1 -e SEED_NODE='95.168.179.73' -e CONTAINER_ID=fffff429-4ef2-4f3c-a6f5-35253453456b -p 268.119.134.247:12455:12455 genesisx
or
docker run -d -it --name fffff429-4ef2-4f3c-a6f5-35253453456b --expose=26969 -e RPC_PASSWORD=rpcpassword123456 -e EXTERNAL_IP=268.119.134.247 -e MASTERNODE_PRIV_KEY=7eK9Fviqs5VM1ZYeaLgsT8p5cBiBbQvzMygfwWpWSFRjSUDRfH4 -e TX_INDEX=1 -e SEED_NODE='95.168.179.73' -e CONTAINER_ID=fffff429-4ef2-4f3c-a6f5-35253453456b -p 268.119.134.247:12455:12455 10.1.12.1:5000/genesisx
or even more usable
sudo docker run -it \ --name digiwage.$(date +%Y-%m-%d-%H.%M.%S) \ --expose='46003' \ -e RPC_PASSWORD=$(xxd -l 32 -c 32 -p /dev/urandom) \ -e EXTERNAL_IP='157.XX.XX.85' \ -e MASTERNODE_PRIV_KEY='123456qrknGeLLEqnUgRBPtrBxQ3o5VBp4bkRy4fHN3ZpzURHdkr' \ -e TX_INDEX='1' \ -e SEED_NODE='95.168.179.73' \ -e PORT='46003' \ -e RPC_ALLOW_IP='127.0.0.1' \ -e RPC_CONNECT_IP='127.0.0.1' \ -p '157.XX.XX.85:46003:46003' \ alexev275/digiwage:latest

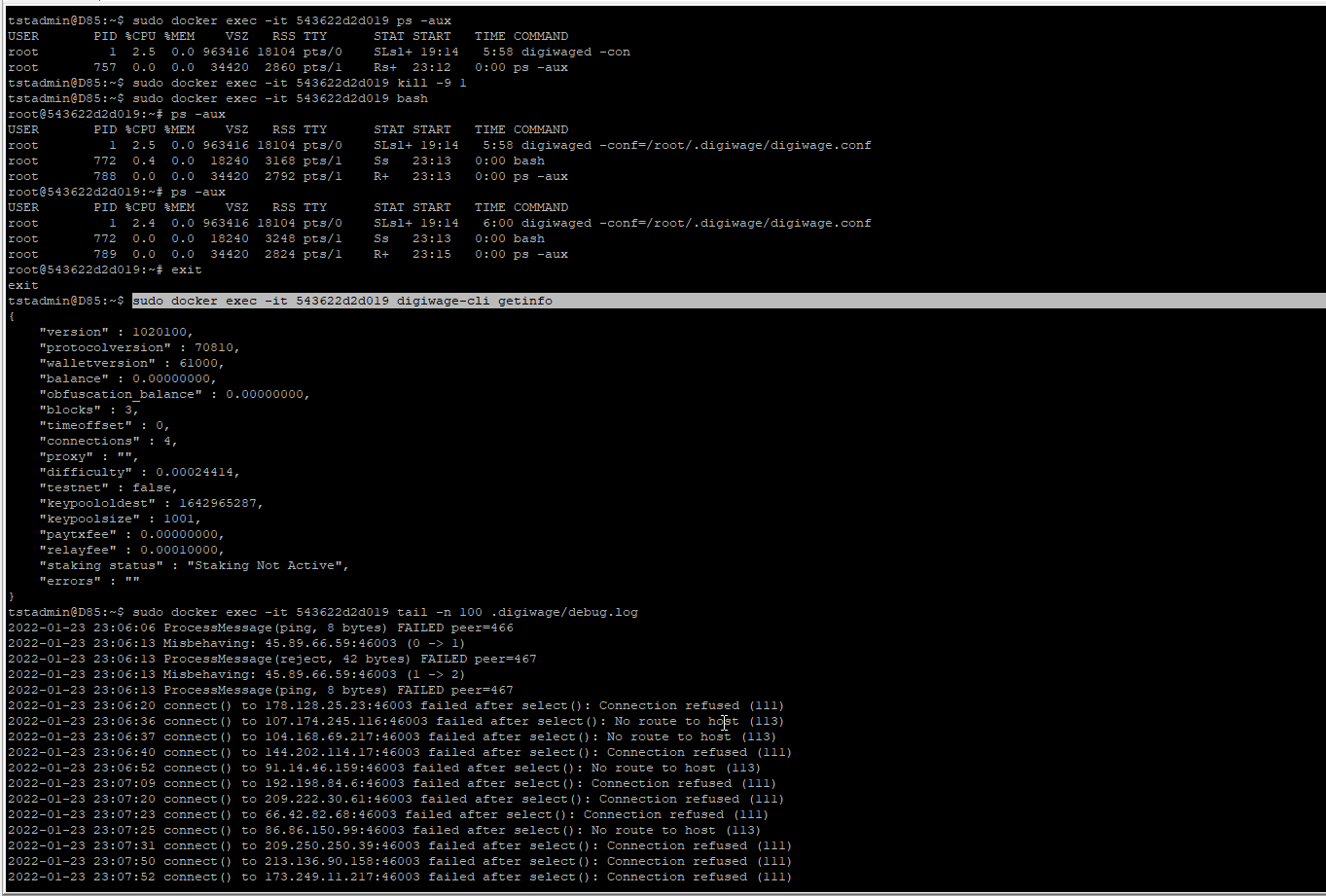

10. How to connect to working container and check masternode.
There are two way to connect (1) to bash command interpreter or (2) with one bash command.

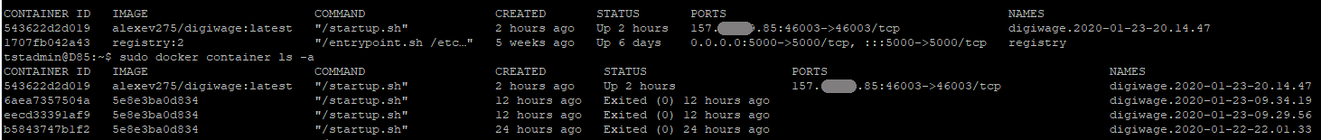

# sudo docker ps # sudo docker exec -it 543622d2d019 bash # sudo docker exec -it 543622d2d019 digiwage-cli getinfo # sudo docker exec -it 543622d2d019 tail -n 100 .digiwage/debug.log
11. Allow exposed port in docker host.
# sudo ufw status verbose # sudo ufw allow 46003/udp # sudo ufw allow 46003/tcp
