Adapter in VB.NET
Match interfaces of different classes
ReturnConvert the interface of a class into another interface clients expect. Adapter lets classes work together that couldn't otherwise because of incompatible interfaces. These incompatible classes may come from different libraries or frameworks.
![](/ProgramTheory/Adapter.gif)

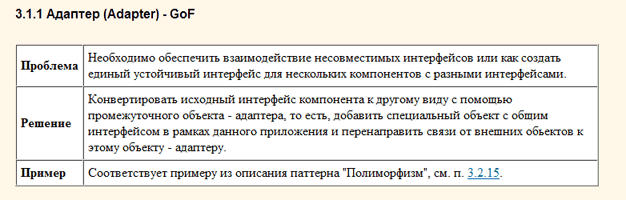

![](/ProgramTheory/Adapter1.gif)
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' Adapter Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/Adapter.htm
3: Class MainApp
4: ' Entry point into console application.
5: Private Shared Sub Main()
6: ' Create adapter and place a request
7: Dim target As Target = New Adapter()
8: target.Request()
9: ' Wait for user
10: Console.ReadKey()
11: End Sub
12: End Class
13:
14: ' The 'Target' class
15: Class Target
16: Public Overridable Sub Request()
17: Console.WriteLine("Called Target Request()")
18: End Sub
19: End Class
20:
21: ' The 'Adapter' class
22: Class Adapter
23: Inherits Target
24: Private _adaptee As New Adaptee()
25: Public Overrides Sub Request()
26: ' Possibly do some other work
27: ' and then call SpecificRequest
28: _adaptee.SpecificRequest()
29: End Sub
30: End Class
31:
32: ' The 'Adaptee' class
33: Class Adaptee
34: Public Sub SpecificRequest()
35: Console.WriteLine("Called SpecificRequest()")
36: End Sub
37: End Class
![](/ProgramTheory/Adapter2.gif)
