The new version of Visual Studio introduces a number of enhancements focused on improving the experience and performance when working with Web technologies. Visual Studio Editors for CSS, JavaScript and HTML have been completely revamped to include many of the most in-demand code aids, such as IntelliSense and automatic indentation. Regarding performance, bundling and minification are now integrated as built-in features to easily reduce page load time.
Visual Studio enables you to work with the latest website technologies. You can use cross-browser CSS3 Snippets to make sure your site works regardless of the client platform while also taking advantage of the new HTML5 elements and features.
Writing and profiling JavaScript code should be easier with this Visual Studio version. IntelliSense lists, integrated XML documentation and navigation features are now available for JavaScript code. You now have the JavaScript catalog at your fingertips. Additionally, you can check ECMAScript5 compliance with your scripts and detect syntax errors at an early stage.
Last but not least, this Visual Studio version implements built-in bundling and minification. Your script files and style sheets will be packed and compressed so that the site performs faster.
This lab walks you through the enhancements and new features previously described by applying minor changes to a sample Web application provided in the Source folder.
Web developers should be familiar with many of the difficulties related to CSS editing. One of the biggest issues of CSS styling is cross-browser compatibility. It often happens that, after applying styles to your site, you notice that it looks different if you open it in another browser or device. Therefore, you may spend a considerable time on fixing those visual issues to realize that, when you finally make it work in one browser, it is broken in the others.
Visual Studio now includes features that help developers access, work and organize CSS style sheets effectively. Throughout this exercise, you will meet the new features for an effective organization and edition, as well as the CSS3 Code Snippets for cross-browser compatibility.
#### Task 1 - New Editor Features
In this task, you will discover the new features of the CSS Editor. This new editor will help you increase your productivity by taking advantage of the new smart indentation, the improved code comments and the enhanced IntelliSense list.
Start Visual Studio and open the WhatsNewASPNET.sln solution located in the **Source* folder of this lab.
In Solution Explorer, open the Site.css file located under the Styles folder. Make sure the Text Editor tools are visible on the toolbar. To do that, select the View | Toolbars menu option, and check the Text Editor options. You will notice that, since this new version, the Comment button ( ) and the Uncomment button ( ) are also enabled for the CSS editor.
Enabling Editor and CSS ToolsEnabling Editor and CSS Tools
Scroll the code and select any CSS class definition. Click the Comment ( ) button to comment the selected lines. Then, click the Uncomment ( ) button to undo the changes.
Click the Collapse ( ) and Expand ( ) buttons located on the left margin of the text. Notice that you can now hide the styles you don’t use to have a cleaner view.
Collapsing CSS classesCollapsing CSS classes
Make sure that the smart indentation feature is enabled. Select the Tools | Options menu option, and then select the Text Editor | CSS | Formatting page in the left pane of the screen. Check the Hierarchical indentation option.
Locate the main class definition (.main) and append a style to the div elements. You will notice that the code aligns automatically, helping users to find the parent classes at a glance.
Hierarchical alignment in CSSHierarchical alignment in CSS
Inside .main div class, locate the cursor at the end of border: 0px; and press Enter to display the IntelliSense list. Start typing top and notice how the list is filtered as you type. The list will display the elements that contain top at any part of the word (In prior versions of Visual Studio, the list is filtered by the items that begin with the term).
IntelliSense enhancements in CSS
IntelliSense enhancements in CSS
#### Task 2 - The Color Picker
In this task, you will discover the new CSS Color Picker integrated into Visual Studio IntelliSense.
In Site.css, locate the header class definition (.header) and place the cursor next to background-color attribute, between the “:” and “#” characters on that line of code .
Locating the cursorLocating the cursor
Delete the colon (:) and write it again to display the color picker. Notice that the first colors you will see are the most frequent colors of your site. If you click the white color, its HTML color code (#fff) will replace the current color code in the stylesheet.
Color pickerColor picker
Press the Expand ( ) button on the color picker to display the color gradient, and then drag the gradient cursor to select a different color. After that, click the Eyedropper button and select any color from the screen. Notice that background color value changes dynamically while you move the cursor.
Color picker gradientColor picker gradient
In the Opacity slider, move the selector to the center of the bar to reduce the opacity. Notice that background-color value now changes its scale to RGBA.
Color picker Opacity
Color picker Opacity
[!NOTE] The RGBA (Red, Green, Blue, Alpha) color definition in CSS3 enables you to define the color opacity value for a single item. Unlike opacity - a similar CSS attribute - RGBA colors are also compatible with the latest browsers.
#### Task 3 - CSS Compatible Code Snippets
In this task, you will learn how to use cross-browser compatible CSS3 snippets in order to implement some features in your website.

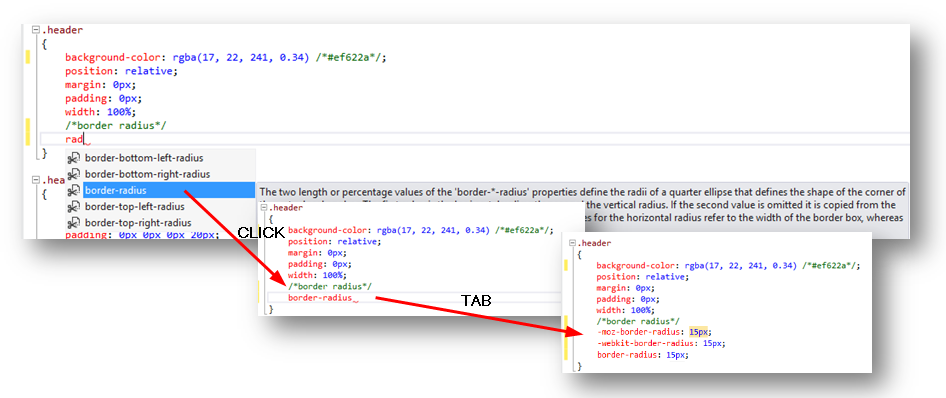

In the Site.css file, locate the header CSS class definition (.header) and place the cursor below the /*border radius*/ placeholder to add a new snippet. Press Enter to display the IntelliSense list and type radius to filter the list. Select the border-radius option from the list with a double click, and then press the TAB key to insert the snippet. Then, type a radius size in pixels and press Enter. For instance, type 15px.
The CSS3 attributes added by the snippet will render rounded borders in most HTML5 compliance browsers, including Mozilla and WebKit-based browsers.
Using a border-radius snippetUsing a border-radius snippet
Apply the same border snippets in the page style (.page).
Press F5 to run the solution. Notice that each page now has rounded borders.
Rounded cornersRounded corners
Close the browser and return to Visual Studio.
Open the Custom.css file located under the Styles folder and place the cursor inside div.images ul li img class definition.
Press enter to display the IntelliSense list, type box-shadow and press the TAB key twice to insert the default shadow code snippet inside the class definition. Set the shadow values to 10px 10px 5px #888. Then, type border-radius and insert the code snippet. Type 15px to set radius size and press ENTER.
Rounded corners with shadow
Rounded corners with shadow
[!NOTE] At this moment, the shadow attribute is inserted with the corresponding prefix (moz, webkit, o) to support Mozilla and Webkit (Chrome, Safari, Konkeror) browsers.
Create a new class div.images ul li img:hover below the div.images ul li img class definition and place the cursor inside the brackets .
Type transform and press the TAB key twice in order to insert the transform snippet. Then, enter rotate(-15deg) to change the rotation angle value when images are hovered.
Press F5 to run the solution and browse to the CSS3 page. Notice that the images have rounded corners and box shadows. Hover the mouse over the images and watch them rotate.
Transform snippet rotating an image
Transform snippet rotating an image
[!NOTE] If you are using Internet Explorer 10 and cannot see the shadows, make sure the document mode is set to IE10 standards. Press F12 to open Internet Explorer developer tools and click Document Mode to change to IE10 standards.
about-us
### Exercise 2: What’s New in the HTML Editor
Visual Studio has an improved HTML editor. Some of the enhancements included in this version are smart indentation in HTML documents, HTML5 snippets, HTML start and end tag matching, and HTML validation. Throughout this exercise, you will see how these changes improve your fluency when working in the website markup.
Like the CSS editor, the HTML editor was also improved. Most of these improvements are small ones that make the Web developer’s life easier. Things like more code snippets for HTML5, smart indentation, matching start and end tags when editing and validation targeting the HTML document DOCTYPE are some of these improvements.
#### Task 1 - Improved DOCTYPE Validation
The HTML editor now has the ability to check the DOCTYPE of your page, even though the definition might be in the master page. Depending on the DOCTYPE of your page, the HTML editor will validate with the correct set of rules and will filter the IntelliSense list considering the DOCTYPE elements.
In this task, you will change the DOCTYPE of a page to see how the HTML editor behavior changes accordingly.
If not already opened, start Visual Studio and open the WhatsNewASPNET.sln solution located in the **Source* folder of this lab.
Open the Site.Master page.
Notice the Target Schema for Validation Toolbar. The way the HTML editor behaves (Validation, IntelliSense, etc.) will properly change to fit the Doctype selected.
Use Doctype in HTML Source Editing toolbarUse Doctype in HTML Source Editing toolbar
Change the Target Schema to HTML 4.01.
Changing Doctype in HTML Source Editing toolbarChanging Doctype in HTML Source Editing toolbar
Place the cursor under the body element, and start typing the name of an HTML5 element (for example, video). Notice that the element is not available in the IntelliSense list.
HTML5 elements not listedHTML5 elements not listed
Undo the changes to the Target Schema for Validation Toolbar, picking DOCTYPE: XHTML5 from the dropdown list.
Use Doctype in HTML Source Editing toolbarReset Doctype in HTML Source Editing toolbar
Place the cursor under the body element and start typing an HTML5 element again (For example, like video). Notice that the HTML5 elements are now available in the IntelliSense list.
HTML5 elements being listed
HTML5 elements being listed
#### Task 2 - Start/End Tags Automatic Update
Visual Studio now updates the HTML opening or closing tags of the element that you are editing to match each other. This new feature will improve your productivity when editing HTML tags.
On the Default.aspx page, add an H3 element with a title (for example, Visual Studio 2012 Rocks!).
Notice that the end tag automatically updates. You can also modify the end tag to see that the start tag updates accordingly too.
Automatic update of the end tag
Automatic update of the end tag
#### Task 3 - New HTML5 Code Snippets
Visual Studio now includes several HTML5 code snippets. In this task, you will use some of these snippets.
Add a new folder named audio to the root of the web site folder. Open Windows Explorer and copy any audio file into the audio folder of the WhatsNewASPNET.sln solution.

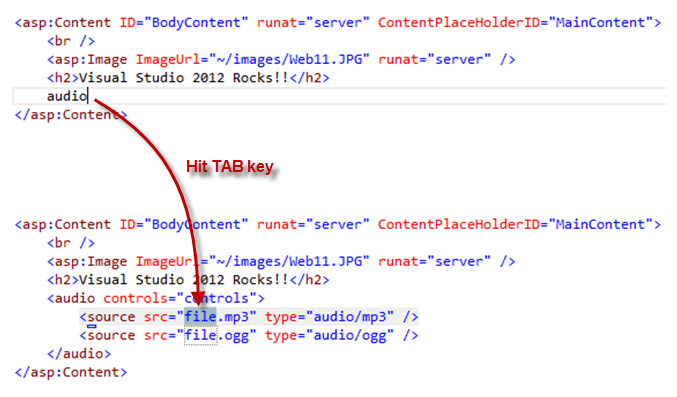

In the Default.aspx page, locate the cursor under the Web11 Rocks!! Header. Type audio and press the TAB key.
The new HTML editor includes code snippets for HTML5 content. Remember to use the proper DOCTYPE definition to enable the HTML5 snippets.
[!NOTE] You will need to add the audio file to the solution.
Press F5 to run the site and play the audio.
Running the audio control
Running the audio control
[!NOTE] You can also try more snippets included in Visual Studio, such as video, figure, etc.
Now, try to insert a control in some part of the page. For example, try to insert a GridView control, but instead of typing <Gri, start typing <GV. Notice that the IntelliSense list shows the asp:GridView control.
IntelliSense in the HTML Editor now provides title-casing search, as well as partial matching (retrieving all elements that contains the term).
Inserting a GridView with IntelliSense lists
Inserting a GridView with IntelliSense lists

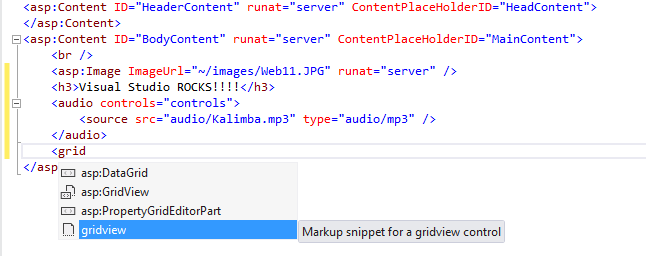

If you type <grid you will get all the items that match the term, but Visual Studio will suggest the gridview control:
Inserting a GridView with IntelliSense lists and partial matching
Inserting a GridView with IntelliSense lists and partial matching
#### Task 4 - HTML Editor Smart Tags
Another improvement in the HTML Editor is the Smart Tags feature. Smart tags make it easy to perform common or repetitive development tasks on a per-control basis. This feature was already available in the HTML Designer, but not in the HTML Editor.
Open Site.Master and locate the asp:Menu element. Place the cursor on the start tag and notice that the small glyph displayed at the bottom of the element - click it to open the smart tasks menu. Notice that you have quick access to some tasks related to the Menu control.
Smart tasks for the Menu control
Smart tasks for the Menu control
#### Task 5 - Smart Indentation
One of the best practices in HTML is indenting the nested elements to keep the code readable. In Visual Studio 2012, you will notice that the editor automatically indents the elements while you are writing the code.
[!NOTE] In previous version of Visual Studio, smart indentation was available in the XML editor but not in the HTML editor.
Make sure that the Indenting configuration on the HTML Editor is set to Smart Indentation. To do that, select the Tools | Options menu option and then select the Text Editor | HTML | Tabs page in the left pane of the screen. Select the Smart indentation option.
HTML Editor settingsHTML Editor settings
On the Default.aspx page, remove all the content under the audio element.
Place the cursor at the end of the opening audio element and hit ENTER.
Notice that the new position of cursor has an additional indentation level.
Smart indentation in the HTML EditorSmart indentation in the HTML Editor
Restore the audio tag with the content you have removed, or close Default.aspx without saving the changes.
#### Task 6 - Extract to User Control
The Refactoring tools included in Visual Studio, such as extracting a portion of code to a function, are great features that facilitate the improvement and the refactoring the existing code. The counterpart for ASP.NET pages would be the extraction of HTML code to a User Control. Doing it manually would involve several steps, like creating a new User Control, moving the code section to the User Control, registering a tag prefix for the User Control, and, finally, instantiating the User Control on the pages. Now, the new Extract to User Control tool automatically performs all those steps for you.
In this task, you will use the new Extract to User Control contextual operation to generate a new user control from the selected code.
On the Default.aspx page, select the H2 and audio elements.

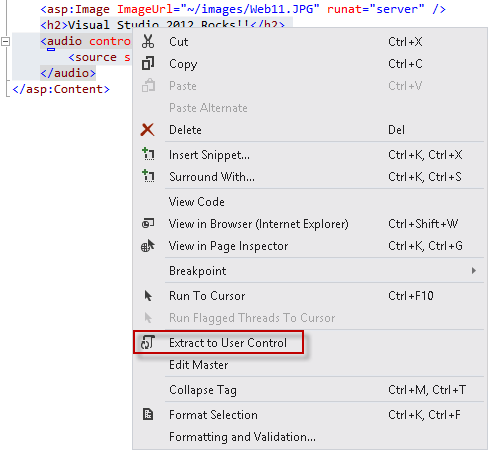

Right click and select Extract to User Control.
Extract to User Control menu optionExtract to User Control menu option
Type a name for the new user control. For instance, Jukebox.ascx, and then click OK.
Saving the extracted user controlSaving the extracted user control
Notice that the selected code was extracted to a user control and the original location of the selected code was replaced with an instance of the new user control.
Page automatically updated to use the new user controlPage automatically updated to use the new user control
Press F5 to run the page and verify that the control works.
### Exercise 3: What’s New in the JavaScript Editor
Writing or editing JavaScript code is not an easy task, especially when your application starts to grow in size and you find yourself dealing with long files and hundreds of functions. Script developers usually have to do some extra work to maintain code legibility and navigate across files. With the inclusion of JavaScript libraries like jQuery, script navigation has become a challenge itself because of the code length.
Visual Studio has renewed the JavaScript editor with the promise to make the code mode accessible and organized. Many Visual Studio features that already existed in C# or VB editors are now implemented in the JavaScript editor: Go To Definition, automatic indentation, documentation and validation when you are writing. With the renewed IntelliSense list you will have the JavaScript function catalog at your fingertips.
In this exercise, you will learn some of the new features and improvements of JavaScript editor. You will browse sample files and discover each of the new characteristics that will make your JavaScript programming more efficient within Visual Studio 2012.
#### Task 1 - JavaScript Editor New Features
This task will introduce you to some of the new JavaScript editor features, which focus on organizing your code and bringing a better user experience.
If not already opened, start Visual Studio and open the WhatsNewASPNET.sln solution located in the **Source* folder of this lab.
Press F5 to run the application, then click the JavaScript link in the navigation bar. Refresh the page several times and check how the counter increments.
Page counterPage counter
Close the browser and go back to Visual Studio.
Open the JavaScript.aspx page and locate the <script> block (shown below).
The following code uses HTML5 local storage to store a pageLoadCount variable that stores the number of times the page has been visited by the current user. Local Storage is a client-side key-value database introduced with the HTML5 standard. The data is saved on the local machine, inside the user’s browser.
[!NOTE] Ensure the DOCTYPE is set to XHTML5 before proceeding with the next steps.
Edit the code and notice that IntelliSense for JavaScript includes HTML5 features, like local storage, and their inner methods.
HTML5 JavaScript features in JavaScriptHTML5 JavaScript features in JavaScript
Click any opening bracket ({) from the scripting code and notice that the brackets are highlighted.
Brackets are highlightedBrackets are highlighted
Uncomment the function testAutoAlign() (select the three lines and you can use CTRL + K; CTRL + U) and locate the cursor inside the function code. Press enter to append a second line. Notice that the code is now aligned and auto-indented.
JavaScript code is auto aligned
JavaScript code is auto aligned
#### Task 2 - Validating JavaScript
In this task, you will discover the new JavaScript validation for the ECMAScript5 standard. This feature will help you to write compliant JavaScript code, while preventing scripting issues before site deployment.
[!NOTE] Visual Studio 2010 implemented ECMAStript3 compliance, while Visual Studio 2012 provides ECMAScript5 compliance.
Open ECMA5script5.js located under the **Scripts* project folder. You will now test validation for ECMAScript5 standard.
You can check out the " use strict " direction in the first line of the file, which enables ECMAScript5 strict mode. This mode consists in a subset of the language that clarifies ambiguities from the past edition, and adds some new features, such as getters and setters, library support for JSON, and more complete reflection on object properties.
Open the Error List if not already opened (View menu | Error List). Notice the function declaration is underlined. This is because in ECMA5 standard functions cannot be nested inside language structures. In the error list below you will see the warning details.
Comment out the “use strict” direction and notice that errors disappear, but the warnings remain.
In the last line of the file, write any string like “test” (include the quotation marks to indicate it is as string). Write a period next to the string to display the IntelliSense list, and select the trim option.
In ECMAScript5 standard, string values and variables also have string methods defined, like trim, uppercase, search and replace.
IntelliSense list in JavaScript
IntelliSense list in JavaScript
#### Task 3 - XML Documentation for JavaScript
In this task, you will explore Visual Studio features for XML documentation in JavaScript. You will see the JavaScript IntelliSense list now shows the XML documentation of each function. Additionally, you will discover the navigation feature in JavaScript.
Open XMLDoc.js file located in Scripts/custom project folder. This file contains XML documentation on each of the JavaScript functions.
JavaScript XML documentation integrated to IntelliSenseJavaScript XML documentation integrated to IntelliSense
Below add function in XMLDoc.js file, create a new function named test.
In the test function, call the multiply function that receives two parameters. Notice the tooltip box is showing the multiply function documentation.
XML documentation for JavaScript functionsXML documentation for JavaScript functions
Complete the function call statement and type a dot to open the IntelliSense list on the returned value. Notice that Visual Studio is detecting the return value in the documentation, treating the value as a number.
XML documentation for return typesXML documentation for return types
Now, insert a call to add function. Notice that the JavaScript editor now supports function overloads. When you write a function name, you will be able to select any of the available overloads specified in the documentation.
XML documentation for overloadsXML documentation for overloads
Open GotoDefinition.js file and locate the $().html() function call. Locate the cursor on html.
Press F12 and navigate to the definition. Notice you can now access and browse your JavaScript code without using the Find tool.
Locate the cursor on the jQuery instruction prior to the signature block at the bottom of the code file. Press F12. You will navigate to the jQuery library file. Notice you can also navigate across the jQuery files using F12.
Navigating to jQuery definitions
Navigating to jQuery definitions
[!NOTE] Make sure that GotoDefinition.js has no syntax errors before saving the file.
### Exercise 4: Bundling and Minification
How many times do your websites include more than one JavaScript or CSS file? This is a very common scenario where bundling and minification can help to reduce the file size and make the site perform faster. The new bundling feature in ASP.NET 4.5 packs a set of JS or CSS files into a single element, and reduces its size by minifying the content ( i.e. removing not required blank spaces, removing comments, reducing identifiers ).
Bundling and minification in ASP.NET 4.5 is performed at runtime, so that the process can identify the user agent (for example IE, Mozilla, etc), and thus, improve the compression by targeting the user browser (for instance, removing stuff that is Mozilla specific when the request comes from IE).
In this exercise, you will learn how to enable and use the different types of bundling and minification in ASP.NET 4.5.
#### Task 1 - Installing the Bundling and Minification Package from NuGet
If not already opened, start Visual Studio and open the WhatsNewASPNET.sln solution located in the **Source* folder of this lab.
Open the NuGet Package Manager Console. To do this, use the menu View | Other Windows | Package Manager Console.
Opening the package manager file:///C:/Users/User/AppData/Local/Temp/Marker3744//media/44462/Multiple-Stylesheets-and-JavaScript-files-in-the-application.pngconsoleOpening the package manager console
In the Package Manager Console, type Install-Package Microsoft.Web.Optimization and press ENTER.
#### Task 2 - Default Bundles
The simplest way to use bundling and minification is to enable the default bundles. This method uses conventions to let you reference the bundled and minified version for the JS and CSS files in a folder.
In this task, you will learn how to enable and reference the bundled and minified JS and CSS files and view the resulting output.
If not already opened, start Visual Studio and open the WhatsNewASPNET.sln solution located in the **Source* folder of this lab.
In the Solution Explorer, expand the Styles, Scripts* and Scripts* folders.
Notice that the application is using more than one CSS and JS file.
Multiple Stylesheets and JavaScript files in the applicationMultiple Stylesheets and JavaScript files in the application
Open the Global.asax.cs file.
Notice that the new Microsoft.Web.Optimization namespace is commented out at the beginning of the file. Uncomment the using directive to include the bundling and minification features.
In this method, uncomment the EnableDefaultBundles call as shown in the snippet below. This enables us to reference a bundled collection of CSS files in a folder by using the path to that folder, plus the “CSS” or the “JS” suffix.
[!NOTE] This code is for demo purposes. Ideally, you will reference the bundles in the Site.Master file. In this sample code, you will find that some of the bundled files are also being referenced by the Site.Master file, making this last reference redundant.
Notice that the links are using the bundling conventions in the href attribute to get all the CSS or JS files from the Styles and Scriptsfolder respectively.
You can use the path Scripts/custom/JS as shown below to bundle and minify all the JS files inside a Scripts/custom folder. This is the default behavior with the default bundles.
Notice that the original CSS file contains indented code, blank spaces and comments that enlarge the file. (Also the JavaScript file contains blank spaces and comments).
One of the original CSS files in the Scripts folderOne of the original CSS files in the Scripts folder
Press F5 to run the application and navigate to the Optimization page.
Click on the CSS Bundle link to download and open the file.
Check out the minified bundled file. You will notice that all the blank spaces, comments and indentation characters have been removed, generating a smaller file.
Bundled CSS filesBundled CSS files
Now click the JS Bundle link to open the JavaScript bundled file. You can safely disregard the explorer warning. Notice the JavaScript files under the custom folder are also bundled and minified.
Bundled JavaScript files
Bundled JavaScript files
Enabling compression for CSS or JS files was much more complicated in previous ASP.NET version. Now, as you have seen, you just need to add one line in the Global.asax file to enable bundling, and then reference the bundled files from your site.
#### Task 3 - Static Bundles
The static bundle approach allows you to customize the set of files to bundle, the reference and the minification method that will be used.
In this task, you will configure a static bundle to define a specific set of files to bundle and minify.
Close the browser.
Open the Global.asax.cs file and locate the Application_Start method.
Uncomment the static bundle code as shown in the code below.
You are defining a static bundle that will be referenced with the “~/StaticBundle” virtual path and use JsMinify for minification of all the specified files with the AddFile method. Finally, you are adding the static bundle to the BundleTable and enabling it.
Notice that the files are not located in the same place; this is another advantage over the default bundling.
18: // Bundles all .coffee files in folders such as "script" when "coffee" is appended to it: http://localhost:54716/scripts/coffee
19: // DynamicFolderBundle fb = new DynamicFolderBundle("coffee", typeof(CoffeeMinify), "*.coffee");
20: // BundleTable.Bundles.Add(fb);
21: }
Open the Optimization.aspx file.
Notice that the link to Static JS Bundle is using the path you have declared when you configured the static bundle in the Global.asax.cs file: /StaticBundle.
Press F5 to run the application, and then navigate to the Optimization page.
Click on the Static JS Bundle link to open the file.
Notice that the minified bundled JavaScript file is the output for all the JavaScript files configured in the static bundle file under the path “/StaticBundle”.
In this task, you will learn how to configure dynamic folder bundles. The power of dynamic bundling is that you can include static JavaScript, as well as other files in languages that compiles into JavaScript, and thus, require some processing before the bundling is executed.
In this example, you will learn how to use the DynamicFolderBundle class to create a dynamic bundle for files written in CofeeScript. CofeeScript is a programming language that compiles into JavaScript and provides a simpler syntax for writing JavaScript code, enhancing JavaScript’s brevity and readability.
Open the Global.asax.cs file and locate the Application_Start method.
Uncomment the dynamic bundle code as shown in the code below.
You are defining a dynamic folder bundle that will use the CoffeeMinify custom minification processor that will only apply to the files with the “.coffee” extension (CoffeeScript files). Notice that you can use a search pattern to select the files to bundle within a folder, like ‘*.coffee’.
4: // Bundles all .js files in folders such as "scripts" if URL pointed to it: http://localhost:54716/scripts/custom/js
5: BundleTable.Bundles.EnableDefaultBundles();
6:
7: // Static bundle.
8: // Access on url http://localhosthost:54716/StaticBundle
9: ...
10:
11: // Dynamic bundle
12: // Bundles all .coffee files in folders such as "script" when "coffee" is appended to it:
13: // http://localhost:54716/scripts/coffee
14: DynamicFolderBundle fb = new DynamicFolderBundle("coffee", typeof(CoffeeMinify), "*.coffee");
15: BundleTable.Bundles.Add(fb);
16: }
Open the NuGet Package Manager Console. To do this, use the menu View | Other Windows | Package Manager Console.
In the Package Manager Console, type Install-Package CoffeeSharp and press ENTER.
Click the Show All Files button in the Solution Explorer window
Showing all filesShowing all files
Right click the CoffeeMinify.cs file in the Solution Explorer and select Include in Project
Include the CoffeeMinify.cs file in the projectInclude the CoffeeMinify.cs file in the project
Open the CoffeeMinify.cs file.
This class inherits from JsMinify to minify the JavaScript output resulting from the CoffeeScript code compilation. It calls the CoffeeScript compiler to generate the JavaScript code first, and then it sends it to the JsMinify.Process method to minify the resulting code.
Open the Script1.coffee and Script2.coffee files from the Scripts/bundle folder.
These files will include the CoffeScript code to be compiled while performing the bundling with the CoffeeMinify class.
For simplicity purposes, the CoffeeScript files provided are only including CoffeeScript sample code. The comments are excluded by the JsMinify process.
CoffeeScript files
CoffeeScript files
[!NOTE] CofeeScript provides a simpler syntax for writing JavaScript code, enhancing JavaScript’s brevity and readability, as well as adding other features like array comprehension and pattern matching.
Open the Optimization.aspx file and locate the bundle links.
Notice that the link to Dynamic JS Bundle is referencing the Scripts/bundle folder by using the /Coffee suffix you configured for the dynamic folder bundle.
Press F5 to run the application, and then navigate to the Optimization page.
Click on the Dynamic JS Bundle link to open the generated file.
Notice that the content that was included in this bundle only contains .coffee files. You can also see that the CoffeeScript code was compiled to JavaScript and the commented-out lines has been removed.
This lab helps you to understand what New in ASP.NET and Web Development in Visual Studio 2012 is and how to take advantage of the variety of enhancements in Visual Studio 2012.
By completing this Hands-On Lab, you have learnt how to use the new features and improvements in Visual Studio 2012 Editors for CSS, JavaScript and HTML. In addition, you have learnt how Visual Studio 2012 implements built-in bundling and minification.
## Appendix A: Installing Visual Studio Express 2012 for Web
You can install Microsoft Visual Studio Express 2012 for Web or another “Express” version using the Microsoft Web Platform Installer. The following instructions guide you through the steps required to install Visual studio Express 2012 for Web using Microsoft Web Platform Installer.
Click on Install Now. If you do not have Web Platform Installer you will be redirected to download and install it first.
Once Web Platform Installer is open, click Install to start the setup.
Install Visual Studio ExpressInstall Visual Studio Express

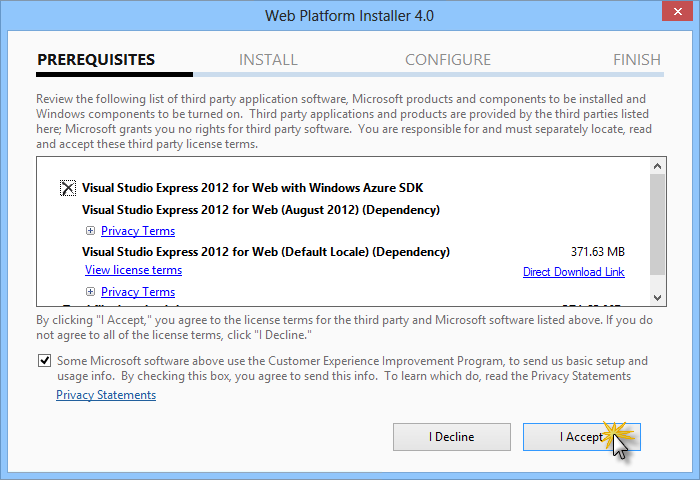

Read all the products’ licenses and terms and click I Accept to continue.
Accepting the license termsAccepting the license terms
Wait until the downloading and installation process completes.
Installation progressInstallation progress
When the installation completes, click Finish.
Installation completedInstallation completed
Click Exit to close Web Platform Installer.
To open Visual Studio Express for Web, go to the Start screen and start writing “VS Express”, then click on the VS Express for Web tile.
VS Express for Web tile
VS Express for Web tile
## Appendix B: Publishing an ASP.NET MVC 4 Application using Web Deploy
This appendix will show you how to create a new web site from the Windows Azure Management Portal and publish the application you obtained by following the lab, taking advantage of the Web Deploy publishing feature provided by Windows Azure.
#### Task 1 - Creating a New Web Site from the Windows Azure Portal
[!NOTE] With Windows Azure you can host 10 ASP.NET Web Sites for free and then scale as your traffic grows. You can sign up here.
Log on to Windows Azure portalLog on to Windows Azure Management Portal
Click New on the command bar.
Creating a new Web SiteCreating a new Web Site
Click Compute | Web Site. Then select Quick Create option. Provide an available URL for the new web site and click Create Web Site.
[!NOTE] A Windows Azure Web Site is the host for a web application running in the cloud that you can control and manage. The Quick Create option allows you to deploy a completed web application to the Windows Azure Web Site from outside the portal. It does not include steps for setting up a database.
Creating a new Web Site using Quick CreateCreating a new Web Site using Quick Create
Wait until the new Web Site is created.
Once the Web Site is created click the link under the URL column. Check that the new Web Site is working.

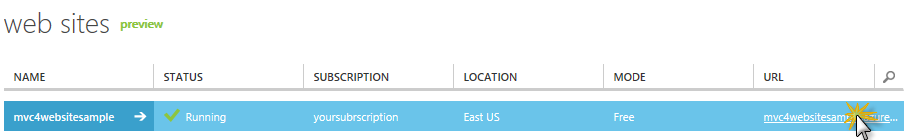

Browsing to the new web site
Browsing to the new web site
Web site runningWeb site running
Go back to the portal and click the name of the web site under the Name column to display the management pages.
Opening the web site management pagesOpening the Web Site management pages
In the Dashboard page, under the quick glance section, click the Download publish profile link.
[!NOTE] The publish profile contains all of the information required to publish a web application to a Windows Azure website for each enabled publication method. The publish profile contains the URLs, user credentials and database strings required to connect to and authenticate against each of the endpoints for which a publication method is enabled. Microsoft WebMatrix 2, Microsoft Visual Studio Express for Web and Microsoft Visual Studio 2012 support reading publish profiles to automate configuration of these programs for publishing web applications to Windows Azure websites.
Downloading the web site publish profileDownloading the Web Site publish profile
Download the publish profile file to a known location. Further in this exercise you will see how to use this file to publish a web application to a Windows Azure Web Sites from Visual Studio.
Saving the publish profile file
Saving the publish profile file
#### Task 2 - Configuring the Database Server
If your application makes use of SQL Server databases you will need to create a SQL Database server. If you want to deploy a simple application that does not use SQL Server you might skip this task.
You will need a SQL Database server for storing the application database. You can view the SQL Database servers from your subscription in the Windows Azure Management portal at Sql Databases | Servers | Server’s Dashboard. If you do not have a server created, you can create one using the Add button on the command bar. Take note of the server name and URL, administrator login name and password, as you will use them in the next tasks. Do not create the database yet, as it will be created in a later stage.
SQL Database Server DashboardSQL Database Server Dashboard
In the next task you will test the database connection from Visual Studio, for that reason you need to include your local IP address in the server’s list of Allowed IP Addresses. To do that, click Configure, select the IP address from Current Client IP Address and paste it on the Start IP Address and End IP Address text boxes. Enter a name for the rule and click the button.
Adding Client IP AddressAdding Client IP Address
Once the Client IP Address is added to the allowed IP addresses list, click on Save to confirm the changes.
Confirm Changes
Confirm Changes
#### Task 3 - Publishing an ASP.NET MVC 4 Application using Web Deploy
Go back to the ASP.NET MVC 4 solution. In the Solution Explorer, right-click the web site project and select Publish.
Publishing the ApplicationPublishing the web site
Import the publish profile you saved in the first task.
Importing the publish profileImporting publish profile
Click Validate Connection. Once Validation is complete click Next.
[!NOTE] Validation is complete once you see a green checkmark appear next to the Validate Connection button.
Validating connectionValidating connection
In the Settings page, under the Databases section, click the button next to your database connection’s textbox (i.e. DefaultConnection).

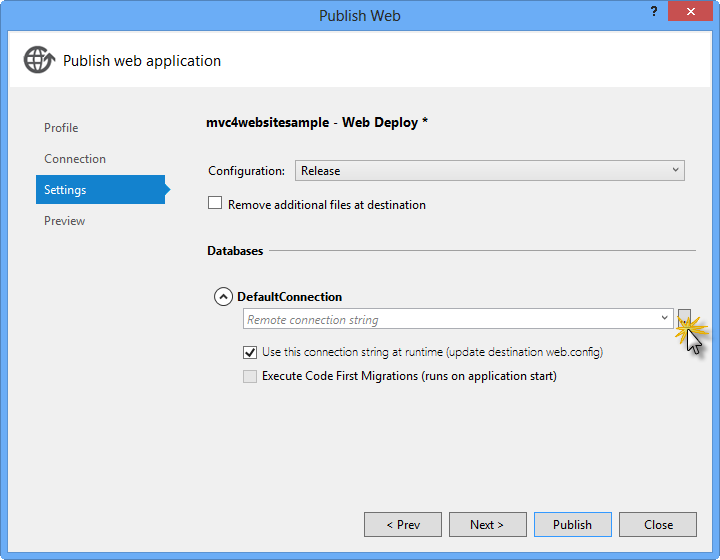

Web deploy configurationWeb deploy configuration
Configure the database connection as follows:
In the Server name type your SQL Database server URL using the tcp: prefix.
In User name type your server administrator login name.
In Password type your server administrator login password.

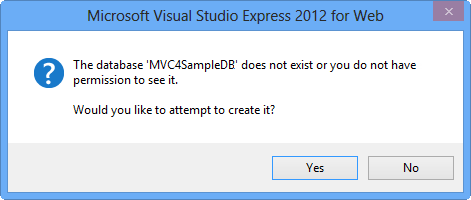

Type a new database name, for example: MVC4SampleDB.
) and the Uncomment button (
) are also enabled for the CSS editor.
) button to comment the selected lines. Then, click the Uncomment (
) button to undo the changes.
) and Expand (
) buttons located on the left margin of the text. Notice that you can now hide the styles you don’t use to have a cleaner view.
) button on the color picker to display the color gradient, and then drag the gradient cursor to select a different color. After that, click the Eyedropper button and select any color from the screen. Notice that background color value changes dynamically while you move the cursor.
button.
)
