Implementing Optimistic Concurrency (VB)

by Scott Mitchell

Download Sample App or Download PDF

For a web application that allows multiple users to edit data, there is the risk that two users may be editing the same data at the same time. In this tutorial we’ll implement optimistic concurrency control to handle this risk.

Introduction

For web applications that only allow users to view data, or for those that include only a single user who can modify data, there’s no threat of two concurrent users accidentally overwriting one another’s changes. For web applications that allow multiple users to update or delete data, however, there’s the potential for one user’s modifications to clash with another concurrent user’s. Without any concurrency policy in place, when two users are simultaneously editing a single record, the user who commits her changes last will override the changes made by the first.

For example, imagine that two users, Jisun and Sam, were both visiting a page in our application that allowed visitors to update and delete the products through a GridView control. Both click the Edit button in the GridView around the same time. Jisun changes the product name to “Chai Tea” and clicks the Update button. The net result is an UPDATE statement that is sent to the database, which sets all of the product’s updateable fields (even though Jisun only updated one field, ProductName). At this point in time, the database has the values “Chai Tea,” the category Beverages, the supplier Exotic Liquids, and so on for this particular product. However, the GridView on Sam’s screen still shows the product name in the editable GridView row as “Chai”. A few seconds after Jisun’s changes have been committed, Sam updates the category to Condiments and clicks Update. This results in an UPDATE statement sent to the database that sets the product name to “Chai,” the CategoryID to the corresponding Beverages category ID, and so on. Jisun’s changes to the product name have been overwritten. Figure 1 graphically depicts this series of events.

When Two Users Simultaneously Update a Record There s Potential for One User ’s Changes to Overwrite the Other ’s

Figure 1: When Two Users Simultaneously Update a Record There s Potential for One User ’s Changes to Overwrite the Other ’s (Click to view full-size image)

Similarly, when two users are visiting a page, one user might be in the midst of updating a record when it is deleted by another user. Or, between when a user loads a page and when they click the Delete button, another user may have modified the contents of that record.

There are three concurrency control strategies available:

All of our tutorials thus far have used the default concurrency resolution strategy - namely, we’ve let the last write win. In this tutorial we’ll examine how to implement optimistic concurrency control.

[!NOTE] We won’t look at pessimistic concurrency examples in this tutorial series. Pessimistic concurrency is rarely used because such locks, if not properly relinquished, can prevent other users from updating data. For example, if a user locks a record for editing and then leaves for the day before unlocking it, no other user will be able to update that record until the original user returns and completes his update. Therefore, in situations where pessimistic concurrency is used, there’s typically a timeout that, if reached, cancels the lock. Ticket sales websites, which lock a particular seating location for short period while the user completes the order process, is an example of pessimistic concurrency control.

Step 1: Looking at How Optimistic Concurrency is Implemented

Optimistic concurrency control works by ensuring that the record being updated or deleted has the same values as it did when the updating or deleting process started. For example, when clicking the Edit button in an editable GridView, the record’s values are read from the database and displayed in TextBoxes and other Web controls. These original values are saved by the GridView. Later, after the user makes her changes and clicks the Update button, the original values plus the new values are sent to the Business Logic Layer, and then down to the Data Access Layer. The Data Access Layer must issue a SQL statement that will only update the record if the original values that the user started editing are identical to the values still in the database. Figure 2 depicts this sequence of events.

For the Update or Delete to Succeed, the Original Values Must Be Equal to the Current Database Values

Figure 2: For the Update or Delete to Succeed, the Original Values Must Be Equal to the Current Database Values (Click to view full-size image)

There are various approaches to implementing optimistic concurrency (see Peter A. Bromberg’s Optmistic Concurrency Updating Logic for a brief look at a number of options). The ADO.NET Typed DataSet provides one implementation that can be configured with just the tick of a checkbox. Enabling optimistic concurrency for a TableAdapter in the Typed DataSet augments the TableAdapter’s UPDATE and DELETE statements to include a comparison of all of the original values in the WHERE clause. The following UPDATE statement, for example, updates the name and price of a product only if the current database values are equal to the values that were originally retrieved when updating the record in the GridView. The @ProductName and @UnitPrice parameters contain the new values entered by the user, whereas @original_ProductName and @original_UnitPrice contain the values that were originally loaded into the GridView when the Edit button was clicked:

[!code-sqlMain]

   1:  UPDATE Products SET
   2:      ProductName = @ProductName,
   3:      UnitPrice = @UnitPrice
   4:  WHERE
   5:      ProductID = @original_ProductID AND
   6:      ProductName = @original_ProductName AND
   7:      UnitPrice = @original_UnitPrice

[!NOTE] This UPDATE statement has been simplified for readability. In practice, the UnitPrice check in the WHERE clause would be more involved since UnitPrice can contain NULL s and checking if NULL = NULL always returns False (instead you must use IS NULL).

In addition to using a different underlying UPDATE statement, configuring a TableAdapter to use optimistic concurrency also modifies the signature of its DB direct methods. Recall from our first tutorial, Creating a Data Access Layer, that DB direct methods were those that accepts a list of scalar values as input parameters (rather than a strongly-typed DataRow or DataTable instance). When using optimistic concurrency, the DB direct Update() and Delete() methods include input parameters for the original values as well. Moreover, the code in the BLL for using the batch update pattern (the Update() method overloads that accept DataRows and DataTables rather than scalar values) must be changed as well.

Rather than extend our existing DAL’s TableAdapters to use optimistic concurrency (which would necessitate changing the BLL to accommodate), let’s instead create a new Typed DataSet named NorthwindOptimisticConcurrency, to which we’ll add a Products TableAdapter that uses optimistic concurrency. Following that, we’ll create a ProductsOptimisticConcurrencyBLL Business Logic Layer class that has the appropriate modifications to support the optimistic concurrency DAL. Once this groundwork has been laid, we’ll be ready to create the ASP.NET page.

Step 2: Creating a Data Access Layer That Supports Optimistic Concurrency

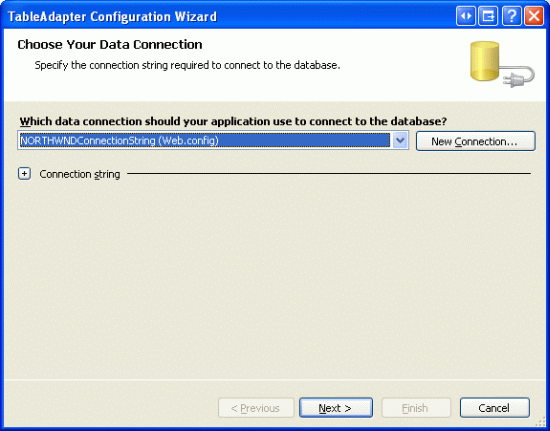

To create a new Typed DataSet, right-click on the DAL folder within the App_Code folder and add a new DataSet named NorthwindOptimisticConcurrency. As we saw in the first tutorial, doing so will add a new TableAdapter to the Typed DataSet, automatically launching the TableAdapter Configuration Wizard. In the first screen, we’re prompted to specify the database to connect to - connect to the same Northwind database using the NORTHWNDConnectionString setting from Web.config.

Connect to the Same Northwind Database

Figure 3: Connect to the Same Northwind Database (Click to view full-size image)

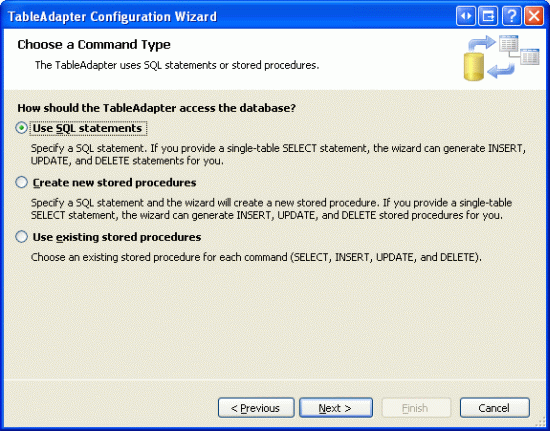

Next, we are prompted as to how to query the data: through an ad-hoc SQL statement, a new stored procedure, or an existing stored procedure. Since we used ad-hoc SQL queries in our original DAL, use this option here as well.

Specify the Data to Retrieve Using an Ad-Hoc SQL Statement

Figure 4: Specify the Data to Retrieve Using an Ad-Hoc SQL Statement (Click to view full-size image)

On the following screen, enter the SQL query to use to retrieve the product information. Let’s use the exact same SQL query used for the Products TableAdapter from our original DAL, which returns all of the Product columns along with the product’s supplier and category names:

[!code-sqlMain]

   1:  SELECT   ProductID, ProductName, SupplierID, CategoryID, QuantityPerUnit,
   2:             UnitPrice, UnitsInStock, UnitsOnOrder, ReorderLevel, Discontinued,
   3:             (SELECT CategoryName FROM Categories
   4:                WHERE Categories.CategoryID = Products.CategoryID)
   5:                as CategoryName,
   6:             (SELECT CompanyName FROM Suppliers
   7:                WHERE Suppliers.SupplierID = Products.SupplierID)
   8:                as SupplierName
   9:  FROM     Products

Use the Same SQL Query from the Products TableAdapter in the Original DAL

Figure 5: Use the Same SQL Query from the Products TableAdapter in the Original DAL (Click to view full-size image)

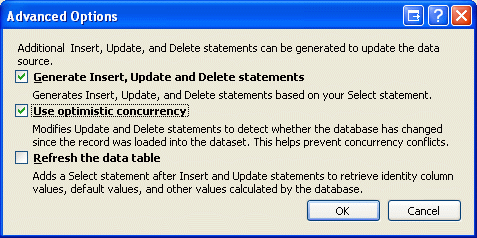

Before moving onto the next screen, click the Advanced Options button. To have this TableAdapter employ optimistic concurrency control, simply check the “Use optimistic concurrency” checkbox.

Enable Optimistic Concurrency Control by Checking the “Use optimistic concurrency” CheckBox

Figure 6: Enable Optimistic Concurrency Control by Checking the “Use optimistic concurrency” CheckBox (Click to view full-size image)

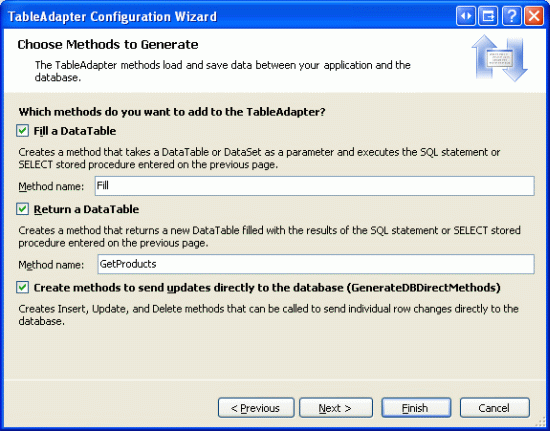

Lastly, indicate that the TableAdapter should use the data access patterns that both fill a DataTable and return a DataTable; also indicate that the DB direct methods should be created. Change the method name for the Return a DataTable pattern from GetData to GetProducts, so as to mirror the naming conventions we used in our original DAL.

Have the TableAdapter Utilize All Data Access Patterns

Figure 7: Have the TableAdapter Utilize All Data Access Patterns (Click to view full-size image)

After completing the wizard, the DataSet Designer will include a strongly-typed Products DataTable and TableAdapter. Take a moment to rename the DataTable from Products to ProductsOptimisticConcurrency, which you can do by right-clicking on the DataTable’s title bar and choosing Rename from the context menu.

A DataTable and TableAdapter Have Been Added to the Typed DataSet

Figure 8: A DataTable and TableAdapter Have Been Added to the Typed DataSet (Click to view full-size image)

To see the differences between the UPDATE and DELETE queries between the ProductsOptimisticConcurrency TableAdapter (which uses optimistic concurrency) and the Products TableAdapter (which doesn’t), click on the TableAdapter and go to the Properties window. In the DeleteCommand and UpdateCommand properties’ CommandText subproperties you can see the actual SQL syntax that is sent to the database when the DAL’s update or delete-related methods are invoked. For the ProductsOptimisticConcurrency TableAdapter the DELETE statement used is:

[!code-sqlMain]

   1:  DELETE FROM [Products]
   2:      WHERE (([ProductID] = @Original_ProductID)
   3:      AND ([ProductName] = @Original_ProductName)
   4:      AND ((@IsNull_SupplierID = 1 AND [SupplierID] IS NULL)
   5:         OR ([SupplierID] = @Original_SupplierID))
   6:      AND ((@IsNull_CategoryID = 1 AND [CategoryID] IS NULL)
   7:         OR ([CategoryID] = @Original_CategoryID))
   8:      AND ((@IsNull_QuantityPerUnit = 1 AND [QuantityPerUnit] IS NULL)
   9:         OR ([QuantityPerUnit] = @Original_QuantityPerUnit))
  10:      AND ((@IsNull_UnitPrice = 1 AND [UnitPrice] IS NULL)
  11:         OR ([UnitPrice] = @Original_UnitPrice))
  12:      AND ((@IsNull_UnitsInStock = 1 AND [UnitsInStock] IS NULL)
  13:         OR ([UnitsInStock] = @Original_UnitsInStock))
  14:      AND ((@IsNull_UnitsOnOrder = 1 AND [UnitsOnOrder] IS NULL)
  15:         OR ([UnitsOnOrder] = @Original_UnitsOnOrder))
  16:      AND ((@IsNull_ReorderLevel = 1 AND [ReorderLevel] IS NULL)
  17:         OR ([ReorderLevel] = @Original_ReorderLevel))
  18:      AND ([Discontinued] = @Original_Discontinued))

Whereas the DELETE statement for the Product TableAdapter in our original DAL is the much simpler:

[!code-sqlMain]

   1:  DELETE FROM [Products] WHERE (([ProductID] = @Original_ProductID))

As you can see, the WHERE clause in the DELETE statement for the TableAdapter that uses optimistic concurrency includes a comparison between each of the Product table’s existing column values and the original values at the time the GridView (or DetailsView or FormView) was last populated. Since all fields other than ProductID, ProductName, and Discontinued can have NULL values, additional parameters and checks are included to correctly compare NULL values in the WHERE clause.

We won’t be adding any additional DataTables to the optimistic concurrency-enabled DataSet for this tutorial, as our ASP.NET page will only provide updating and deleting product information. However, we do still need to add the GetProductByProductID(productID) method to the ProductsOptimisticConcurrency TableAdapter.

To accomplish this, right-click on the TableAdapter’s title bar (the area right above the Fill and GetProducts method names) and choose Add Query from the context menu. This will launch the TableAdapter Query Configuration Wizard. As with our TableAdapter’s initial configuration, opt to create the GetProductByProductID(productID) method using an ad-hoc SQL statement (see Figure 4). Since the GetProductByProductID(productID) method returns information about a particular product, indicate that this query is a SELECT query type that returns rows.

Mark the Query Type as a “SELECT which returns rows”

Figure 9: Mark the Query Type as a “SELECT which returns rows” (Click to view full-size image)

On the next screen we’re prompted for the SQL query to use, with the TableAdapter’s default query pre-loaded. Augment the existing query to include the clause WHERE ProductID = @ProductID, as shown in Figure 10.

Add a WHERE Clause to the Pre-Loaded Query to Return a Specific Product Record

Figure 10: Add a WHERE Clause to the Pre-Loaded Query to Return a Specific Product Record (Click to view full-size image)

Finally, change the generated method names to FillByProductID and GetProductByProductID.

Rename the Methods to FillByProductID and GetProductByProductID

Figure 11: Rename the Methods to FillByProductID and GetProductByProductID (Click to view full-size image)

With this wizard complete, the TableAdapter now contains two methods for retrieving data: GetProducts(), which returns all products; and GetProductByProductID(productID), which returns the specified product.

Step 3: Creating a Business Logic Layer for the Optimistic Concurrency-Enabled DAL

Our existing ProductsBLL class has examples of using both the batch update and DB direct patterns. The AddProduct method and UpdateProduct overloads both use the batch update pattern, passing in a ProductRow instance to the TableAdapter’s Update method. The DeleteProduct method, on the other hand, uses the DB direct pattern, calling the TableAdapter’s Delete(productID) method.

With the new ProductsOptimisticConcurrency TableAdapter, the DB direct methods now require that the original values also be passed in. For example, the Delete method now expects ten input parameters: the original ProductID, ProductName, SupplierID, CategoryID, QuantityPerUnit, UnitPrice, UnitsInStock, UnitsOnOrder, ReorderLevel, and Discontinued. It uses these additional input parameters’ values in WHERE clause of the DELETE statement sent to the database, only deleting the specified record if the database’s current values map up to the original ones.

While the method signature for the TableAdapter’s Update method used in the batch update pattern hasn’t changed, the code needed to record the original and new values has. Therefore, rather than attempt to use the optimistic concurrency-enabled DAL with our existing ProductsBLL class, let’s create a new Business Logic Layer class for working with our new DAL.

Add a class named ProductsOptimisticConcurrencyBLL to the BLL folder within the App_Code folder.

Add the ProductsOptimisticConcurrencyBLL Class to the BLL Folder
Add the ProductsOptimisticConcurrencyBLL Class to the BLL Folder

Figure 12: Add the ProductsOptimisticConcurrencyBLL Class to the BLL Folder

Next, add the following code to the ProductsOptimisticConcurrencyBLL class:

[!code-vbMain]

   1:  Imports NorthwindOptimisticConcurrencyTableAdapters
   2:  <System.ComponentModel.DataObject()> _
   3:  Public Class ProductsOptimisticConcurrencyBLL
   4:      Private _productsAdapter As ProductsOptimisticConcurrencyTableAdapter = Nothing
   5:      Protected ReadOnly Property Adapter() As ProductsOptimisticConcurrencyTableAdapter
   6:          Get
   7:              If _productsAdapter Is Nothing Then
   8:                  _productsAdapter = New ProductsOptimisticConcurrencyTableAdapter()
   9:              End If
  10:              Return _productsAdapter
  11:          End Get
  12:      End Property
  13:      <System.ComponentModel.DataObjectMethodAttribute _
  14:      (System.ComponentModel.DataObjectMethodType.Select, True)> _
  15:      Public Function GetProducts() As _
  16:          NorthwindOptimisticConcurrency.ProductsOptimisticConcurrencyDataTable
  17:          Return Adapter.GetProducts()
  18:      End Function
  19:  End Class

Note the using NorthwindOptimisticConcurrencyTableAdapters statement above the start of the class declaration. The NorthwindOptimisticConcurrencyTableAdapters namespace contains the ProductsOptimisticConcurrencyTableAdapter class, which provides the DAL’s methods. Also before the class declaration you’ll find the System.ComponentModel.DataObject attribute, which instructs Visual Studio to include this class in the ObjectDataSource wizard’s drop-down list.

The ProductsOptimisticConcurrencyBLL’s Adapter property provides quick access to an instance of the ProductsOptimisticConcurrencyTableAdapter class, and follows the pattern used in our original BLL classes (ProductsBLL, CategoriesBLL, and so on). Finally, the GetProducts() method simply calls down into the DAL’s GetProducts() method and returns a ProductsOptimisticConcurrencyDataTable object populated with a ProductsOptimisticConcurrencyRow instance for each product record in the database.

Deleting a Product Using the DB Direct Pattern with Optimistic Concurrency

When using the DB direct pattern against a DAL that uses optimistic concurrency, the methods must be passed the new and original values. For deleting, there are no new values, so only the original values need be passed in. In our BLL, then, we must accept all of the original parameters as input parameters. Let’s have the DeleteProduct method in the ProductsOptimisticConcurrencyBLL class use the DB direct method. This means that this method needs to take in all ten product data fields as input parameters, and pass these to the DAL, as shown in the following code:

[!code-vbMain]

   1:  <System.ComponentModel.DataObjectMethodAttribute _
   2:  (System.ComponentModel.DataObjectMethodType.Delete, True)> _
   3:  Public Function DeleteProduct( _
   4:      ByVal original_productID As Integer, ByVal original_productName As String, _
   5:      ByVal original_supplierID As Nullable(Of Integer), _
   6:      ByVal original_categoryID As Nullable(Of Integer), _
   7:      ByVal original_quantityPerUnit As String, _
   8:      ByVal original_unitPrice As Nullable(Of Decimal), _
   9:      ByVal original_unitsInStock As Nullable(Of Short), _
  10:      ByVal original_unitsOnOrder As Nullable(Of Short), _
  11:      ByVal original_reorderLevel As Nullable(Of Short), _
  12:      ByVal original_discontinued As Boolean) _
  13:      As Boolean
  14:      Dim rowsAffected As Integer = Adapter.Delete(
  15:                                      original_productID, _
  16:                                      original_productName, _
  17:                                      original_supplierID, _
  18:                                      original_categoryID, _
  19:                                      original_quantityPerUnit, _
  20:                                      original_unitPrice, _
  21:                                      original_unitsInStock, _
  22:                                      original_unitsOnOrder, _
  23:                                      original_reorderLevel, _
  24:                                      original_discontinued)
  25:      ' Return true if precisely one row was deleted, otherwise false
  26:      Return rowsAffected = 1
  27:  End Function

If the original values - those values that were last loaded into the GridView (or DetailsView or FormView) - differ from the values in the database when the user clicks the Delete button the WHERE clause won’t match up with any database record and no records will be affected. Hence, the TableAdapter’s Delete method will return 0 and the BLL’s DeleteProduct method will return false.

Updating a Product Using the Batch Update Pattern with Optimistic Concurrency

As noted earlier, the TableAdapter’s Update method for the batch update pattern has the same method signature regardless of whether or not optimistic concurrency is employed. Namely, the Update method expects a DataRow, an array of DataRows, a DataTable, or a Typed DataSet. There are no additional input parameters for specifying the original values. This is possible because the DataTable keeps track of the original and modified values for its DataRow(s). When the DAL issues its UPDATE statement, the @original_ColumnName parameters are populated with the DataRow’s original values, whereas the @ColumnName parameters are populated with the DataRow’s modified values.

In the ProductsBLL class (which uses our original, non-optimistic concurrency DAL), when using the batch update pattern to update product information our code performs the following sequence of events:

  1. Read the current database product information into a ProductRow instance using the TableAdapter’s GetProductByProductID(productID) method
  2. Assign the new values to the ProductRow instance from Step 1
  3. Call the TableAdapter’s Update method, passing in the ProductRow instance

This sequence of steps, however, won’t correctly support optimistic concurrency because the ProductRow populated in Step 1 is populated directly from the database, meaning that the original values used by the DataRow are those that currently exist in the database, and not those that were bound to the GridView at the start of the editing process. Instead, when using an optimistic concurrency-enabled DAL, we need to alter the UpdateProduct method overloads to use the following steps:

  1. Read the current database product information into a ProductsOptimisticConcurrencyRow instance using the TableAdapter’s GetProductByProductID(productID) method
  2. Assign the original values to the ProductsOptimisticConcurrencyRow instance from Step 1
  3. Call the ProductsOptimisticConcurrencyRow instance’s AcceptChanges() method, which instructs the DataRow that its current values are the “original” ones
  4. Assign the new values to the ProductsOptimisticConcurrencyRow instance
  5. Call the TableAdapter’s Update method, passing in the ProductsOptimisticConcurrencyRow instance

Step 1 reads in all of the current database values for the specified product record. This step is superfluous in the UpdateProduct overload that updates all of the product columns (as these values are overwritten in Step 2), but is essential for those overloads where only a subset of the column values are passed in as input parameters. Once the original values have been assigned to the ProductsOptimisticConcurrencyRow instance, the AcceptChanges() method is called, which marks the current DataRow values as the original values to be used in the @original_ColumnName parameters in the UPDATE statement. Next, the new parameter values are assigned to the ProductsOptimisticConcurrencyRow and, finally, the Update method is invoked, passing in the DataRow.

The following code shows the UpdateProduct overload that accepts all product data fields as input parameters. While not shown here, the ProductsOptimisticConcurrencyBLL class included in the download for this tutorial also contains an UpdateProduct overload that accepts just the product’s name and price as input parameters.

[!code-vbMain]

   1:  Protected Sub AssignAllProductValues( _
   2:      ByVal product As NorthwindOptimisticConcurrency.ProductsOptimisticConcurrencyRow, _
   3:      ByVal productName As String, ByVal supplierID As Nullable(Of Integer), _
   4:      ByVal categoryID As Nullable(Of Integer), ByVal quantityPerUnit As String, _
   5:      ByVal unitPrice As Nullable(Of Decimal), ByVal unitsInStock As Nullable(Of Short), _
   6:      ByVal unitsOnOrder As Nullable(Of Short), ByVal reorderLevel As Nullable(Of Short), _
   7:      ByVal discontinued As Boolean)
   8:      product.ProductName = productName
   9:      If Not supplierID.HasValue Then
  10:          product.SetSupplierIDNull()
  11:      Else
  12:          product.SupplierID = supplierID.Value
  13:      End If
  14:      If Not categoryID.HasValue Then
  15:          product.SetCategoryIDNull()
  16:      Else
  17:          product.CategoryID = categoryID.Value
  18:      End If
  19:      If quantityPerUnit Is Nothing Then
  20:          product.SetQuantityPerUnitNull()
  21:      Else
  22:          product.QuantityPerUnit = quantityPerUnit
  23:      End If
  24:      If Not unitPrice.HasValue Then
  25:          product.SetUnitPriceNull()
  26:      Else
  27:          product.UnitPrice = unitPrice.Value
  28:      End If
  29:      If Not unitsInStock.HasValue Then
  30:          product.SetUnitsInStockNull()
  31:      Else
  32:          product.UnitsInStock = unitsInStock.Value
  33:      End If
  34:      If Not unitsOnOrder.HasValue Then
  35:          product.SetUnitsOnOrderNull()
  36:      Else
  37:          product.UnitsOnOrder = unitsOnOrder.Value
  38:      End If
  39:      If Not reorderLevel.HasValue Then
  40:          product.SetReorderLevelNull()
  41:      Else
  42:          product.ReorderLevel = reorderLevel.Value
  43:      End If
  44:      product.Discontinued = discontinued
  45:  End Sub
  46:  <System.ComponentModel.DataObjectMethodAttribute( _
  47:  System.ComponentModel.DataObjectMethodType.Update, True)> _
  48:  Public Function UpdateProduct(
  49:      ByVal productName As String, ByVal supplierID As Nullable(Of Integer), _
  50:      ByVal categoryID As Nullable(Of Integer), ByVal quantityPerUnit As String, _
  51:      ByVal unitPrice As Nullable(Of Decimal), ByVal unitsInStock As Nullable(Of Short), _
  52:      ByVal unitsOnOrder As Nullable(Of Short), ByVal reorderLevel As Nullable(Of Short), _
  53:      ByVal discontinued As Boolean, ByVal productID As Integer, _
  54:      _
  55:      ByVal original_productName As String, _
  56:      ByVal original_supplierID As Nullable(Of Integer), _
  57:      ByVal original_categoryID As Nullable(Of Integer), _
  58:      ByVal original_quantityPerUnit As String, _
  59:      ByVal original_unitPrice As Nullable(Of Decimal), _
  60:      ByVal original_unitsInStock As Nullable(Of Short), _
  61:      ByVal original_unitsOnOrder As Nullable(Of Short), _
  62:      ByVal original_reorderLevel As Nullable(Of Short), _
  63:      ByVal original_discontinued As Boolean, _
  64:      ByVal original_productID As Integer) _
  65:      As Boolean
  66:      'STEP 1: Read in the current database product information
  67:      Dim products As _
  68:          NorthwindOptimisticConcurrency.ProductsOptimisticConcurrencyDataTable = _
  69:          Adapter.GetProductByProductID(original_productID)
  70:      If products.Count = 0 Then
  71:          ' no matching record found, return false
  72:          Return False
  73:      End If
  74:      Dim product As _
  75:          NorthwindOptimisticConcurrency.ProductsOptimisticConcurrencyRow = products(0)
  76:      'STEP 2: Assign the original values to the product instance
  77:      AssignAllProductValues( _
  78:          product, original_productName, original_supplierID, _
  79:          original_categoryID, original_quantityPerUnit, original_unitPrice, _
  80:          original_unitsInStock, original_unitsOnOrder, original_reorderLevel, _
  81:          original_discontinued)
  82:      'STEP 3: Accept the changes
  83:      product.AcceptChanges()
  84:      'STEP 4: Assign the new values to the product instance
  85:      AssignAllProductValues( _
  86:          product, productName, supplierID, categoryID, quantityPerUnit, unitPrice, _
  87:          unitsInStock, unitsOnOrder, reorderLevel, discontinued)
  88:      'STEP 5: Update the product record
  89:      Dim rowsAffected As Integer = Adapter.Update(product)
  90:      ' Return true if precisely one row was updated, otherwise false
  91:      Return rowsAffected = 1
  92:  End Function

Step 4: Passing the Original and New Values From the ASP.NET Page to the BLL Methods

With the DAL and BLL complete, all that remains is to create an ASP.NET page that can utilize the optimistic concurrency logic built in to the system. Specifically, the data Web control (the GridView, DetailsView, or FormView) must remember its original values and the ObjectDataSource must pass both sets of values to the Business Logic Layer. Furthermore, the ASP.NET page must be configured to gracefully handle concurrency violations.

Start by opening the OptimisticConcurrency.aspx page in the EditInsertDelete folder and adding a GridView to the Designer, setting its ID property to ProductsGrid. From the GridView’s smart tag, opt to create a new ObjectDataSource named ProductsOptimisticConcurrencyDataSource. Since we want this ObjectDataSource to use the DAL that supports optimistic concurrency, configure it to use the ProductsOptimisticConcurrencyBLL object.

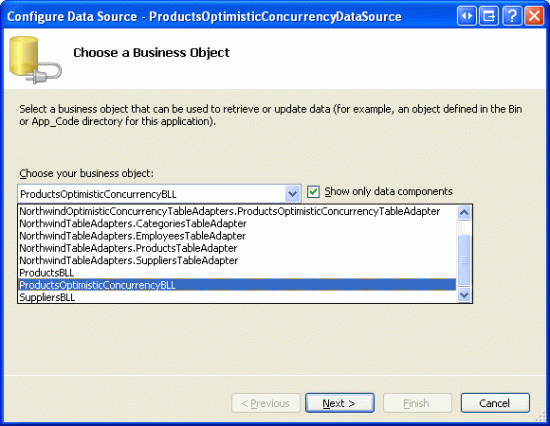

Have the ObjectDataSource Use the ProductsOptimisticConcurrencyBLL Object

Figure 13: Have the ObjectDataSource Use the ProductsOptimisticConcurrencyBLL Object (Click to view full-size image)

Choose the GetProducts, UpdateProduct, and DeleteProduct methods from drop-down lists in the wizard. For the UpdateProduct method, use the overload that accepts all of the product’s data fields.

Configuring the ObjectDataSource Control’s Properties

After completing the wizard, the ObjectDataSource’s declarative markup should look like the following:

[!code-aspxMain]

   1:  <asp:ObjectDataSource ID="ProductsOptimisticConcurrencyDataSource" runat="server"
   2:      DeleteMethod="DeleteProduct" OldValuesParameterFormatString="original_{0}"
   3:      SelectMethod="GetProducts" TypeName="ProductsOptimisticConcurrencyBLL"
   4:      UpdateMethod="UpdateProduct">
   5:      <DeleteParameters>
   6:          <asp:Parameter Name="original_productID" Type="Int32" />
   7:          <asp:Parameter Name="original_productName" Type="String" />
   8:          <asp:Parameter Name="original_supplierID" Type="Int32" />
   9:          <asp:Parameter Name="original_categoryID" Type="Int32" />
  10:          <asp:Parameter Name="original_quantityPerUnit" Type="String" />
  11:          <asp:Parameter Name="original_unitPrice" Type="Decimal" />
  12:          <asp:Parameter Name="original_unitsInStock" Type="Int16" />
  13:          <asp:Parameter Name="original_unitsOnOrder" Type="Int16" />
  14:          <asp:Parameter Name="original_reorderLevel" Type="Int16" />
  15:          <asp:Parameter Name="original_discontinued" Type="Boolean" />
  16:      </DeleteParameters>
  17:      <UpdateParameters>
  18:          <asp:Parameter Name="productName" Type="String" />
  19:          <asp:Parameter Name="supplierID" Type="Int32" />
  20:          <asp:Parameter Name="categoryID" Type="Int32" />
  21:          <asp:Parameter Name="quantityPerUnit" Type="String" />
  22:          <asp:Parameter Name="unitPrice" Type="Decimal" />
  23:          <asp:Parameter Name="unitsInStock" Type="Int16" />
  24:          <asp:Parameter Name="unitsOnOrder" Type="Int16" />
  25:          <asp:Parameter Name="reorderLevel" Type="Int16" />
  26:          <asp:Parameter Name="discontinued" Type="Boolean" />
  27:          <asp:Parameter Name="productID" Type="Int32" />
  28:          <asp:Parameter Name="original_productName" Type="String" />
  29:          <asp:Parameter Name="original_supplierID" Type="Int32" />
  30:          <asp:Parameter Name="original_categoryID" Type="Int32" />
  31:          <asp:Parameter Name="original_quantityPerUnit" Type="String" />
  32:          <asp:Parameter Name="original_unitPrice" Type="Decimal" />
  33:          <asp:Parameter Name="original_unitsInStock" Type="Int16" />
  34:          <asp:Parameter Name="original_unitsOnOrder" Type="Int16" />
  35:          <asp:Parameter Name="original_reorderLevel" Type="Int16" />
  36:          <asp:Parameter Name="original_discontinued" Type="Boolean" />
  37:          <asp:Parameter Name="original_productID" Type="Int32" />
  38:      </UpdateParameters>
  39:  </asp:ObjectDataSource>

As you can see, the DeleteParameters collection contains a Parameter instance for each of the ten input parameters in the ProductsOptimisticConcurrencyBLL class’s DeleteProduct method. Likewise, the UpdateParameters collection contains a Parameter instance for each of the input parameters in UpdateProduct.

For those previous tutorials that involved data modification, we’d remove the ObjectDataSource’s OldValuesParameterFormatString property at this point, since this property indicates that the BLL method expects the old (or original) values to be passed in as well as the new values. Furthermore, this property value indicates the input parameter names for the original values. Since we are passing in the original values into the BLL, do not remove this property.

[!NOTE] The value of the OldValuesParameterFormatString property must map to the input parameter names in the BLL that expect the original values. Since we named these parameters original_productName, original_supplierID, and so on, you can leave the OldValuesParameterFormatString property value as original_{0}. If, however, the BLL methods’ input parameters had names like old_productName, old_supplierID, and so on, you’d need to update the OldValuesParameterFormatString property to old_{0}.

There’s one final property setting that needs to be made in order for the ObjectDataSource to correctly pass the original values to the BLL methods. The ObjectDataSource has a ConflictDetection property that can be assigned to one of two values:

Take a moment to set the ConflictDetection property to CompareAllValues.

Configuring the GridView’s Properties and Fields

With the ObjectDataSource’s properties properly configured, let’s turn our attention to setting up the GridView. First, since we want the GridView to support editing and deleting, click the Enable Editing and Enable Deleting checkboxes from the GridView’s smart tag. This will add a CommandField whose ShowEditButton and ShowDeleteButton are both set to true.

When bound to the ProductsOptimisticConcurrencyDataSource ObjectDataSource, the GridView contains a field for each of the product’s data fields. While such a GridView can be edited, the user experience is anything but acceptable. The CategoryID and SupplierID BoundFields will render as TextBoxes, requiring the user to enter the appropriate category and supplier as ID numbers. There will be no formatting for the numeric fields and no validation controls to ensure that the product’s name has been supplied and that the unit price, units in stock, units on order, and reorder level values are both proper numeric values and are greater than or equal to zero.

As we discussed in the Adding Validation Controls to the Editing and Inserting Interfaces and Customizing the Data Modification Interface tutorials, the user interface can be customized by replacing the BoundFields with TemplateFields. I’ve modified this GridView and its editing interface in the following ways:

Since we’ve already examined how to accomplish these tasks in previous tutorials, I’ll just list the final declarative syntax here and leave the implementation as practice.

[!code-aspxMain]

   1:  <asp:GridView ID="ProductsGrid" runat="server" AutoGenerateColumns="False"
   2:      DataKeyNames="ProductID" DataSourceID="ProductsOptimisticConcurrencyDataSource"
   3:      OnRowUpdated="ProductsGrid_RowUpdated">
   4:      <Columns>
   5:          <asp:CommandField ShowDeleteButton="True" ShowEditButton="True" />
   6:          <asp:TemplateField HeaderText="Product" SortExpression="ProductName">
   7:              <EditItemTemplate>
   8:                  <asp:TextBox ID="EditProductName" runat="server"
   9:                      Text='<%# Bind("ProductName") %>'></asp:TextBox>
  10:                  <asp:RequiredFieldValidator ID="RequiredFieldValidator1"
  11:                      ControlToValidate="EditProductName"
  12:                      ErrorMessage="You must enter a product name."
  13:                      runat="server">*</asp:RequiredFieldValidator>
  14:              </EditItemTemplate>
  15:              <ItemTemplate>
  16:                  <asp:Label ID="Label1" runat="server"
  17:                      Text='<%# Bind("ProductName") %>'></asp:Label>
  18:              </ItemTemplate>
  19:          </asp:TemplateField>
  20:          <asp:TemplateField HeaderText="Category" SortExpression="CategoryName">
  21:              <EditItemTemplate>
  22:                  <asp:DropDownList ID="EditCategoryID" runat="server"
  23:                      DataSourceID="CategoriesDataSource" AppendDataBoundItems="true"
  24:                      DataTextField="CategoryName" DataValueField="CategoryID"
  25:                      SelectedValue='<%# Bind("CategoryID") %>'>
  26:                      <asp:ListItem Value=">(None)</asp:ListItem>
  27:                  </asp:DropDownList><asp:ObjectDataSource ID="CategoriesDataSource"
  28:                      runat="server" OldValuesParameterFormatString="original_{0}"
  29:                      SelectMethod="GetCategories" TypeName="CategoriesBLL">
  30:                  </asp:ObjectDataSource>
  31:              </EditItemTemplate>
  32:              <ItemTemplate>
  33:                  <asp:Label ID="Label2" runat="server"
  34:                      Text='<%# Bind("CategoryName") %>'></asp:Label>
  35:              </ItemTemplate>
  36:          </asp:TemplateField>
  37:          <asp:TemplateField HeaderText="Supplier" SortExpression="SupplierName">
  38:              <EditItemTemplate>
  39:                  <asp:DropDownList ID="EditSuppliersID" runat="server"
  40:                      DataSourceID="SuppliersDataSource" AppendDataBoundItems="true"
  41:                      DataTextField="CompanyName" DataValueField="SupplierID"
  42:                      SelectedValue='<%# Bind("SupplierID") %>'>
  43:                      <asp:ListItem Value=">(None)</asp:ListItem>
  44:                  </asp:DropDownList><asp:ObjectDataSource ID="SuppliersDataSource"
  45:                      runat="server" OldValuesParameterFormatString="original_{0}"
  46:                      SelectMethod="GetSuppliers" TypeName="SuppliersBLL">
  47:                  </asp:ObjectDataSource>
  48:              </EditItemTemplate>
  49:              <ItemTemplate>
  50:                  <asp:Label ID="Label3" runat="server"
  51:                      Text='<%# Bind("SupplierName") %>'></asp:Label>
  52:              </ItemTemplate>
  53:          </asp:TemplateField>
  54:          <asp:BoundField DataField="QuantityPerUnit" HeaderText="Qty/Unit"
  55:              SortExpression="QuantityPerUnit" />
  56:          <asp:TemplateField HeaderText="Price" SortExpression="UnitPrice">
  57:              <EditItemTemplate>
  58:                  <asp:TextBox ID="EditUnitPrice" runat="server"
  59:                      Text='<%# Bind("UnitPrice", "{0:N2}") %>' Columns="8" />
  60:                  <asp:CompareValidator ID="CompareValidator1" runat="server"
  61:                      ControlToValidate="EditUnitPrice"
  62:                      ErrorMessage="Unit price must be a valid currency value without the
  63:                      currency symbol and must have a value greater than or equal to zero."
  64:                      Operator="GreaterThanEqual" Type="Currency"
  65:                      ValueToCompare="0">*</asp:CompareValidator>
  66:              </EditItemTemplate>
  67:              <ItemTemplate>
  68:                  <asp:Label ID="Label4" runat="server"
  69:                      Text='<%# Bind("UnitPrice", "{0:C}") %>'></asp:Label>
  70:              </ItemTemplate>
  71:          </asp:TemplateField>
  72:          <asp:TemplateField HeaderText="Units In Stock" SortExpression="UnitsInStock">
  73:              <EditItemTemplate>
  74:                  <asp:TextBox ID="EditUnitsInStock" runat="server"
  75:                      Text='<%# Bind("UnitsInStock") %>' Columns="6"></asp:TextBox>
  76:                  <asp:CompareValidator ID="CompareValidator2" runat="server"
  77:                      ControlToValidate="EditUnitsInStock"
  78:                      ErrorMessage="Units in stock must be a valid number
  79:                          greater than or equal to zero."
  80:                      Operator="GreaterThanEqual" Type="Integer"
  81:                      ValueToCompare="0">*</asp:CompareValidator>
  82:              </EditItemTemplate>
  83:              <ItemTemplate>
  84:                  <asp:Label ID="Label5" runat="server"
  85:                      Text='<%# Bind("UnitsInStock", "{0:N0}") %>'></asp:Label>
  86:              </ItemTemplate>
  87:          </asp:TemplateField>
  88:          <asp:TemplateField HeaderText="Units On Order" SortExpression="UnitsOnOrder">
  89:              <EditItemTemplate>
  90:                  <asp:TextBox ID="EditUnitsOnOrder" runat="server"
  91:                      Text='<%# Bind("UnitsOnOrder") %>' Columns="6"></asp:TextBox>
  92:                  <asp:CompareValidator ID="CompareValidator3" runat="server"
  93:                      ControlToValidate="EditUnitsOnOrder"
  94:                      ErrorMessage="Units on order must be a valid numeric value
  95:                          greater than or equal to zero."
  96:                      Operator="GreaterThanEqual" Type="Integer"
  97:                      ValueToCompare="0">*</asp:CompareValidator>
  98:              </EditItemTemplate>
  99:              <ItemTemplate>
 100:                  <asp:Label ID="Label6" runat="server"
 101:                      Text='<%# Bind("UnitsOnOrder", "{0:N0}") %>'></asp:Label>
 102:              </ItemTemplate>
 103:          </asp:TemplateField>
 104:          <asp:TemplateField HeaderText="Reorder Level" SortExpression="ReorderLevel">
 105:              <EditItemTemplate>
 106:                  <asp:TextBox ID="EditReorderLevel" runat="server"
 107:                      Text='<%# Bind("ReorderLevel") %>' Columns="6"></asp:TextBox>
 108:                  <asp:CompareValidator ID="CompareValidator4" runat="server"
 109:                      ControlToValidate="EditReorderLevel"
 110:                      ErrorMessage="Reorder level must be a valid numeric value
 111:                          greater than or equal to zero."
 112:                      Operator="GreaterThanEqual" Type="Integer"
 113:                      ValueToCompare="0">*</asp:CompareValidator>
 114:              </EditItemTemplate>
 115:              <ItemTemplate>
 116:                  <asp:Label ID="Label7" runat="server"
 117:                      Text='<%# Bind("ReorderLevel", "{0:N0}") %>'></asp:Label>
 118:              </ItemTemplate>
 119:          </asp:TemplateField>
 120:          <asp:CheckBoxField DataField="Discontinued" HeaderText="Discontinued"
 121:              SortExpression="Discontinued" />
 122:      </Columns>
 123:  </asp:GridView>

We’re very close to having a fully-working example. However, there are a few subtleties that will creep up and cause us problems. Additionally, we still need some interface that alerts the user when a concurrency violation has occurred.

[!NOTE] In order for a data Web control to correctly pass the original values to the ObjectDataSource (which are then passed to the BLL), it’s vital that the GridView’s EnableViewState property is set to true (the default). If you disable view state, the original values are lost on postback.

Passing the Correct Original Values to the ObjectDataSource

There are a couple of problems with the way the GridView has been configured. If the ObjectDataSource’s ConflictDetection property is set to CompareAllValues (as is ours), when the ObjectDataSource’s Update() or Delete() methods are invoked by the GridView (or DetailsView or FormView), the ObjectDataSource attempts to copy the GridView’s original values into its appropriate Parameter instances. Refer back to Figure 2 for a graphical representation of this process.

Specifically, the GridView’s original values are assigned the values in the two-way databinding statements each time the data is bound to the GridView. Therefore, it’s essential that the required original values all are captured via two-way databinding and that they are provided in a convertible format.

To see why this is important, take a moment to visit our page in a browser. As expected, the GridView lists each product with an Edit and Delete button in the leftmost column.

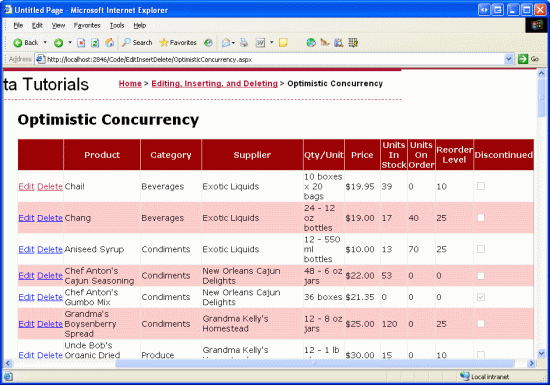

The Products are Listed in a GridView

Figure 14: The Products are Listed in a GridView (Click to view full-size image)

If you click the Delete button for any product, a FormatException is thrown.

Attempting to Delete Any Product Results in a FormatException

Figure 15: Attempting to Delete Any Product Results in a FormatException (Click to view full-size image)

The FormatException is raised when the ObjectDataSource attempts to read in the original UnitPrice value. Since the ItemTemplate has the UnitPrice formatted as a currency (<%# Bind("UnitPrice", "{0:C}") %>), it includes a currency symbol, like $19.95. The FormatException occurs as the ObjectDataSource attempts to convert this string into a decimal. To circumvent this problem, we have a number of options:

[!code-aspxMain]

   1:  <ItemTemplate>
   2:      <asp:Label ID="DummyUnitPrice" runat="server"
   3:          Text='<%# Bind("UnitPrice") %>' Visible="false"></asp:Label>
   4:      <asp:Label ID="Label4" runat="server"
   5:          Text='<%# Eval("UnitPrice", "{0:C}") %>'></asp:Label>
   6:  </ItemTemplate>

For my example I chose to go with the second approach, adding a hidden Label Web control whose Text property is two-way data bound to the unformatted UnitPrice value.

After solving this problem, try clicking the Delete button for any product again. This time you’ll get an InvalidOperationException when the ObjectDataSource attempts to invoke the BLL’s UpdateProduct method.

The ObjectDataSource Cannot Find a Method with the Input Parameters it Wants to Send

Figure 16: The ObjectDataSource Cannot Find a Method with the Input Parameters it Wants to Send (Click to view full-size image)

Looking at the exception’s message, it’s clear that the ObjectDataSource wants to invoke a BLL DeleteProduct method that includes original_CategoryName and original_SupplierName input parameters. This is because the ItemTemplate s for the CategoryID and SupplierID TemplateFields currently contain two-way Bind statements with the CategoryName and SupplierName data fields. Instead, we need to include Bind statements with the CategoryID and SupplierID data fields. To accomplish this, replace the existing Bind statements with Eval statements, and then add hidden Label controls whose Text properties are bound to the CategoryID and SupplierID data fields using two-way databinding, as shown below:

[!code-aspxMain]

   1:  <asp:TemplateField HeaderText="Category" SortExpression="CategoryName">
   2:      <EditItemTemplate>
   3:          ...
   4:      </EditItemTemplate>
   5:      <ItemTemplate>
   6:          <asp:Label ID="DummyCategoryID" runat="server"
   7:              Text='<%# Bind("CategoryID") %>' Visible="False"></asp:Label>
   8:          <asp:Label ID="Label2" runat="server"
   9:              Text='<%# Eval("CategoryName") %>'></asp:Label>
  10:      </ItemTemplate>
  11:  </asp:TemplateField>
  12:  <asp:TemplateField HeaderText="Supplier" SortExpression="SupplierName">
  13:      <EditItemTemplate>
  14:          ...
  15:      </EditItemTemplate>
  16:      <ItemTemplate>
  17:          <asp:Label ID="DummySupplierID" runat="server"
  18:              Text='<%# Bind("SupplierID") %>' Visible="False"></asp:Label>
  19:          <asp:Label ID="Label3" runat="server"
  20:              Text='<%# Eval("SupplierName") %>'></asp:Label>
  21:      </ItemTemplate>
  22:  </asp:TemplateField>

With these changes, we are now able to successfully delete and edit product information! In Step 5 we’ll look at how to verify that concurrency violations are being detected. But for now, take a few minutes to try updating and deleting a few records to ensure that updating and deleting for a single user works as expected.

Step 5: Testing the Optimistic Concurrency Support

In order to verify that concurrency violations are being detected (rather than resulting in data being blindly overwritten), we need to open two browser windows to this page. In both browser instances, click on the Edit button for Chai. Then, in just one of the browsers, change the name to “Chai Tea” and click Update. The update should succeed and return the GridView to its pre-editing state, with “Chai Tea” as the new product name.

In the other browser window instance, however, the product name TextBox still shows “Chai”. In this second browser window, update the UnitPrice to 25.00. Without optimistic concurrency support, clicking update in the second browser instance would change the product name back to “Chai”, thereby overwriting the changes made by the first browser instance. With optimistic concurrency employed, however, clicking the Update button in the second browser instance results in a DBConcurrencyException.

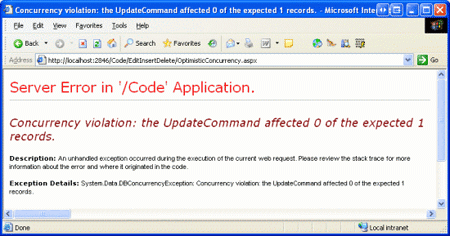

When a Concurrency Violation is Detected, a DBConcurrencyException is Thrown

Figure 17: When a Concurrency Violation is Detected, a DBConcurrencyException is Thrown (Click to view full-size image)

The DBConcurrencyException is only thrown when the DAL’s batch update pattern is utilized. The DB direct pattern does not raise an exception, it merely indicates that no rows were affected. To illustrate this, return both browser instances’ GridView to their pre-editing state. Next, in the first browser instance, click the Edit button and change the product name from “Chai Tea” back to “Chai” and click Update. In the second browser window, click the Delete button for Chai.

Upon clicking Delete, the page posts back, the GridView invokes the ObjectDataSource’s Delete() method, and the ObjectDataSource calls down into the ProductsOptimisticConcurrencyBLL class’s DeleteProduct method, passing along the original values. The original ProductName value for the second browser instance is “Chai Tea”, which doesn’t match up with the current ProductName value in the database. Therefore the DELETE statement issued to the database affects zero rows since there’s no record in the database that the WHERE clause satisfies. The DeleteProduct method returns false and the ObjectDataSource’s data is rebound to the GridView.

From the end user’s perspective, clicking on the Delete button for Chai Tea in the second browser window caused the screen to flash and, upon coming back, the product is still there, although now it’s listed as “Chai” (the product name change made by the first browser instance). If the user clicks the Delete button again, the Delete will succeed, as the GridView’s original ProductName value (“Chai”) now matches up with the value in the database.

In both of these cases, the user experience is far from ideal. We clearly don’t want to show the user the nitty-gritty details of the DBConcurrencyException exception when using the batch update pattern. And the behavior when using the DB direct pattern is somewhat confusing as the users command failed, but there was no precise indication of why.

To remedy these two issues, we can create Label Web controls on the page that provide an explanation to why an update or delete failed. For the batch update pattern, we can determine whether or not a DBConcurrencyException exception occurred in the GridView’s post-level event handler, displaying the warning label as needed. For the DB direct method, we can examine the return value of the BLL method (which is true if one row was affected, false otherwise) and display an informational message as needed.

Step 6: Adding Informational Messages and Displaying Them in the Face of a Concurrency Violation

When a concurrency violation occurs, the behavior exhibited depends on whether the DAL’s batch update or DB direct pattern was used. Our tutorial uses both patterns, with the batch update pattern being used for updating and the DB direct pattern used for deleting. To get started, let’s add two Label Web controls to our page that explain that a concurrency violation occurred when attempting to delete or update data. Set the Label control’s Visible and EnableViewState properties to false; this will cause them to be hidden on each page visit except for those particular page visits where their Visible property is programmatically set to true.

[!code-aspxMain]

   1:  <asp:Label ID="DeleteConflictMessage" runat="server" Visible="False"
   2:      EnableViewState="False" CssClass="Warning"
   3:      Text="The record you attempted to delete has been modified by another user
   4:             since you last visited this page. Your delete was cancelled to allow
   5:             you to review the other user's changes and determine if you want to
   6:             continue deleting this record." />
   7:  <asp:Label ID="UpdateConflictMessage" runat="server" Visible="False"
   8:      EnableViewState="False" CssClass="Warning"
   9:      Text="The record you attempted to update has been modified by another user
  10:             since you started the update process. Your changes have been replaced
  11:             with the current values. Please review the existing values and make
  12:             any needed changes." />

In addition to setting their Visible, EnabledViewState, and Text properties, I’ve also set the CssClass property to Warning, which causes the Label’s to be displayed in a large, red, italic, bold font. This CSS Warning class was defined and added to Styles.css back in the Examining the Events Associated with Inserting, Updating, and Deleting tutorial.

After adding these Labels, the Designer in Visual Studio should look similar to Figure 18.

Two Label Controls Have Been Added to the Page

Figure 18: Two Label Controls Have Been Added to the Page (Click to view full-size image)

With these Label Web controls in place, we’re ready to examine how to determine when a concurrency violation has occurred, at which point the appropriate Label’s Visible property can be set to true, displaying the informational message.

Handling Concurrency Violations When Updating

Let’s first look at how to handle concurrency violations when using the batch update pattern. Since such violations with the batch update pattern cause a DBConcurrencyException exception to be thrown, we need to add code to our ASP.NET page to determine whether a DBConcurrencyException exception occurred during the update process. If so, we should display a message to the user explaining that their changes were not saved because another user had modified the same data between when they started editing the record and when they clicked the Update button.

As we saw in the Handling BLL- and DAL-Level Exceptions in an ASP.NET Page tutorial, such exceptions can be detected and suppressed in the data Web control’s post-level event handlers. Therefore, we need to create an event handler for the GridView’s RowUpdated event that checks if a DBConcurrencyException exception has been thrown. This event handler is passed a reference to any exception that was raised during the updating process, as shown in the event handler code below:

[!code-vbMain]

   1:  Protected Sub ProductsGrid_RowUpdated _
   2:          (ByVal sender As Object, ByVal e As GridViewUpdatedEventArgs) _
   3:          Handles ProductsGrid.RowUpdated
   4:      If e.Exception IsNot Nothing AndAlso e.Exception.InnerException IsNot Nothing Then
   5:          If TypeOf e.Exception.InnerException Is System.Data.DBConcurrencyException Then
   6:              ' Display the warning message and note that the exception has
   7:              ' been handled...
   8:              UpdateConflictMessage.Visible = True
   9:              e.ExceptionHandled = True
  10:          End If
  11:      End If
  12:  End Sub

In the face of a DBConcurrencyException exception, this event handler displays the UpdateConflictMessage Label control and indicates that the exception has been handled. With this code in place, when a concurrency violation occurs when updating a record, the user’s changes are lost, since they would have overwritten another user’s modifications at the same time. In particular, the GridView is returned to its pre-editing state and bound to the current database data. This will update the GridView row with the other user’s changes, which were previously not visible. Additionally, the UpdateConflictMessage Label control will explain to the user what just happened. This sequence of events is detailed in Figure 19.

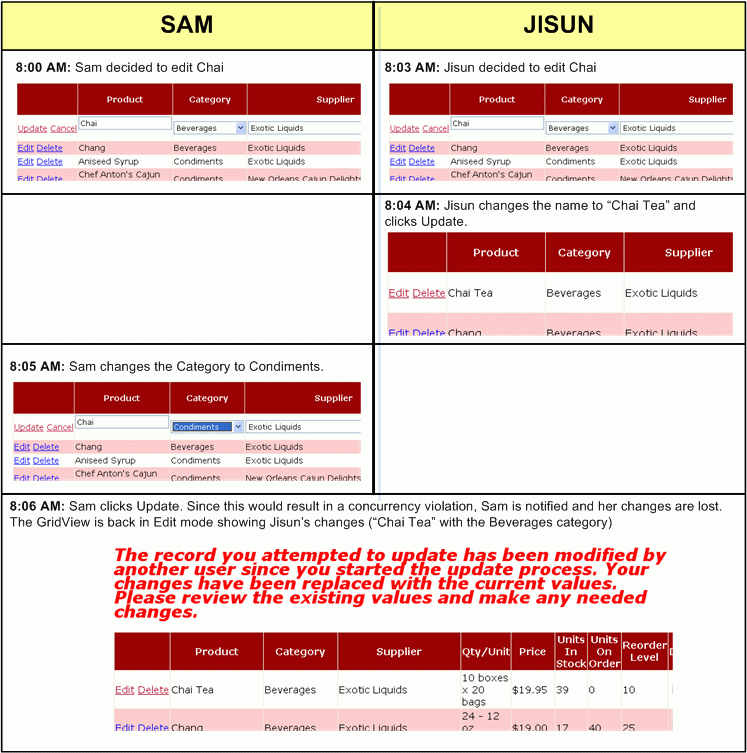

A User s Updates are Lost in the Face of a Concurrency Violation

Figure 19: A User s Updates are Lost in the Face of a Concurrency Violation (Click to view full-size image)

[!NOTE] Alternatively, rather than returning the GridView to the pre-editing state, we could leave the GridView in its editing state by setting the KeepInEditMode property of the passed-in GridViewUpdatedEventArgs object to true. If you take this approach, however, be certain to rebind the data to the GridView (by invoking its DataBind() method) so that the other user’s values are loaded into the editing interface. The code available for download with this tutorial has these two lines of code in the RowUpdated event handler commented out; simply uncomment these lines of code to have the GridView remain in edit mode after a concurrency violation.

Responding to Concurrency Violations When Deleting

With the DB direct pattern, there is no exception raised in the face of a concurrency violation. Instead, the database statement simply affects no records, as the WHERE clause does not match with any record. All of the data modification methods created in the BLL have been designed such that they return a Boolean value indicating whether or not they affected precisely one record. Therefore, to determine if a concurrency violation occurred when deleting a record, we can examine the return value of the BLL’s DeleteProduct method.

The return value for a BLL method can be examined in the ObjectDataSource’s post-level event handlers through the ReturnValue property of the ObjectDataSourceStatusEventArgs object passed into the event handler. Since we are interested in determining the return value from the DeleteProduct method, we need to create an event handler for the ObjectDataSource’s Deleted event. The ReturnValue property is of type object and can be null if an exception was raised and the method was interrupted before it could return a value. Therefore, we should first ensure that the ReturnValue property is not null and is a Boolean value. Assuming this check passes, we show the DeleteConflictMessage Label control if the ReturnValue is false. This can be accomplished by using the following code:

[!code-vbMain]

   1:  Protected Sub ProductsOptimisticConcurrencyDataSource_Deleted _
   2:          (ByVal sender As Object, ByVal e As ObjectDataSourceStatusEventArgs) _
   3:          Handles ProductsOptimisticConcurrencyDataSource.Deleted
   4:      If e.ReturnValue IsNot Nothing AndAlso TypeOf e.ReturnValue Is Boolean Then
   5:          Dim deleteReturnValue As Boolean = CType(e.ReturnValue, Boolean)
   6:          If deleteReturnValue = False Then
   7:              ' No row was deleted, display the warning message
   8:              DeleteConflictMessage.Visible = True
   9:          End If
  10:      End If
  11:  End Sub

In the face of a concurrency violation, the user’s delete request is canceled. The GridView is refreshed, showing the changes that occurred for that record between the time the user loaded the page and when he clicked the Delete button. When such a violation transpires, the DeleteConflictMessage Label is shown, explaining what just happened (see Figure 20).

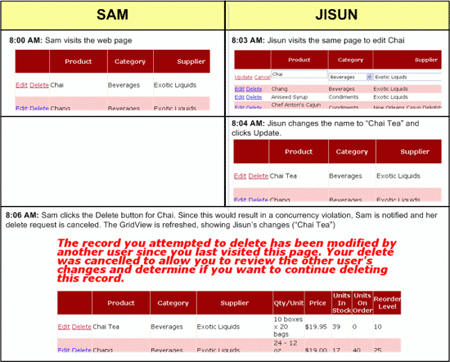

A User s Delete is Canceled in the Face of a Concurrency Violation

Figure 20: A User s Delete is Canceled in the Face of a Concurrency Violation (Click to view full-size image)

Summary

Opportunities for concurrency violations exist in every application that allows multiple, concurrent users to update or delete data. If such violations are not accounted for, when two users simultaneously update the same data whoever gets in the last write “wins,” overwriting the other user’s changes changes. Alternatively, developers can implement either optimistic or pessimistic concurrency control. Optimistic concurrency control assumes that concurrency violations are infrequent and simply disallows an update or delete command that would constitute a concurrency violation. Pessimistic concurrency control assumes that concurrency violations are frequent and simply rejecting one user’s update or delete command is not acceptable. With pessimistic concurrency control, updating a record involves locking it, thereby preventing any other users from modifying or deleting the record while it is locked.

The Typed DataSet in .NET provides functionality for supporting optimistic concurrency control. In particular, the UPDATE and DELETE statements issued to the database include all of the table’s columns, thereby ensuring that the update or delete will only occur if the record’s current data matches with the original data the user had when performing their update or delete. Once the DAL has been configured to support optimistic concurrency, the BLL methods need to be updated. Additionally, the ASP.NET page that calls down into the BLL must be configured such that the ObjectDataSource retrieves the original values from its data Web control and passes them down into the BLL.

As we saw in this tutorial, implementing optimistic concurrency control in an ASP.NET web application involves updating the DAL and BLL and adding support in the ASP.NET page. Whether or not this added work is a wise investment of your time and effort depends on your application. If you infrequently have concurrent users updating data, or the data they are updating is different from one another, then concurrency control is not a key issue. If, however, you routinely have multiple users on your site working with the same data, concurrency control can help prevent one user’s updates or deletes from unwittingly overwriting another’s.

Happy Programming!

About the Author

Scott Mitchell, author of seven ASP/ASP.NET books and founder of 4GuysFromRolla.com, has been working with Microsoft Web technologies since 1998. Scott works as an independent consultant, trainer, and writer. His latest book is Sams Teach Yourself ASP.NET 2.0 in 24 Hours. He can be reached at mitchell@4GuysFromRolla.com. or via his blog, which can be found at http://ScottOnWriting.NET.

Previous Next



Comments ( )
Link to this page: //www.vb-net.com/AspNet-DocAndSamples-2017/aspnet/web-forms/overview/data-access/editing-inserting-and-deleting-data/implementing-optimistic-concurrency-vb.htm
< THANKS ME>
