Recovering and Changing Passwords (C#)

ASP.NET includes two Web controls for assisting with recovering and changing passwords. The PasswordRecovery control enables a visitor to recover his lost password. The ChangePassword control allows the user to update his password. Like the other Login-related Web controls we’ve seen throughout this tutorial series, the PasswordRecovery and ChangePassword controls work with the Membership framework behind the scenes to reset or modify users’ passwords.

Introduction

Between the websites for my bank, utility company, phone company, email accounts, and personalized web portals, I, like most people, have dozens of different passwords to remember. With so many credentials to memorize these days, it’s not uncommon for people to forget their password. To account for this, websites that offer user accounts need to include a way for a user to recover his password. This process typically involves generating a new, random password and emailing it to the user’s email address on file. After receiving their new password most users return to the site and change their password from the randomly generated one to a more memorable one.

ASP.NET includes two Web controls for assisting with recovering and changing passwords. The PasswordRecovery control enables a visitor to recover his lost password. The ChangePassword control allows the user to update his password. Like the other Login-related Web controls we’ve seen throughout this tutorial series, the PasswordRecovery and ChangePassword controls work with the Membership framework behind the scenes to reset or modify users’ passwords.

In this tutorial we will examine using these two controls. We will also see how to programmatically change and reset a user’s password via the MembershipUser class’s ChangePassword and ResetPassword methods.

Step 1: Helping Users Recover Lost Passwords

All websites that support user accounts need to provide users with some mechanism for recovering their forgotten passwords. The good news is that implementing such functionality in ASP.NET is a breeze thanks to the PasswordRecovery Web control. The PasswordRecovery control renders an interface that prompts the user for their username and, if needed, the answer to their security question. It then emails the user their password.

[!NOTE] Because email messages are transmitted over the wire in plain-text there are security risks involved with sending a user’s password via email.

The PasswordRecovery control consists of three views:

UserName - prompts the visitor for their username. This is the initial view.
Question- displays the user’s username and security question as text, along with a TextBox for the user to enter the answer to his security question.
Success- displays a message informing the user that his password has been emailed.

The views displayed and actions performed by the PasswordRecovery control depend upon the following Membership configuration settings:

RequiresQuestionAndAnswer
EnablePasswordRetrieval
EnablePasswordReset

The Membership framework’s RequiresQuestionAndAnswer setting indicates whether users must specify a security question and answer when registering for an account. As we discussed in the Creating User Accounts tutorial, if RequiresQuestionAndAnswer is True (the default) then the CreateUserWizard’s interface includes TextBox controls for the new user’s security question and answer; if RequiresQuestionAndAnswer is False, no such information is collected. Similarly, if RequiresQuestionAndAnswer is True, then the PasswordRecovery control displays the Question view after the user has entered their username; the password is recovered only if the user enters the correct security answer. If RequiresQuestionAndAnswer is False, however, the PasswordRecovery control moves straight from the UserName view to the Success view.

After the user has provided his username - or his username and security answer, if RequiresQuestionAndAnswer is True - the PasswordRecovery emails the user his password. If the EnablePasswordRetrieval option is set to True, then the user is emailed their current password. If it is set to False and EnablePasswordReset is set to True, then the PasswordRecovery control generates a new, random password for the user, and emails this new password to them. If both EnablePasswordRetrieval and EnablePasswordReset are False, the PasswordRecovery control throws an exception.

[!NOTE] Recall that the SqlMembershipProvider stores users’ passwords in one of three formats: Clear, Hashed (the default), or Encrypted. The storage mechanism used depends on the Membership configuration settings; the demo application uses the Hashed password format. When using the Hashed password format the EnablePasswordRetrieval option must be set to False because the system cannot determine the user’s actual password from the hashed version stored in the database.

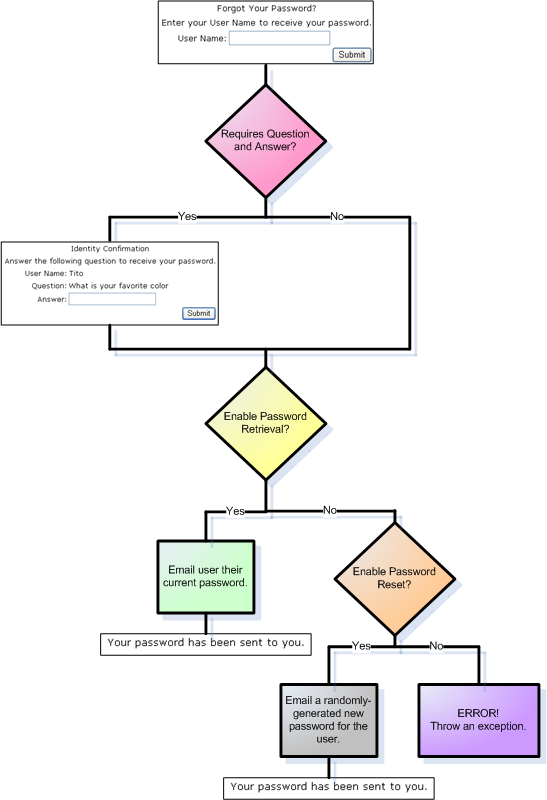

Figure 1 illustrates how the PasswordRecovery’s interface and behavior is influenced by the Membership configuration.

Figure 1: The RequiresQuestionAndAnswer, EnablePasswordRetrieval, and EnablePasswordReset Influence the PasswordRecovery control’s Appearance and Behavior (Click to view full-size image)

[!NOTE] In the Creating the Membership Schema in SQL Server tutorial we configured the Membership provider by setting RequiresQuestionAndAnswer to True, EnablePasswordRetrieval to False, and EnablePasswordReset to True.

Using the PasswordRecovery Control

Let’s look at using the PasswordRecovery control in an ASP.NET page. Open RecoverPassword.aspx and drag and drop a PasswordRecovery control from the Toolbox onto the Designer; set its ID to RecoverPwd. Like the Login and CreateUserWizard Web controls, the PasswordRecovery control’s views render a rich composite interface that includes Labels, TextBoxes, Buttons, and validation controls. You can customize the appearance of the views through the control’s style properties or by converting the views into templates. I leave this as an exercise for the interested reader.

When a user visits this page she will enter her username and click the Submit button. Because we have set the RequiresQuestionAndAnswer property to True in our Membership configuration settings, the PasswordRecovery control will then display the Question view. After the user enters her correct security answer and clicks Submit, the PasswordRecovery control will update the user’s password to a randomly-generated one, and email this password to the email address on file. All of this was possible without us having to write a single line of code!

Before you test this page, there’s one final piece of configuration to tend to: we need to specify the mail delivery settings in Web.config. The PasswordRecovery control relies on these settings for sending the email.

The mail delivery configuration is specified through the <system.net> element’s <mailSettings> element. Use the <smtp> element to indicate the delivery method and the default From address. The following markup configures mail settings to use a network SMTP server named smtp.example.com on port 25 and with username/password credentials of username and password.

[!NOTE] <system.net> is a child element of the root <configuration> element and a sibling of <system.web>. Therefore, do not put the <system.net> element within the <system.web> element; instead, put it at the same level.

[!code-xmlMain]

   1:  <configuration>

   2:   ...

   3:   <system.net>

   4:   <mailSettings>

   5:   <smtp deliveryMethod="Network" from="youraddress@example.com">

   6:   <network

   7:   host="smtp.example.com"

   8:   userName="username"

   9:   password="password"

  10:   port="25" />

  11:   </smtp>

  12:   </mailSettings>

  13:   </system.net>

  14:  </configuration>

In addition to using an SMTP server on the network, you can alternatively specify a pickup directory where email messages to be sent should be deposited.

Once you have configured the SMTP settings, visit the RecoverPassword.aspx page through a browser. First try entering a username that doesn’t exist in the user store. As Figure 2 shows, the PasswordRecovery control displays a message indicating that the user information could not be accessed. The text of the message can be customized through the control’s UserNameFailureText property.

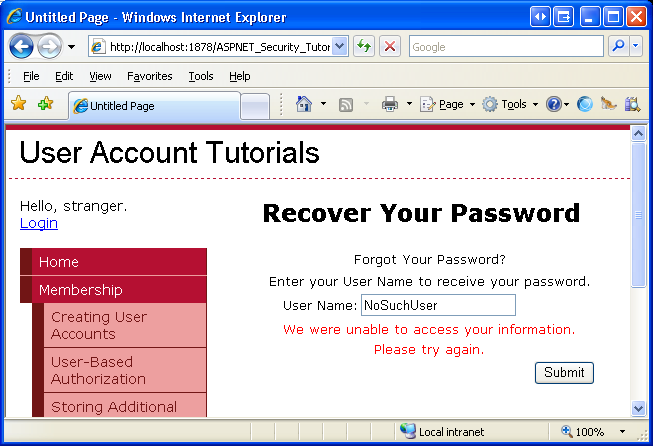

Figure 2: An Error Message is Displayed if an Invalid Username is Entered (Click to view full-size image)

Now enter a username. Use the username of an account in the system with an email address that you can access and whose security answer you know. After entering the username and clicking Submit, the PasswordRecovery control displays its Question view. As with the UserName view, if you enter an incorrect answer the PasswordRecovery control displays an error message (see Figure 3). Use the QuestionFailureText property to customize this error message.

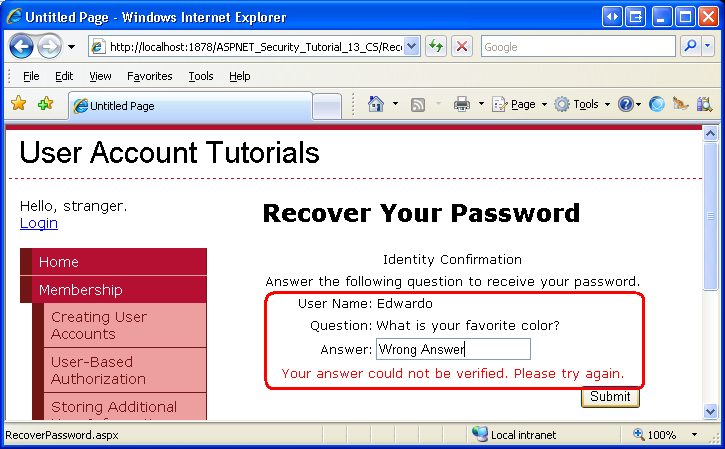

Figure 3: An Error Message is Displayed if the User Enters an Invalid Security Answer (Click to view full-size image)

Finally, enter the correct security answer and click Submit. Behind the scenes, the PasswordRecovery control generates a random password, assigns it to the user account, sends an email informing the user of their new password (see Figure 4), and then displays the Success view.

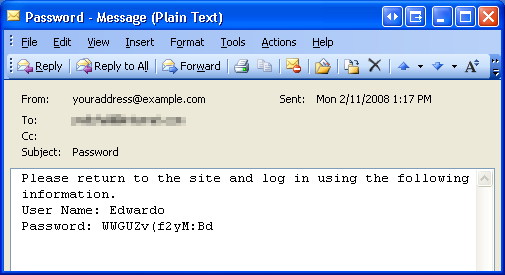

Figure 4: The User is Sent an Email with His New Password (Click to view full-size image)

Customizing the Email

The default email sent by the PasswordRecovery control is rather dull (see Figure 4). The message is sent from the account specified in the <smtp> element’s from attribute with the subject Password and the plain-text body:

Please return to the site and log in using the following information.

User Name: username

Password: password

This message can be customized programmatically through an event handler for the PasswordRecovery control’s SendingMail event, or declaratively through the MailDefinition property. Let’s explore both of these options.

The SendingMail event is fired right before the email message is sent and is our last chance to programmatically adjust the email message. When this event is raised, the event handler is passed an object of type MailMessageEventArgs, whose Message property contains a reference to the email about to be sent.

Create an event handler for the SendingMail event and add the following code, which programmatically adds webmaster@example.com to the CC list.

[!code-csharpMain]

   1:  protected void RecoverPwd_SendingMail(object sender, MailMessageEventArgs e)

   2:  {

   3:      e.Message.CC.Add("webmaster@example.com");

   4:  }

The email message can also be configured through declarative means. The PasswordRecovery’s MailDefinition property is an object of type MailDefinition. The MailDefinition class offers a host of email-related properties, including From, CC, Priority, Subject, IsBodyHtml, BodyFileName, and others. For starters, set the Subject property to something more descriptive than the one used by default ( Password ), such as Your password has been reset…

To customize the body of the email message we need to create a separate email template file that contains the body’s contents. Start by creating a new folder in the website named EmailTemplates. Next, add a new text file to this folder named PasswordRecovery.txt and add the following content:

[!code-aspxMain]

   1:  Your password has been reset, <%UserName%>!

2:

   3:  According to our records, you have requested that your password be reset. Your new

   4:  password is: <%Password%>

5:

   6:  If you have any questions or trouble logging on please contact a site administrator.

7:

   8:  Thank you!

Note the use of the placeholders <%UserName%> and <%Password%>. The PasswordRecovery control automatically replaces these two placeholders with the user’s username and recovered password prior to sending the email.

Lastly, point the MailDefinition’s BodyFileName property to the email template we just created (~/EmailTemplates/PasswordRecovery.txt).

After making these changes revisit the RecoverPassword.aspx page and enter your username and security answer. You receive should an email that looks like the one in Figure 5. Note that webmaster@example.com has been CC’d and that the subject and body have been updated.

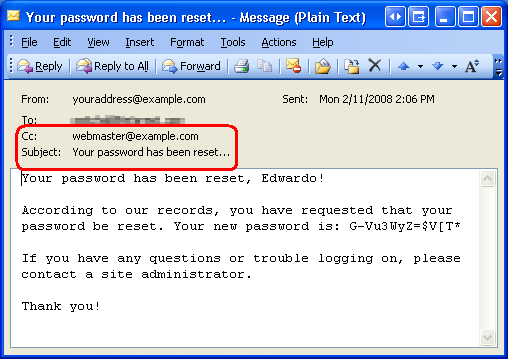

Figure 5: The Subject, Body, and CC List Have Been Updated (Click to view full-size image)

To send an HTML-formatted email set IsBodyHtml to True (the default is False) and update the email template to include HTML.

The MailDefinition property is not unique to the PasswordRecovery class. As we will see in Step 2, the ChangePassword control also offers a MailDefinition property. Moreover, the CreateUserWizard control includes such a property that you can configure to automatically send a welcome email message to new users.

[!NOTE] Currently there are no links in the left-hand navigation for reaching the RecoverPassword.aspx page. A user would only be interested in visiting this page if she was unable to successfully log on to the site. Therefore, update the Login.aspx page to include a link to the RecoverPassword.aspx page.

Programmatically Resetting a User’s Password

When resetting a user’s password the PasswordRecovery control calls the MembershipUser object’s ResetPassword method. This method has two overloads:

ResetPassword - resets a user’s password. Use this overload if RequiresQuestionAndAnswer is False.
ResetPassword(securityAnswer) - resets a user’s password only if the supplied securityAnswer is correct. Use this overload if RequiresQuestionAndAnswer is True.

Both overloads return the new, randomly-generated password.

Like with the other methods in the Membership framework, the ResetPassword method delegates to the configured provider. The SqlMembershipProvider invokes the aspnet_Membership_ResetPassword stored procedure, passing in the user’s username, the new password, and the supplied password answer, among other fields. The stored procedure ensures that the password answer matches and then updates the user’s password.

A couple of low-level implementation notes:

A locked out user cannot reset her password. However, an unapproved user may. We will discuss the locked out and approved states in more detail in the Unlocking and Approving User Accounts tutorial.
If the password answer is incorrect, the user’s failed password answer attempt count is incremented. If a specified number of invalid security answer attempts occur within a specified time window, the user is locked out.

A Word on How the Random Passwords are Generated

The randomly-generated passwords shown in the email messages in Figures 4 and 5 are created by the Membership class’s GeneratePassword method. This method accepts two integer input paramters - length and numberOfNonAlphanumericCharacters - and returns a string at least length characters long with at least numberOfNonAlphanumericCharacters number of non-alphanumeric characters. When this method is called from within the Membership classes or Login-related Web controls, the values for these two parameters are determined by the Membership configuration’s MinRequiredPasswordLength and MinRequiredNonalphanumericCharacters properties, which we set to 7 and 1, respectively.

The GeneratePassword method uses a cryptographically strong random number generator to ensure that there is no bias in what random characters are selected. Furthermore, GeneratePassword is public, meaning that you can use it directly from your ASP.NET application if you need to generate random strings or passwords.

[!NOTE] The SqlMembershipProvider class always generates a random password at least 14 characters long, so if MinRequiredPasswordLength is less than 14 then its value is ignored.

Step 2: Changing Passwords

The randomly-generated passwords are difficult to remember. Consider the password shown in Figure 4: WWGUZv(f2yM:Bd. Try committing that to memory! Needless to say, after a user is sent a randomly-generated password of this sort, she’ll want to change the password to something more memorable.

Use the ChangePassword control to create an interface for a user to change her password. Much like the PasswordRecovery control, the ChangePassword control consists of two views: Change Password and Success. The Change Password view prompts the user for their old and new passwords. Upon supplying the correct old password and a new password that meets the minimum length and non-alphanumeric character requirements, the ChangePassword control updates the user’s password and displays the Success view.

[!NOTE] The ChangePassword control modifies the user’s password by invoking the MembershipUser object’s ChangePassword method. The ChangePassword method accepts two string input parameters - oldPassword and newPassword- and updates the user’s account with the newPassword, assuming the supplied oldPassword is correct.

Open the ChangePassword.aspx page and add a ChangePassword control to the page, naming it ChangePwd. At this point, the Design view should show the Change Password view (see Figure 6). Like with the PasswordRecovery control, you can toggle between the views via the control’s Smart Tag. Furthermore, these views’ appearances are customizable through the assorted style properties or by converting them to a template.

Figure 6: Add a ChangePassword Control to the Page (Click to view full-size image)

The ChangePassword control can update the currently logged in user’s password or the password of another, specified user. As Figure 6 shows, the default Change Password view renders just three TextBox controls: one for the old password and two for the new password. This default interface is used to update the currently logged on user’s password.

To use the ChangePassword control to update another user’s password, set the control’s DisplayUserName property to True. Doing so adds a fourth TextBox to the page, prompting for the username of the user whose password to change.

Setting DisplayUserName to True is useful if you want to let a logged out user change her password without having to log in. Personally, I think there’s nothing wrong with requiring a user to login before allowing her to change her password. Therefore, leave DisplayUserName set to False (its default). In making this decision, however, we essentially are barring anonymous users from reaching this page. Update the site’s URL authorization rules so as to deny anonymous users from visiting ChangePassword.aspx. If you need to refresh your memory on the URL authorization rule syntax, refer back to the User-Based Authorization tutorial.

[!NOTE] It may seem that the DisplayUserName property is useful for allowing administrators to change other users’ passwords. However, even when DisplayUserName is set to True the correct old password must be known and entered. We will talk about techniques for allowing administrators to change users’ passwords in Step 3.

Visit the ChangePassword.aspx page through a browser and change your password. Note that an error message is displayed if you enter a new password that fails to meet the password length and non-alphanumeric character requirements specified in the Membership configuration (see Figure 7).

Figure 7: Add a ChangePassword Control to the Page (Click to view full-size image)

Upon entering the correct old password and a valid new password, the logged on user’s password is changed and the Success view displayed.

Sending a Confirmation Email

By default, the ChangePassword control does not send an email message to the user whose password was just updated. If you’d like to send an email, simply configure the control’s MailDefinition property. Let’s configure the ChangePassword control so that the user is sent an HTML-formatted email that contains their new password.

Start by creating a new file in the EmailTemplates folder named ChangePassword.htm. Add the following markup:

[!code-htmlMain]

   1:  <html>

   2:   <body>

   3:   <h2>Your Password Has Been Changed!</h2>

   4:   <p>

   5:   This email confirms that your password has been changed.

   6:   </p>

   7:   <p>

   8:   To log on to the site, use the following credentials:

   9:   </p>

  10:   <table>

  11:   <tr>

  12:   <td>

  13:   <b>Username:</b>

  14:   </td>

  15:   <td>

  16:   <%UserName%>

  17:   </td>

  18:   </tr>

  19:   <tr>

  20:   <td>

  21:   <b>Password:</b>

  22:   </td>

  23:   <td>

  24:   <%Password%>

  25:   </td>

  26:   </tr>

  27:   </table>

  28:   <p>

  29:   If you have any questions or encounter any problems logging in,

  30:   please contact a site administrator.

  31:   </p>

  32:   </body>

  33:  </html>

Next, set the ChangePassword control’s MailDefinition property’s BodyFileName, IsBodyHtml, and Subject properties to ~/EmailTemplates/ChangePassword.htm, True, and Your password has changed!, respectively.

After making these changes, revisit the page and change your password again. This time, the ChangePassword control sends a customized, HTML-formatted email to the user’s email address on file (see Figure 8).

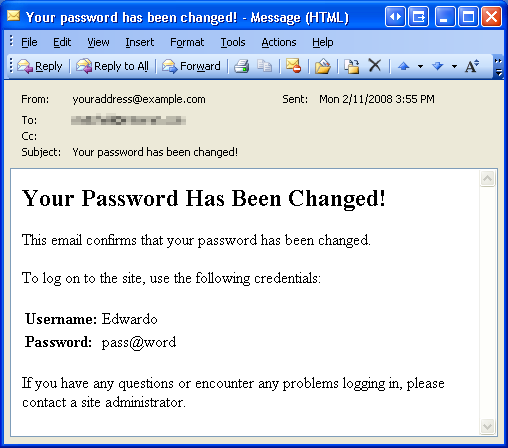

Figure 8: An Email Message Informs the User That Their Password has Changed (Click to view full-size image)

Step 3: Allowing Administrators to Change Users’ Passwords

A common feature in applications that support user accounts is the ability for an administrative user to change other users’ passwords. Sometimes this functionality is required because the system lacks the ability for users to change their own passwords. In such a case, the only way for a user to recover their forgotten password would be for the administrator to assign them a new password. With the PasswordRecovery and ChangePassword controls, however, administrative users need not busy themselves with changing users’ passwords, as users are capable of doing this themselves.

But what if your client insists that administrative users should be able to change other users’ passwords? Unfortunately, adding this functionality can be a bit of work. To change a user’s password, both the old and new password must be supplied to the MembershipUser object’s ChangePassword method, but an administrator shouldn’t have to know a user’s password in order to modify it.

One workaround is to first reset the user’s password and then change it to the new password using code like the following:

[!code-aspxMain]

   1:  MembershipUser usr = Membership.GetUser(username);

   2:  string resetPwd = usr.ResetPassword();

   3:  usr.ChangePassword(resetPwd, newPassword);

This code starts by retrieving information about username, which is the user whose password the administrator wishes to change. Next, the ResetPassword method is invoked, which assigns and the user a new, random password. This randomly-generated password is returned by the method and stored in the variable resetPwd. Now that we know the user’s password, we can change it via a call to ChangePassword.

The problem is that this code only works if the Membership system configuration is set such that RequiresQuestionAndAnswer is False. If RequiresQuestionAndAnswer is True, as it is with our application, then the ResetPassword method needs to be passed the security answer, otherwise it will throw an exception.

If the Membership framework is configured to require a security question and answer, and yet your client insists that administrators be able to change users’ passwords, you have three options:

Throw your hands in the air and tell your client that this is just one thing that cannot be done.
Set RequiresQuestionAndAnswer to False. This results in a less secure application. Imagine that a nefarious user has gained access to another user’s email inbox. Perhaps the compromised user has left their desk to go to lunch and didn’t lock their workstation, or maybe they accessed their email from a public terminal and didn’t sign out. In either case, the nefarious user can visit the RecoverPassword.aspx page and enter the user’s username. The system will then email the recovered password without prompting for the security answer.
Bypass the abstraction layer created by the Membership framework and work directly with the SQL Server database. The Membership schema includes a stored procedure named aspnet_Membership_SetPassword that sets a user’s password and does not require the security answer or old password in order to accomplish its task.

None of these options are particularly appealing, but that’s how the life of a developer goes sometimes.

I went ahead and implemented the third approach, writing code that bypasses the Membership and MembershipUser classes and operates directly against the SecurityTutorials database.

[!NOTE] By working directly with the database, the encapsulation provided by the Membership framework is shattered. This decision ties us to the SqlMembershipProvider, making our code less portable. Furthermore, this code may not work as expected in future versions of ASP.NET if the Membership schema changes. This approach is a workaround and, like most workarounds, is not an example of best practices.

The code has some unattractive bits and is quite lengthy. Therefore, I don’t want to clutter this tutorial with an in-depth examination of it. If you are interested in learning more, download the code for this tutorial and visit the ~/Administration/ManageUsers.aspx page. This page, which we created in the preceding tutorial, lists each user. I’ve updated the GridView to include a link to the UserInformation.aspx page, passing the selected user’s username through the querystring. The UserInformation.aspx page displays information about the selected user and TextBoxes for changing their password (see Figure 9).

After entering the new password, confirming it in the second TextBox, and clicking the Update User Button, a postback ensues and the aspnet_Membership_SetPassword stored procedure is invoked, updating the user’s password. I encourage those readers interested in this functionality to become more familiar with the code and try extending the functionality to include sending an email to the user whose password was changed.

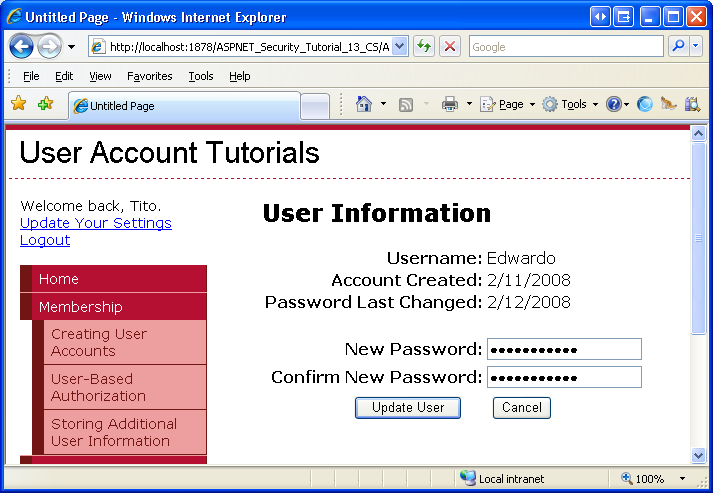

Figure 9: An Administrator May Change a User’s Password (Click to view full-size image)

[!NOTE] The UserInformation.aspx page currently only works if the Membership framework is configured to store passwords in Clear or Hashed format. It lacks the code to encrypt the new password, although you are invited to add this functionality. The way I recommend adding the necessary code is to use a decompiler like Reflector to examine the source code for methods in the .NET Framework; start by examining the SqlMembershipProvider class’s ChangePassword method. This is the technique I used to write the code for creating a hash of the password.

Summary

ASP.NET offers two controls to help users manage their password. The PasswordRecovery control is useful for those who have forgotten their passwords. Depending on the Membership framework’s configuration, the user is either emailed their existing password or a new, randomly-generated password. The ChangePassword control enables a user to update their password.

Like the Login and CreateUserWizard controls, the PasswordRecovery and ChangePassword controls render a rich user interface without having to write a lick of declarative markup or line of code. If the default user interface doesn’t meet your needs, you can customize it through a variety of style properties. Alternatively, the controls’ interfaces may be converted into templates, for an even finer degree of control. Behind the scenes these controls use the Membership API, invoking the MembershipUser object’s ResetPassword and ChangePassword methods.

Happy Programming!
